Cone Antennas
Biconical antennas are broadband omnidirectional antennas that are widely used in Electorate Support Measurement (ESM). Discone antenna is an omnidirectional, vertically polarized, exceptionally wideband antenna offering a frequency range ratio of 10:1.
Cone Antenna Catalog
Apps
| Antenna Designer | Design, visualize, and analyze antennas |
| Antenna Array Designer | Design, visualize, and analyze arrays |
Objects
bicone | Create biconical antenna |
discone | Create discone antenna |
monocone | Create monocone antenna on circular ground plane |
biconeStrip | Create stripped biconical antenna (Since R2020b) |
disconeStrip | Create stripped discone antenna (Since R2020b) |
Functions
show | Display antenna, array structures, shapes, or platform |
info | Display information about antenna, array, or platform |
coneangle2size | Calculates equivalent cone height, broad radius, and narrow radius |
design | Create antenna, array, or AI-based antenna resonating at specified frequency |
Featured Examples
Design and Analyze VHF/UHF Biconical Antenna for Testing Applications
Design and analyze a wire biconical antenna that can be used in various testing applications. Wire biconical antennas are used as a standard victim in any compliance test lab in a variety of testing applications such as immunity testing, emission testing, spectrum monitoring, and shielding effectiveness etc.

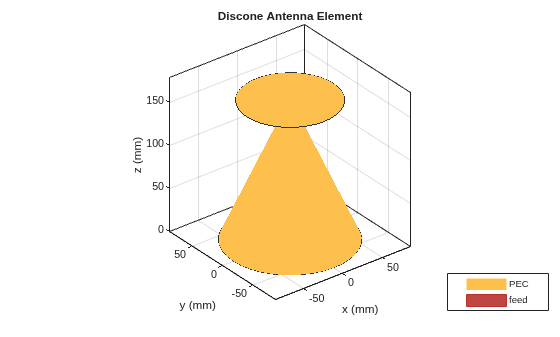

Discone Antenna for TV Broadcasting System
Discone antenna for TV broadcasting.
Design And Analyze Spherically Capped Biconical Antenna
Design spherically capped bicone antenna using 3-D modeling features and analyze its performance in 900 MHz to 15 GHz frequency range.
