csapi

Cubic spline interpolation

Description

example

Note

For a simpler but less flexible method to interpolate cubic splines, try the Curve Fitting app or the fit function and see About Smoothing Splines.

pp=csapi(x,y) returns the ppform of a cubic spline s with knot sequence x that takes the values y(:,j) at x(j) for j=1:length(x). The values y(:,j) can be scalars, vectors, matrices, and ND-arrays. The function averages the data points with the same data site and then sorts them by their sites. With x the resulting sorted data sites, the spline s satisfies the not-a-knot end conditions, such as

jumpx(2)Ds3=0=jumpx(end1)D3(s)

where D3s is the third derivative of s.

If x is a cell array of sequences x1, ..., xm of lengths n1, ..., nm, then y is an array of size [n1,...,nm] (or of size [d,n1,...,nm] if the interpolant is d-valued). In that case, pp is the ppform of an m-cubic spline interpolant s to such data. In particular,

s(x(i1),,x(im))=y(:,i1,,im)

with i1=1:nl and im=1:nm.

To perform operations on this interpolating cubic spline, such as evaluation, differentiation, plotting, use the pp structure. For more information, see the fnval, fnder, fnplt functions.

example

values = csapi(x,y,xx) returns the values of the smoothing spline evaluated at the points xx. This syntax is the same as fnval(csapi(x,y),xx).

This command is essentially the MATLAB® function spline, which, in turn, is a stripped-down version of the Fortran routine CUBSPL in PGS, except that csapi (and now also spline) accepts vector-valued data and can handle gridded data.

Examples

collapse all

This example shows how to use the csapi command from Curve Fitting Toolbox™ to construct cubic spline interpolants.

Interpolant to Two Points

The command

values = csapi(x,y,xx)

returns the values at xx of the cubic spline interpolant to the given data (x,y), using the not-a-knot end condition. This interpolant is a piecewise cubic function with break sequence x, whose cubic pieces join together to form a function with two continuous derivatives. The "not-a-knot" end condition means that, at the first and last interior break, even the third derivative is continuous (up to round-off error).

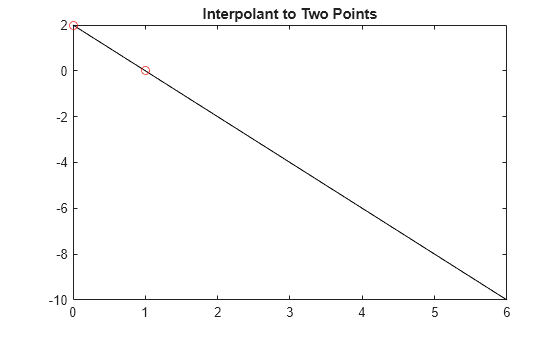

Specifying only two data points results in a straight line interpolant.

x = [0 1];
y = [2 0];
xx = linspace(0,6,121);
plot(xx,csapi(x,y,xx),'k-',x,y,'ro')
title('Interpolant to Two Points')

Interpolant to Three Points

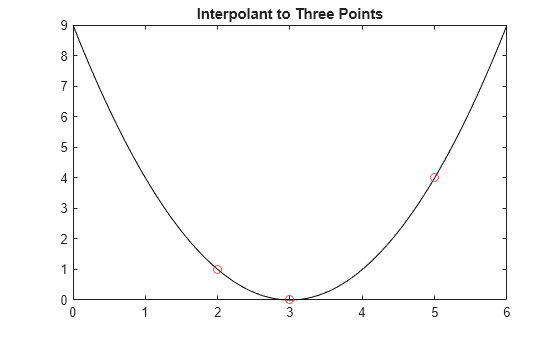

If you specify three data points, the function outputs a parabola.

x = [2 3 5];
y = [1 0 4];
plot(xx,csapi(x,y,xx),'k-',x,y,'ro')
title('Interpolant to Three Points')

Interpolant to Five Points

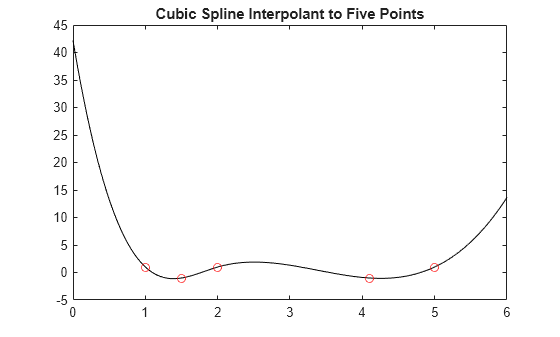

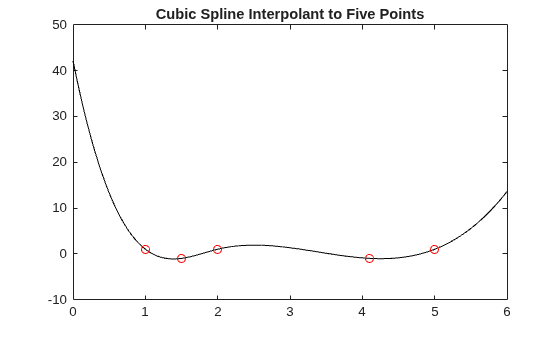

More generally, if you specify four or five data points, the function outputs a cubic spline.

x = [1 1.5 2 4.1 5];
y = [1 -1 1 -1 1];
plot(xx,csapi(x,y,xx),'k-',x,y,'ro')
title('Cubic Spline Interpolant to Five Points')

Up to rounding errors, and assuming that x is a vector with at least four entries, the statement pp = csapi(x,y) put the same spline into pp as does the statement:

pp = fn2fm(spapi(augknt(x([1 3:(end-2) end]),4),x,y),'pp');

except that the description of the spline obtained this second way will not use break at x(2) and x(n-1).

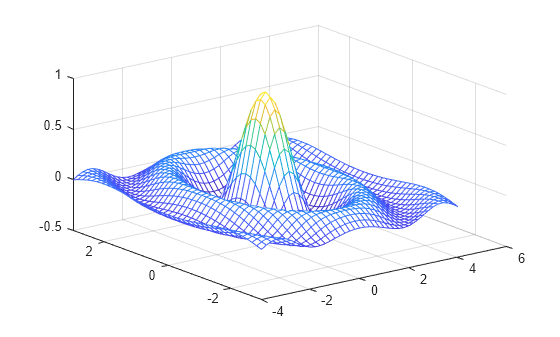

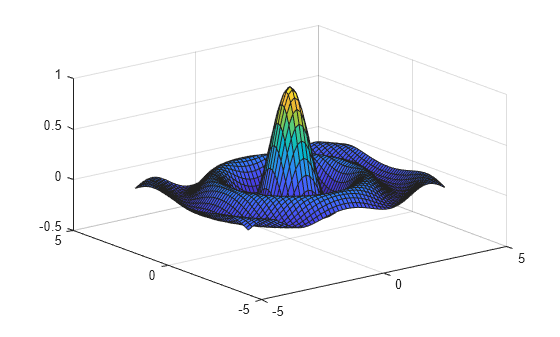

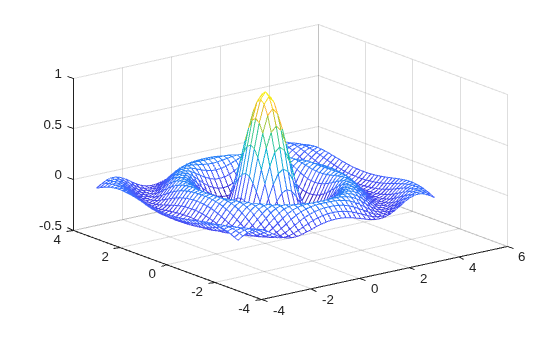

As a simple bivariate example, plot a bicubic spline interpolant to the Mexican Hat function:

x =.0001+[-4:.2:4];
y = -3:.2:3;
[yy,xx] = meshgrid(y,x);
r = pi*sqrt(xx.^2+yy.^2);
z = sin(r)./r;
bcs = csapi( {x,y}, z );
fnplt( bcs )
axis([-5 5 -5 5 -.5 1])

Since MATLAB® considers the entry z(i,j) as the value at (x(j),y(i)), the code reverses x and y in the call to meshgrid. The Curve Fitting Toolbox® instead follows the Approximation Theory standard whereas z(i,j) is the value at (x(i),y(j)).

For this reason, you have to be cautious when you are plotting values of such a bivariate spline with the aid of the MATLAB mesh function, as shown here:

xf = linspace(x(1),x(end),41);
yf = linspace(y(1),y(end),41);
mesh(xf, yf, fnval( bcs, {xf, yf}).')

Note the use of the transpose of the matrix of values obtained from fnval.

Input Arguments

collapse all

Data sites of data values y to be fit, specified as a vector or as a cell array for multivariate data. Spline f is created with knots at each data site x such that f(x(j)) = y(:,j) for all values of j.

For multivariate, gridded data, you can specify x as a cell array that specifies the data site in each variable dimension: f(x1(i),x2(j),...xn(k)) = y(:,i,j,...,k).

Data Types: single | double

Data values to fit during creation of the spline, specified as a vector, matrix, or array. Data values y(:,j) can be scalars, matrices, or n-dimensional arrays. Data values given at the same data site x are averaged.

Data Types: single | double

Evaluation points over which the spline is evaluated, specified as a vector or as a cell array of vectors for multivariate data. Spline evaluation is performed using fnval.

Data Types: single | double

Output Arguments

collapse all

Spline in ppform, returned as a structure with these fields. For more information on ppform, see The ppform.

Form of the spline, returned as pp. pp indicates that the spline is given in piecewise polynomial form.

Knot positions of the spline, returned as a vector or as a cell array of vectors for multivariate data. Vectors contain strictly increasing elements that represent the start and end of each of the intervals over which the polynomial pieces are defined.

Coefficients of polynomials for each piece, returned as a matrix or as an array for multivariate data.

Number of polynomial pieces describing the spline, returned as a scalar or as a vector of numbers of pieces in each variable for multivariate data.

Order of the polynomial function describing each polynomial piece of the spline, returned as a scalar or as a vector containing the order in each variable for multivariate data.

Dimensionality of the target function, returned as a scalar.

Evaluated spline, returned as a vector or as a matrix or array for multivariate data. The spline is evaluated at the given evaluation points xx.

Algorithms

csapi is an implementation of the Fortran routine CUBSPL from PGS.

The algorithm constructs and solves the relevant tridiagonal linear system using the MATLAB sparse matrix capability.

The algorithm also uses the not-a-knot end condition, forcing the first and second polynomial piece of the interpolant to coincide, as well as the second-to-last and the last polynomial piece.

Introduced in R2006b
