Train Network on Image and Feature Data

This example shows how to train a network that classifies handwritten digits using both image and feature input data.

Load Training Data

Load the digits images XTrain, labels YTrain, and clockwise rotation angles anglesTrain. Create an arrayDatastore object for the images, labels, and angles, and then use the combine function to make a single datastore that contains all of the training data. Extract the class names and the height, width, number of channels, and number of nondiscrete responses.

[XTrain,YTrain,anglesTrain] = digitTrain4DArrayData;

dsXTrain = arrayDatastore(XTrain,'IterationDimension',4);
dsAnglesTrain = arrayDatastore(anglesTrain);
dsYTrain = arrayDatastore(YTrain);

dsTrain = combine(dsXTrain,dsAnglesTrain,dsYTrain);

classes = categories(YTrain);
[h,w,c,numObservations] = size(XTrain);

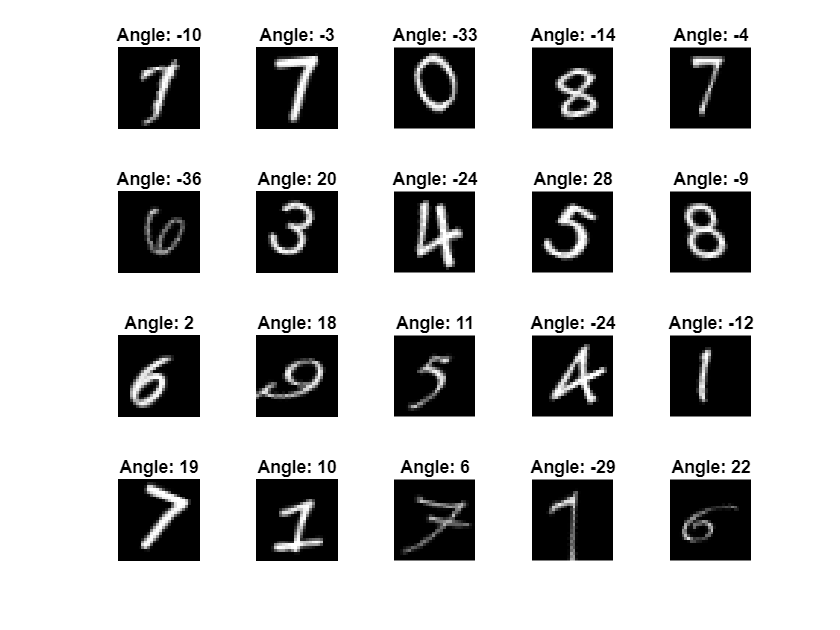

Display 20 random training images.

numTrainImages = numel(YTrain);
figure
idx = randperm(numTrainImages,20);
for i = 1:numel(idx)
    subplot(4,5,i)
    imshow(XTrain(:,:,:,idx(i)))
    title("Angle: " + anglesTrain(idx(i)))
end

Define Network

Define the size of the input image, the number of features of each observation, the number of classes, and the size and number of filters of the convolution layer.

imageInputSize = [h w c];
numFeatures = 1;
numClasses = numel(classes);
filterSize = 5;
numFilters = 16;

To create a network with two input layers, you must define the network in two parts and join them, for example, by using a concatenation layer.

Define the first part of the network. Define the image classification layers and include a concatenation layer before the last fully connected layer.

layers = [
    imageInputLayer(imageInputSize,'Normalization','none','Name','images')
    convolution2dLayer(filterSize,numFilters,'Name','conv')
    reluLayer('Name','relu')
    fullyConnectedLayer(50,'Name','fc1')
    concatenationLayer(1,2,'Name','concat')
    fullyConnectedLayer(numClasses,'Name','fc2')
    softmaxLayer('Name','softmax')];

Convert the layers to a layer graph.

lgraph = layerGraph(layers);

For the second part of the network, add a feature input layer and connect it to the second input of the concatenation layer.

featInput = featureInputLayer(numFeatures,'Name','features');
lgraph = addLayers(lgraph, featInput);
lgraph = connectLayers(lgraph, 'features', 'concat/in2');

Visualize the network.

figure
plot(lgraph)

Create a dlnetwork object.

dlnet = dlnetwork(lgraph);

When you use the functions predict and forward on a dlnetwork object, the input arguments must match the order given by the InputNames property of the dlnetwork object. Inspect the name and order of the input layers.

dlnet.InputNames
ans = 1×2 cell
    {'images'}    {'features'}

Define Model Gradients Function

The modelGradients function, listed in the Model Gradients Function section of the example, takes as input a dlnetwork object dlnet, a mini-batch of input image data dlX1, a mini-batch of input feature data dlX2, and the corresponding labels dlY, and returns the gradients of the loss with respect to the learnable parameters in dlnet, the network state, and the loss.

Specify Training Options

Train with a mini-batch size of 128 for 15 epochs.

numEpochs = 15;
miniBatchSize = 128;

Specify the options for SGDM optimization. Specify an initial learning rate of 0.01 with a decay of 0.01, and momentum of 0.9.

learnRate = 0.01;
decay = 0.01;
momentum = 0.9;

To monitor the training progress, you can plot the training loss after each iteration. Create the variable plots that contains "training-progress". If you do not want to plot the training progress, then set this value to "none".

plots = "training-progress";

Train Model

Train the model using a custom training loop. Initialize the velocity parameter for the SGDM solver.

velocity = [];

Use minibatchqueue to process and manage mini-batches of images during training. For each mini-batch:

  • Use the custom mini-batch preprocessing function preprocessData (defined at the end of this example) to one-hot encode the class labels.

  • By default, the minibatchqueue object converts the data to dlarray objects with underlying type single. Format the images with the dimension labels 'SSCB' (spatial, spatial, channel, batch), and the angles with the dimension labels 'CB' (channel, batch). Do not add a format to the class labels.

  • Train on a GPU if one is available. By default, the minibatchqueue object converts each output to a gpuArray if a GPU is available. Using a GPU requires Parallel Computing Toolbox™ and a supported GPU device. For information on supported devices, see GPU Support by Release (Parallel Computing Toolbox).

mbq = minibatchqueue(dsTrain,...
    'MiniBatchSize',miniBatchSize,...
    'MiniBatchFcn', @preprocessMiniBatch,...
    'MiniBatchFormat',{'SSCB','CB',''});

For each epoch, shuffle the data and loop over mini-batches of data. At the end of each epoch, display the training progress. For each mini-batch:

  • Evaluate the model gradients, state, and loss using dlfeval and the modelGradients function and update the network state.

  • Update the network parameters using the sgdmupdate function.

Initialize the training progress plot.

if plots == "training-progress"
    figure
    lineLossTrain = animatedline('Color',[0.85 0.325 0.098]);
    ylim([0 inf])
    xlabel("Iteration")
    ylabel("Loss")
    grid on
end

Train the model.

iteration = 0;
start = tic;

% Loop over epochs.
for epoch = 1:numEpochs

    % Shuffle data.
    shuffle(mbq)

    % Loop over mini-batches.
    while hasdata(mbq)

        iteration = iteration + 1;

        % Read mini-batch of data.
        [dlX1,dlX2,dlY] = next(mbq);

        % Evaluate the model gradients, state, and loss using dlfeval and the
        % modelGradients function and update the network state.
        [gradients,state,loss] = dlfeval(@modelGradients,dlnet,dlX1,dlX2,dlY);
        dlnet.State = state;

        % Update the network parameters using the SGDM optimizer.
        [dlnet, velocity] = sgdmupdate(dlnet, gradients, velocity, learnRate, momentum);

        if plots == "training-progress"
            % Display the training progress.
            D = duration(0,0,toc(start),'Format','hh:mm:ss');
            %completionPercentage = round(iteration/numIterations*100,0);
            title("Epoch: " + epoch + ", Elapsed: " + string(D));
            addpoints(lineLossTrain,iteration,double(gather(extractdata(loss))))
            drawnow
        end
    end
end

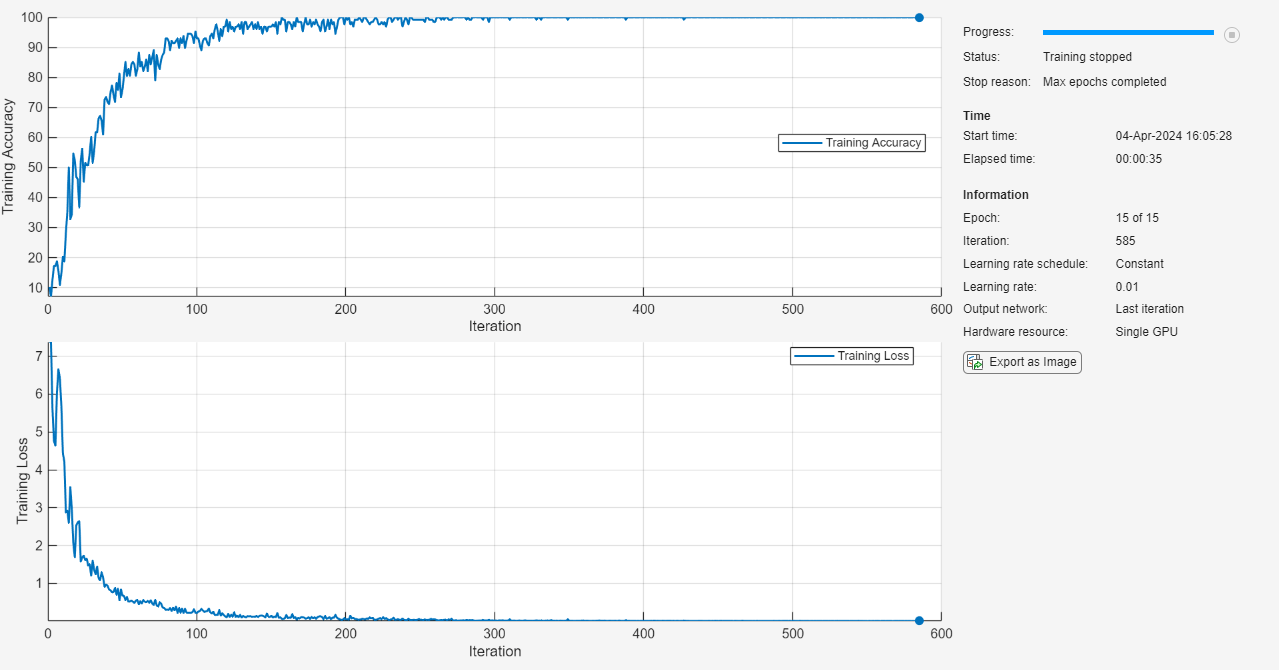

Test Model

Test the classification accuracy of the model by comparing the predictions on a test set with the true labels. Test the classification accuracy of the model by comparing the predictions on a test set with the true labels and angles. Manage the test data set using a minibatchqueue object with the same setting as the training data.

[XTest,YTest,anglesTest] = digitTest4DArrayData;

dsXTest = arrayDatastore(XTest,'IterationDimension',4);
dsAnglesTest = arrayDatastore(anglesTest);
dsYTest = arrayDatastore(YTest);

dsTest = combine(dsXTest,dsAnglesTest,dsYTest);

mbqTest = minibatchqueue(dsTest,...
    'MiniBatchSize',miniBatchSize,...
    'MiniBatchFcn', @preprocessMiniBatch,...
    'MiniBatchFormat',{'SSCB','CB',''});

Loop over the mini-batches and classify the images using modelPredictions function, listed at the end of the example.

[predictions,predCorr] = modelPredictions(dlnet,mbqTest,classes);

Evaluate the classification accuracy.

accuracy = mean(predCorr)
accuracy = 0.9818

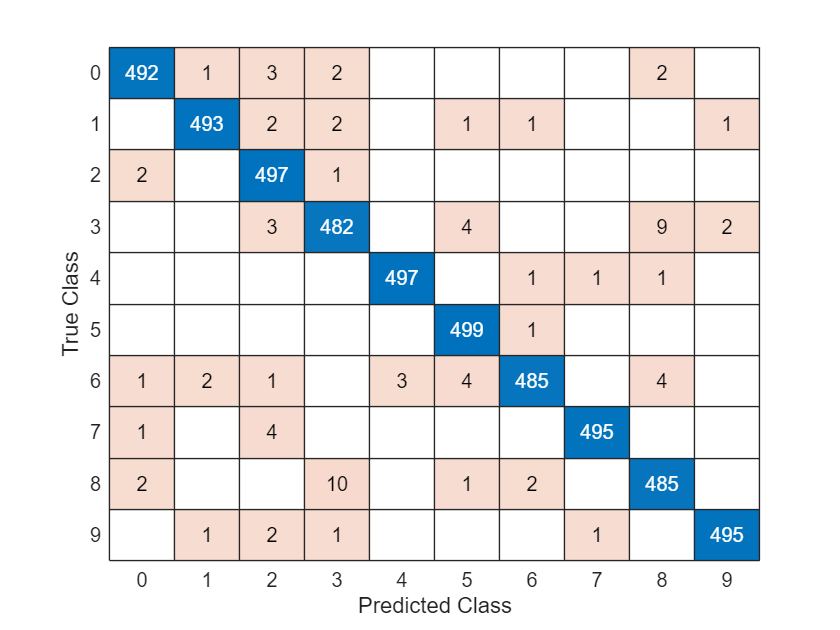

View some of the images with their predictions.

idx = randperm(size(XTest,4),9);
figure
for i = 1:9
    subplot(3,3,i)
    I = XTest(:,:,:,idx(i));
    imshow(I)

    label = string(predictions(idx(i)));
    title("Predicted Label: " + label)
end

Model Gradients Function

The modelGradients function takes as input a dlnetwork object dlnet, a mini-batch of input image data dlX1, a mini-batch of input feature data dlX2, and corresponding labels Y, and returns the gradients of the loss with respect to the learnable parameters in dlnet, the network state, and the loss. To compute the gradients automatically, use the dlgradient function.

When you use the forward function on a dlnetwork object, the input arguments must match the order given by the InputNames property of the dlnetwork object.

function [gradients,state,loss] = modelGradients(dlnet,dlX1,dlX2,Y)

[dlYPred,state] = forward(dlnet,dlX1,dlX2);

loss = crossentropy(dlYPred,Y);
gradients = dlgradient(loss,dlnet.Learnables);

end

Model Predictions Function

The modelPredictions function takes as input a dlnetwork object dlnet, a minibatchqueue of input data mbq, and the network classes, and computes the model predictions by iterating over all data in the minibatchqueue object. The function uses the onehotdecode function to find the predicted class with the highest score and then compares the prediction with the true label. The function returns the predictions and a vector of ones and zeros that represents correct and incorrect predictions.

function [classesPredictions,classCorr] = modelPredictions(dlnet,mbq,classes)

    classesPredictions = [];
    classCorr = [];

    while hasdata(mbq)
        [dlX1,dlX2,dlY] = next(mbq);

        % Make predictions using the model function.
        dlYPred = predict(dlnet,dlX1,dlX2);

        % Determine predicted classes.
        YPredBatch = onehotdecode(dlYPred,classes,1);
        classesPredictions = [classesPredictions YPredBatch];

        % Compare predicted and true classes.
        Y = onehotdecode(dlY,classes,1);
        classCorr = [classCorr YPredBatch == Y];

    end

end

Mini-Batch Preprocessing Function

The preprocessMiniBatch function preprocesses the data using the following steps:

  1. Extract the image data from the incoming cell array and concatenate into a numeric array. Concatenating the image data over the fourth dimension adds a third dimension to each image, to be used as a singleton channel dimension.

  2. Extract the label and angle data from the incoming cell arrays and concatenate along the second dimension into a categorical array and a numeric array, respectively.

  3. One-hot encode the categorical labels into numeric arrays. Encoding into the first dimension produces an encoded array that matches the shape of the network output.

function [X,angle,Y] = preprocessMiniBatch(XCell,angleCell,YCell)

    % Extract image data from cell and concatenate.
    X = cat(4,XCell{:});
    % Extract angle data from cell and concatenate.
    angle = cat(2,angleCell{:});
    % Extract label data from cell and concatenate.
    Y = cat(2,YCell{:});

    % One-hot encode labels.
    Y = onehotencode(Y,1);

end
