The moving objects and blocks compute the moving statistics of streaming signals using one or both of the sliding window method and exponential weighting method. The sliding window method has a finite impulse response, while the exponential weighting method has an infinite impulse response. To analyze a statistic over a finite duration of data, use the sliding window method. The exponential weighting method requires fewer coefficients and is more suitable for embedded applications.

Object, Block | Sliding Window Method | Exponential Weighting Method |
---|---|---|

`dsp.MedianFilter` , Median Filter | ✓ | |

`dsp.MovingAverage` , Moving Average | ✓ | ✓ |

`dsp.MovingMaximum` , Moving Maximum | ✓ | |

`dsp.MovingMinimum` , Moving Minimum | ✓ | |

`dsp.MovingRMS` , Moving RMS | ✓ | ✓ |

`dsp.MovingStandardDeviation` , Moving Standard Deviation | ✓ | ✓ |

`dsp.MovingVariance` , Moving Variance | ✓ | ✓ |

In the sliding window method, a window of specified length, *Len*,
moves over the data, sample by sample, and the statistic is computed
over the data in the window. The output for each input sample is the
statistic over the window of the current sample and the *Len* -
1 previous samples. In the first-time step, to
compute the first *Len* - 1 outputs
when the window does not have enough data yet, the algorithm fills
the window with zeros. In the subsequent time steps, to fill the window,
the algorithm uses samples from the previous data frame. The moving
statistic algorithms have a state and remember the previous data.

Consider an example of computing the moving average of a streaming input data using the sliding window method. The algorithm uses a window length of 4. With each input sample that comes in, the window of length 4 moves along the data.

The window is of finite length, making the algorithm a finite impulse response filter. To analyze a statistic over a finite duration of data, use the sliding window method.

**Effect of Window Length**

The window length defines the length of the data over which the algorithm computes the statistic. The window moves as the new data comes in. If the window is large, the statistic computed is closer to the stationary statistic of the data. For data that does not change rapidly, use a long window to get a smoother statistic. For data that changes fast, use a smaller window.

The exponential weighting method has an infinite impulse response. The algorithm computes a set of weights, and applies these weights to the data samples recursively. As the age of the data increases, the magnitude of the weighting factor decreases exponentially and never reaches zero. In other words, the recent data has more influence on the statistic at the current sample than the older data. Due to the infinite impulse response, the algorithm requires fewer coefficients, making it more suitable for embedded applications.

The value of the forgetting factor determines the rate of change of the weighting factors. A forgetting factor of 0.9 gives more weight to the older data than does a forgetting factor of 0.1. To give more weight to the recent data, move the forgetting factor closer to 0. For detecting small shifts in rapidly varying data, a smaller value (below 0.5) is more suitable. A forgetting factor of 1.0 indicates infinite memory. All the previous samples are given an equal weight. The optimal value for the forgetting factor depends on the data stream. For a given data stream, to compute the optimal value for forgetting factor, see [1].

Consider an example of computing the moving average using the exponential weighting method. The forgetting factor is 0.9.

The moving average algorithm updates the weight and computes the moving average recursively for each data sample that comes in by using the following recursive equations.

$$\begin{array}{l}{w}_{N,\lambda}=\lambda {w}_{N-1,\lambda}+1\\ {\overline{x}}_{N,\lambda}=\left(1-\frac{1}{{w}_{N,\lambda}}\right){\overline{x}}_{N-1,\lambda}+\left(\frac{1}{{w}_{N,\lambda}}\right){x}_{N}\end{array}$$

λ — Forgetting factor.

$${w}_{N,\lambda}$$ — Weighting factor applied to the current data sample.

$${x}_{N}$$ — Current data input sample.

$${\overline{x}}_{N-1,\lambda}$$ — Moving average at the previous sample.

$$\left(1-\frac{1}{{w}_{N,\lambda}}\right){\overline{x}}_{N-1,\lambda}$$ — Effect of the previous data on the average.

$${\overline{x}}_{N,\lambda}$$ — Moving average at the current sample.

Data | Weight$${w}_{N,\lambda}=\lambda {w}_{N-1,\lambda}+1$$ | Average$${\overline{x}}_{N,\lambda}=\left(1-\frac{1}{{w}_{N,\lambda}}\right){\overline{x}}_{N-1,\lambda}+\left(\frac{1}{{w}_{N,\lambda}}\right){x}_{N}$$ |
---|---|---|

Frame
1 | ||

2 | 1. For N = 1, this value is 1. | 2 |

3 | 0.9×1+1 = 1.9 | (1–(1/1.9))×2+(1/1.9)×3 = 2.5263 |

4 | 0.9×1.9+1 = 2.71 | (1–(1/2.71))×2.52+(1/2.71)×4 = 3.0701 |

5 | 0.9×2.71+1 = 3.439 | (1–(1/3.439))×3.07+(1/3.439)×5 = 3.6313 |

Frame
2 | ||

6 | 0.9×3.439+1 = 4.095 | (1–(1/4.095))×3.6313+(1/4.095)×6 = 4.2097 |

7 | 0.9×4.095+1 = 4.6855 | (1–(1/4.6855))×4.2097+(1/4.6855)×7 = 4.8052 |

8 | 0.9×4.6855+1 = 5.217 | (1–(1/5.217))×4.8052+(1/5.217)×8 = 5.4176 |

9 | 0.9×5.217+1 = 5.6953 | (1–(1/5.6953))×5.4176+(1/5.6953)×9 = 6.0466 |

Frame
3 | ||

3 | 0.9×5.6953+1 = 6.1258 | (1–(1/6.1258))×6.0466+(1/6.1258)×3 = 5.5493 |

4 | 0.9×6.1258+1 = 6.5132 | (1–(1/6.5132))×5.5493+(1/6.5132)×4 = 5.3114 |

6 | 0.9×6.5132+1 = 6.8619 | (1–(1/6.8619))×5.3114+(1/6.8619)×6 = 5.4117 |

8 | 0.9×6.8619+1 = 7.1751 | (1–(1/7.1751))×5.4117+(1/7.1751)×8 = 5.7724 |

The moving average algorithm has a state and remembers the data from the previous time step.

For the first sample, when *N* = 1, the algorithm
chooses $${w}_{N,\lambda}$$ = 1. For the next
sample, the weighting factor is updated and the average is computed
using the recursive equations.

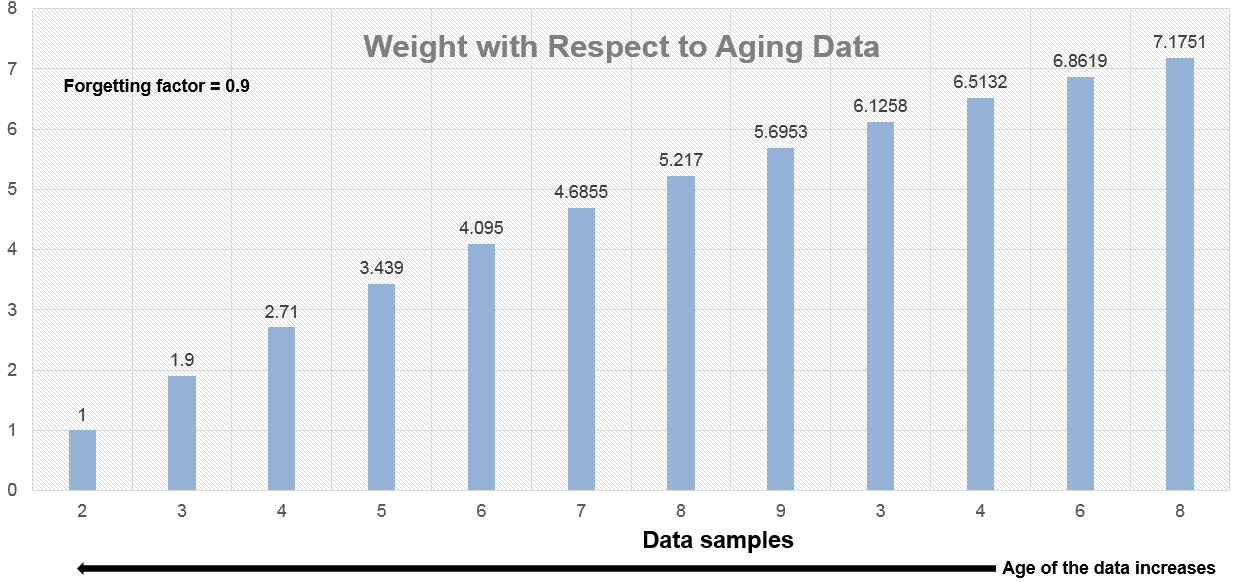

As the age of the data increases, the magnitude of the weighting factor decreases exponentially and never reaches zero. In other words, the recent data has more influence on the current average than the older data.

When the forgetting factor is 0.5, the weights applied to the older data are lower than when the forgetting factor is 0.9.

When the forgetting factor is 1, all the data samples are weighed equally. In this case, the exponentially weighted method is the same as the sliding window method with an infinite window length.

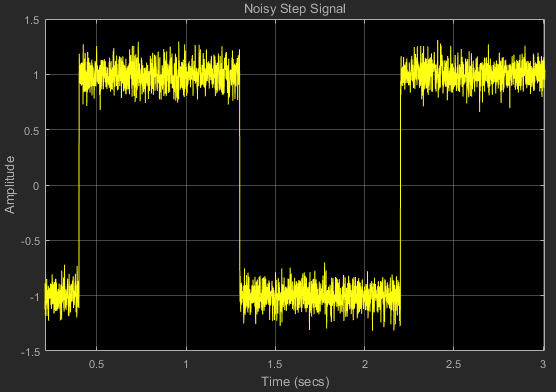

When the signal changes rapidly, use a lower forgetting factor. When the forgetting factor is low, the effect of the past data is lesser on the current average. This makes the transient sharper. As an example, consider a rapidly varying noisy step signal.

Compute the moving average of this signal using the exponentially weighted method. Compare the performance of the algorithm with forgetting factors 0.8, 0.9, and 0.99.

When you zoom in on the plot, you can see that the transient in the moving average is sharp when the forgetting factor is low. This makes it more suitable for data that changes rapidly.

For more information on the moving average algorithm, see the **Algorithms** section in the `dsp.MovingAverage`

System object™ or
the Moving Average block page.

For more information on other moving statistic algorithms, see
the **Algorithms** section in the respective System object and
block pages.
