This example shows how to use `arima`

to specify a multiplicative seasonal ARIMA model (for monthly data) with no constant term.

Specify a multiplicative seasonal ARIMA model with no constant term,

$$(1-{\varphi}_{1}L)(1-{\Phi}_{12}{L}^{12})(1-L{)}^{1}(1-{L}^{12}){y}_{t}=(1+{\theta}_{1}L)(1+{\Theta}_{12}{L}^{12}){\epsilon}_{t},$$

where the innovation distribution is Gaussian with constant variance. Here, $$(1-L{)}^{1}$$ is the first degree nonseasonal differencing operator and $$(1-{L}^{12})$$ is the first degree seasonal differencing operator with periodicity 12.

model = arima('Constant',0,'ARLags',1,'SARLags',12,'D',1,... 'Seasonality',12,'MALags',1,'SMALags',12)

model = arima with properties: Description: "ARIMA(1,1,1) Model Seasonally Integrated with Seasonal AR(12) and MA(12) (Gaussian Distribution)" Distribution: Name = "Gaussian" P: 26 D: 1 Q: 13 Constant: 0 AR: {NaN} at lag [1] SAR: {NaN} at lag [12] MA: {NaN} at lag [1] SMA: {NaN} at lag [12] Seasonality: 12 Beta: [1×0] Variance: NaN

The name-value pair argument `ARLags`

specifies the lag corresponding to the nonseasonal AR coefficient, $${\varphi}_{1}$$. `SARLags`

specifies the lag corresponding to the seasonal AR coefficient, here at lag 12. The nonseasonal and seasonal MA coefficients are specified similarly. `D`

specifies the degree of nonseasonal integration. `Seasonality`

specifies the periodicity of the time series, for example `Seasonality`

= 12 indicates monthly data. Since `Seasonality`

is greater than 0, the degree of seasonal integration $${D}_{s}$$ is one.

Whenever you include seasonal AR or MA polynomials (signaled by specifying `SAR`

or `SMA`

) in the model specification, `arima`

incorporates them multiplicatively. `arima`

sets the property `P`

equal to *p* + *D* + $${p}_{s}$$ + *s* (here, 1 + 1 + 12 + 12 = 26). Similarly, `arima`

sets the property `Q`

equal to *q* + $${q}_{s}$$ (here, 1 + 12 = 13).

Display the value of `SAR`

:

model.SAR

`ans = `*1x12 cell array*
Columns 1 through 8
{[0]} {[0]} {[0]} {[0]} {[0]} {[0]} {[0]} {[0]}
Columns 9 through 12
{[0]} {[0]} {[0]} {[NaN]}

The `SAR`

cell array returns 12 elements, as specified by `SARLags`

. `arima`

sets the coefficients at interim lags equal to zero to maintain consistency with MATLAB® cell array indexing. Therefore, the only nonzero coefficient corresponds to lag 12.

All of the other elements in `model`

have value `NaN`

, indicating that these coefficients need to be estimated or otherwise specified by the user.

This example shows how to specify a multiplicative seasonal ARIMA model (for quarterly data) with known parameter values. You can use such a fully specified model as an input to `simulate`

or `forecast`

.

Specify the multiplicative seasonal ARIMA model

$$(1-.5L)(1+0.7{L}^{4})(1-L{)}^{1}(1-{L}^{4}){y}_{t}=(1+.3L)(1-.2{L}^{4}){\epsilon}_{t},$$

where the innovation distribution is Gaussian with constant variance 0.15. Here, $$(1-L{)}^{1}$$ is the nonseasonal differencing operator and $$(1-{L}^{4})$$ is the first degree seasonal differencing operator with periodicity 4.

model = arima('Constant',0,'AR',{0.5},'SAR',-0.7,'SARLags',... 4,'D',1,'Seasonality',4,'MA',0.3,'SMA',-0.2,... 'SMALags',4,'Variance',0.15)

model = arima with properties: Description: "ARIMA(1,1,1) Model Seasonally Integrated with Seasonal AR(4) and MA(4) (Gaussian Distribution)" Distribution: Name = "Gaussian" P: 10 D: 1 Q: 5 Constant: 0 AR: {0.5} at lag [1] SAR: {-0.7} at lag [4] MA: {0.3} at lag [1] SMA: {-0.2} at lag [4] Seasonality: 4 Beta: [1×0] Variance: 0.15

The output specifies the nonseasonal and seasonal AR coefficients with opposite signs compared to the lag polynomials. This is consistent with the difference equation form of the model. The output specifies the lags of the seasonal AR and MA coefficients using `SARLags`

and `SMALags`

, respectively. `D`

specifies the degree of nonseasonal integration. `Seasonality`

= 4 specifies quarterly data with one degree of seasonal integration.

All of the parameters in the model have a value. Therefore, the model does not contain any `NaN`

values. The functions `simulate`

and `forecast`

*do not* accept input models with `NaN`

values.

In the **Econometric
Modeler** app, you can specify the lag structure, presence of a constant,
and innovation distribution of a
SARIMA(*p*,*D*,*q*)×(*p _{s}*,

At the command line, open the

**Econometric Modeler**app.econometricModeler

Alternatively, open the app from the apps gallery (see

**Econometric Modeler**).In the

**Data Browser**, select the response time series to which the model will be fit.On the

**Econometric Modeler**tab, in the**Models**section, click the arrow to display the models gallery.In the

**ARMA/ARIMA Models**section of the gallery, click**SARIMA**. To create SARIMAX models, see ARIMAX Model Specifications.The

**SARIMA Model Parameters**dialog box appears.Specify the lag structure. Use the

**Lag Order**tab to specify a SARIMA(*p*,*D*,*q*)×(*p*,_{s}*D*,_{s}*q*)_{s}model that includes:_{s}All consecutive lags from 1 through their respective orders, in the nonseasonal polynomials

Lags that are all consecutive multiples of the period (

*s*), in the seasonal polynomialsAn

*s*-degree seasonal integration polynomial

Use the

**Lag Vector**tab for the flexibility to specify particular lags for all polynomials. For more details, see Specifying Lag Operator Polynomials Interactively. Regardless of the tab you use, you can verify the model form by inspecting the equation in the**Model Equation**section.

For example, consider this SARIMA(2,1,1)×(2,1,1)_{12} model.

$$\left(1-{\varphi}_{1}L-{\varphi}_{2}{L}^{2}\right)\left(1-{\Phi}_{12}{L}^{12}-{\Phi}_{24}{L}^{24}\right)(1-L)(1-{L}^{12}){y}_{t}=c+\left(1+{\theta}_{1}L\right)\left(1+{\Theta}_{12}{L}^{12}\right){\epsilon}_{t},$$

where *ε _{t}* is a series of
IID Gaussian innovations.

The model includes all consecutive AR and MA lags from 1 through their respective
orders. Also, the lags of the SAR and SMA polynomials are consecutive multiples of
the period from 12 through their respective specified order times 12. Therefore, use
the **Lag Order** tab to specify the model.

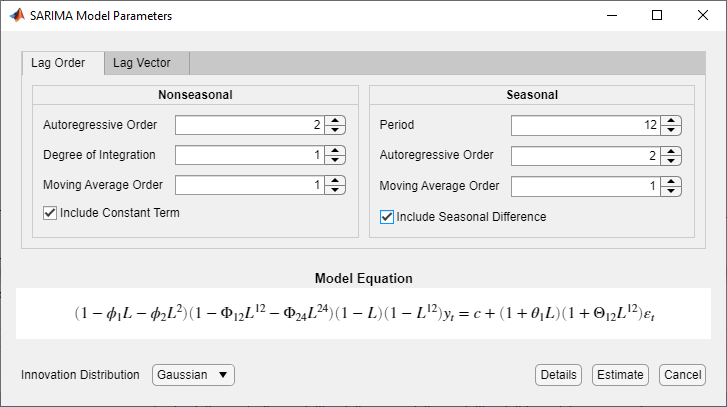

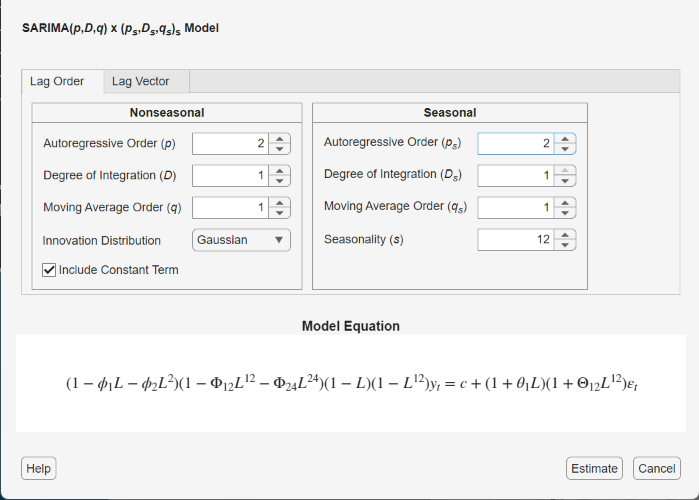

In the

**Nonseasonal**section:Set

**Degree of Integration**to`1`

.Set

**Autoregressive Order**to`2`

.Set

**Moving Average Order**to`1`

.

In the

**Seasonal**section:Set

**Period**to`12`

.Set

**Autoregressive Order**to`2`

. This input specifies the inclusion of SAR lags 12 and 24 (that is, the first and second multiples of the value of**Period**).Set

**Moving Average Order**to`1`

. This input specifies the inclusion of SMA lag 12 (that is, the first multiple of the value of**Period**).Select the

**Include Seasonal Difference**check box.

Verify that the equation in the

**Model Equation**section matches your model.

To exclude a constant from the model and to specify that the innovations are Gaussian, follow the previous steps, and clear the

**Include Constant Term**check box.To specify

*t*-distributed innovations, follow the previous steps, and click the**Innovation Distribution**button, then select`t`

.

For another example, consider this
SARIMA(12,1,1)×(2,1,1)_{12} model.

$$\left(1-{\varphi}_{1}L-{\varphi}_{12}{L}^{12}\right)\left(1-{\Phi}_{24}{L}^{24}\right)(1-L)(1-{L}^{12}){y}_{t}=c+\left(1+{\theta}_{1}L\right)\left(1+{\Theta}_{12}{L}^{12}\right){\epsilon}_{t}.$$

The model does not include consecutive AR lags, and the lags of
the SAR polynomial are not consecutive multiples of the period. Therefore, use the
**Lag Vector** tab to specify this model:

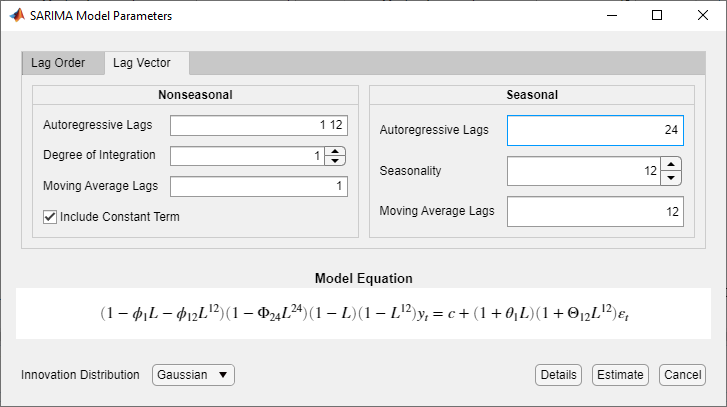

In the

**SARIMA Model Parameters**dialog box, click the**Lag Vector**tab.In the

**Nonseasonal**section:Set

**Degree of Integration**to`1`

.Set

**Autoregressive Lags**to`1 12`

.Set

**Moving Average Lags**to`1`

.

In the

**Seasonal**section:Set

**Seasonality**to`12`

. The app includes a 12-degree seasonal integration polynomial.Set

**Autoregressive Lags**to`24`

. This input specifies the inclusion of SAR lag 24. The input is independent of the value in the**Seasonality**box.Set

**Moving Average Lags**to`12`

. This input specifies the inclusion of SMA lag 12. The input is independent of the value in the**Seasonality**box.

Verify that the equation in the

**Model Equation**section matches your model.

After you specify a model, click **Estimate** to estimate all
unknown parameters in the model.
