Preprocess Images for Deep Learning
To train a network and make predictions on new data, your images must match the input size of the network. If you need to adjust the size of your images to match the network, then you can rescale or crop your data to the required size.
You can effectively increase the amount of training data by applying randomized
augmentation to your data. Augmentation also enables you to train
networks to be invariant to distortions in image data. For example, you can add randomized
rotations to input images so that a network is invariant to the presence of rotation in
input images. An
augmentedImageDatastore (Deep Learning Toolbox) provides a convenient way to apply a limited set of
augmentations to 2-D images for classification problems.
For more advanced preprocessing operations, to preprocess images for regression problems,
or to preprocess 3-D volumetric images, you can start with a built-in datastore. You can
also preprocess images according to your own pipeline by using the
Resize Images Using Rescaling and Cropping
You can store image data as a numeric array, an
ImageDatastore object, or a table. An
enables you to import data in batches from image collections that are too large to fit
in memory. You can use an augmented image datastore or a resized 4-D array for training,
prediction, and classification. You can use a resized 3-D array for prediction and
There are two ways to resize image data to match the input size of a network.
Rescaling multiplies the height and width of the image by a scaling factor. If the scaling factor is not identical in the vertical and horizontal directions, then rescaling changes the spatial extents of the pixels and the aspect ratio.
Cropping extracts a subregion of the image and preserves the spatial extent of each pixel. You can crop images from the center or from random positions in the image.
|Resizing Option||Data Format||Resizing Function||Sample Code|
im = imresize(I,outputSize);
auimds = augmentedImageDatastore(outputSize,I);
im = imcrop(I,rect);
im = imcrop3(I,cuboid);
auimds = augmentedImageDatastore(outputSize,I,'OutputSizeMode',m);
Augment Images for Training with Random Geometric Transformations
For image classification problems, you can use an
augmentedImageDatastore (Deep Learning Toolbox) to augment images with a random combination of
resizing, rotation, reflection, shear, and translation transformations.

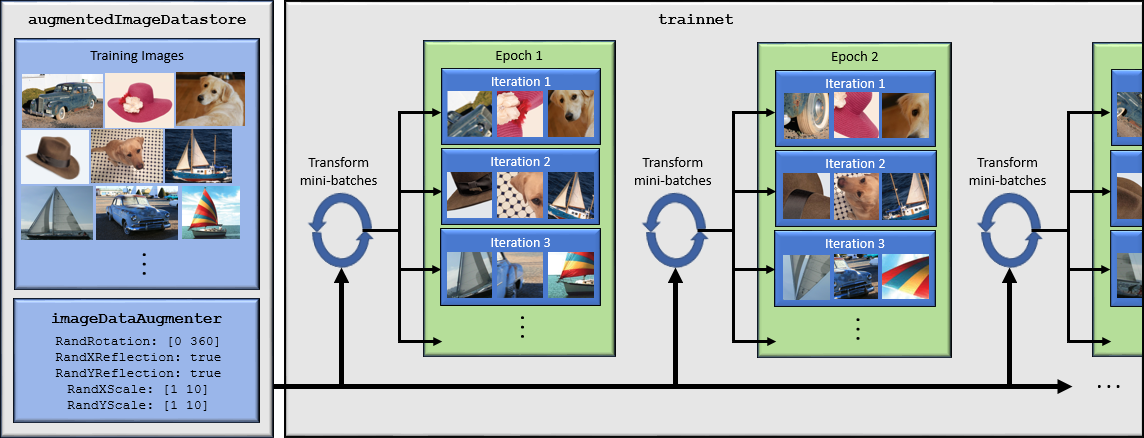

The diagram shows how
trainNetwork (Deep Learning Toolbox) uses an augmented image
datastore to transform training data for each epoch. When you use data augmentation, one
randomly augmented version of each image is used during each epoch of training. For an
example of the workflow, see Train Network with Augmented Images (Deep Learning Toolbox).
Specify training images.
Configure image transformation options, such as the range of rotation angles and whether to apply reflection at random, by creating an
imageDataAugmenter(Deep Learning Toolbox).
To preview the transformations applied to sample images, use the
augment(Deep Learning Toolbox) function.
augmentedImageDatastore(Deep Learning Toolbox). Specify the training images, the size of output images, and the
imageDataAugmenter. The size of output images must be compatible with the size of the
imageInputLayer(Deep Learning Toolbox) of the network.
Train the network, specifying the augmented image datastore as the data source for
trainNetwork(Deep Learning Toolbox). For each iteration of training, the augmented image datastore applies a random combination of transformations to images in the mini-batch of training data.
When you use an augmented image datastore as a source of training images, the datastore randomly perturbs the training data for each epoch, so that each epoch uses a slightly different data set. The actual number of training images at each epoch does not change. The transformed images are not stored in memory.
Perform Additional Image Processing Operations Using Built-In Datastores
Some datastores perform specific and limited image preprocessing operations when they
read a batch of data. These application-specific datastores are listed in the table. You
can use these datastores as a source of training, validation, and test data sets for
deep learning applications that use Deep Learning Toolbox™. All of these datastores return data in a format supported by
|Apply random affine geometric transformations, including resizing, rotation, reflection, shear, and translation, for training deep neural networks. For an example, see Transfer Learning Using Pretrained Network (Deep Learning Toolbox).|
|Extract multiple pairs of random patches from images or pixel label images (requires Image Processing Toolbox™). You optionally can apply identical random affine geometric transformations to the pairs of patches. For an example, see Increase Image Resolution Using Deep Learning (Deep Learning Toolbox).|
|Apply randomly generated Gaussian noise for training denoising networks (requires Image Processing Toolbox).|
Apply Custom Image Processing Pipelines Using Combine and Transform
To perform more general and complex image preprocessing operations than offered by the
application-specific datastores, you can use the
functions. For more information, see Datastores for Deep Learning (Deep Learning Toolbox).
Transform Datastores with Image Data
transform function creates an altered form of a datastore, called an
underlying datastore, by transforming the data read by
the underlying datastore according to a transformation function that you
The custom transformation function must accept data in the format returned by the
read function of the underlying datastore. For image data in
ImageDatastore, the format depends on the
ReadSizeis 1, the transformation function must accept an integer array. The size of the array is consistent with the type of images in the
ImageDatastore. For example, a grayscale image has dimensions m-by-n, a truecolor image has dimensions m-by-n-by-3, and a multispectral image with c channels has dimensions m-by-n-by-c.
ReadSizeis greater than 1, the transformation function must accept a cell array of image data. Each element corresponds to an image in the batch.
transform function must return data that matches the input
size of the network. The
transform function does not support
one-to-many observation mappings.
transform function supports prefetching when the
ImageDatastore reads a batch of JPG or PNG
image files. For these image types, do not use the
readFcn argument of
to apply image preprocessing, as this option is usually significantly
slower. If you use a custom read function, then
ImageDatastore does not prefetch.
Combine Datastores with Image Data
combine function concatenates the data read from multiple datastores
and maintains parity between the datastores.
Concatenate data into a two-column table or two-column cell array for training networks with a single input, such as image-to-image regression networks.
Concatenate data to a (
numInputs+1)-column cell array for training networks with multiple inputs.
