modelDiscrimination

Compute AUROC and ROC data

Syntax

[DiscMeasure,DiscData] = modelDiscrimination(pdModel,data)

[DiscMeasure,DiscData] = modelDiscrimination(___,Name,Value)

Description

[DiscMeasure,DiscData] = modelDiscrimination(pdModel,data) computes the area under the receiver operating characteristic curve (AUROC) and returns the data for the corresponding ROC curve. modelDiscrimination supports segmentation and comparison against a reference model.

[DiscMeasure,DiscData] = modelDiscrimination(___,Name,Value) specifies options using one or more name-value pair arguments in addition to the input arguments in the previous syntax.

Examples

Generate AUROC and ROC for Logistic Lifetime PD Model

This example shows how to use fitLifetimePDModel to fit data with a Logistic model and then generate the area under the receiver operating characteristic curve (AUROC) and ROC curve.

Load Data

Load the credit portfolio data.

load RetailCreditPanelData.mat
disp(head(data))

    ID    ScoreGroup    YOB    Default    Year
    __    __________    ___    _______    ____

    1      Low Risk      1        0       1997
    1      Low Risk      2        0       1998
    1      Low Risk      3        0       1999
    1      Low Risk      4        0       2000
    1      Low Risk      5        0       2001
    1      Low Risk      6        0       2002
    1      Low Risk      7        0       2003
    1      Low Risk      8        0       2004

disp(head(dataMacro))

    Year     GDP     Market
    ____    _____    ______

    1997     2.72      7.61
    1998     3.57     26.24
    1999     2.86      18.1
    2000     2.43      3.19
    2001     1.26    -10.51
    2002    -0.59    -22.95
    2003     0.63      2.78
    2004     1.85      9.48

Join the two data components into a single data set.

data = join(data,dataMacro);
disp(head(data))

    ID    ScoreGroup    YOB    Default    Year     GDP     Market
    __    __________    ___    _______    ____    _____    ______

    1      Low Risk      1        0       1997     2.72      7.61
    1      Low Risk      2        0       1998     3.57     26.24
    1      Low Risk      3        0       1999     2.86      18.1
    1      Low Risk      4        0       2000     2.43      3.19
    1      Low Risk      5        0       2001     1.26    -10.51
    1      Low Risk      6        0       2002    -0.59    -22.95
    1      Low Risk      7        0       2003     0.63      2.78
    1      Low Risk      8        0       2004     1.85      9.48

Partition Data

Separate the data into training and test partitions.

nIDs = max(data.ID);
uniqueIDs = unique(data.ID);

rng('default'); % for reproducibility
c = cvpartition(nIDs,'HoldOut',0.4);

TrainIDInd = training(c);
TestIDInd = test(c);

TrainDataInd = ismember(data.ID,uniqueIDs(TrainIDInd));
TestDataInd = ismember(data.ID,uniqueIDs(TestIDInd));

Create a Logistic Lifetime PD Model

Use fitLifetimePDModel to create a Logistic model.

pdModel = fitLifetimePDModel(data(TrainDataInd,:),"Logistic",...
    'AgeVar','YOB',...
    'IDVar','ID',...
    'LoanVars','ScoreGroup',...
    'MacroVars',{'GDP','Market'},...
    'ResponseVar','Default');
 disp(pdModel)

  Logistic with properties:

        ModelID: "Logistic"
    Description: ""
          Model: [1x1 classreg.regr.CompactGeneralizedLinearModel]
          IDVar: "ID"
         AgeVar: "YOB"
       LoanVars: "ScoreGroup"
      MacroVars: ["GDP"    "Market"]
    ResponseVar: "Default"

Display the underlying model.

disp(pdModel.Model)

Compact generalized linear regression model:
    logit(Default) ~ 1 + ScoreGroup + YOB + GDP + Market
    Distribution = Binomial

Estimated Coefficients:
                               Estimate        SE         tStat       pValue
                              __________    _________    _______    ___________

    (Intercept)                  -2.7422      0.10136    -27.054     3.408e-161
    ScoreGroup_Medium Risk      -0.68968     0.037286    -18.497     2.1894e-76
    ScoreGroup_Low Risk          -1.2587     0.045451    -27.693    8.4736e-169
    YOB                         -0.30894     0.013587    -22.738    1.8738e-114
    GDP                         -0.11111     0.039673    -2.8006      0.0051008
    Market                    -0.0083659    0.0028358    -2.9502      0.0031761


388097 observations, 388091 error degrees of freedom
Dispersion: 1
Chi^2-statistic vs. constant model: 1.85e+03, p-value = 0

disp(pdModel.Model.Coefficients)

                               Estimate        SE         tStat       pValue
                              __________    _________    _______    ___________

    (Intercept)                  -2.7422      0.10136    -27.054     3.408e-161
    ScoreGroup_Medium Risk      -0.68968     0.037286    -18.497     2.1894e-76
    ScoreGroup_Low Risk          -1.2587     0.045451    -27.693    8.4736e-169
    YOB                         -0.30894     0.013587    -22.738    1.8738e-114
    GDP                         -0.11111     0.039673    -2.8006      0.0051008
    Market                    -0.0083659    0.0028358    -2.9502      0.0031761

Model Discrimination to Generate AUROC and ROC

Model "discrimination" measures how effectively a model ranks customers by risk. You can use the AUROC and ROC outputs to determine whether customers with higher predicted PDs actually have higher risk in the observed data.

DataSetChoice = "Training";
if DataSetChoice=="Training"
    Ind = TrainDataInd;
 else
    Ind = TestDataInd;
 end

[DiscMeasure,DiscData] = modelDiscrimination(pdModel,data(TrainDataInd,:),'DataID',DataSetChoice);
disp(DiscMeasure)

                           AUROC
                          _______

    Logistic, Training    0.69377

head(DiscData)

ans=8×3 table
       X           Y           T
    ________    ________    ________

           0           0    0.031768
    0.017911    0.056014    0.031768
    0.032942     0.10119     0.02874
    0.047368     0.13681    0.025167
    0.063755     0.18121    0.024909
    0.077122     0.21373    0.023651
    0.090851     0.24755    0.023636
     0.10685     0.27904    0.021264

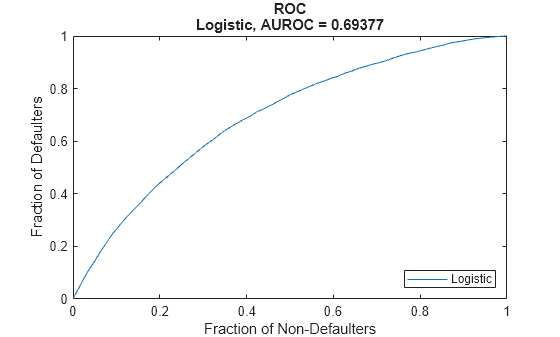

Visualize the ROC for the Logistic model.

plot(DiscData.X,DiscData.Y)
title(strcat("ROC ",pdModel.ModelID))
xlabel('Fraction of nondefaulters')
ylabel('Fraction of defaulters')
legend(strcat(DiscMeasure.Properties.RowNames,", AUROC = ",num2str(DiscMeasure.AUROC)),'Location','southeast')

Data can be segmented to get the AUROC per segment and the corresponding ROC data.

SegmentVar = "YOB";
[DiscMeasure,DiscData] = modelDiscrimination(pdModel,data(Ind,:),'SegmentBy',SegmentVar,'DataID',DataSetChoice);
disp(DiscMeasure)

                                  AUROC
                                 _______

    Logistic, YOB=1, Training    0.63989
    Logistic, YOB=2, Training    0.64709
    Logistic, YOB=3, Training     0.6534
    Logistic, YOB=4, Training     0.6494
    Logistic, YOB=5, Training    0.63479
    Logistic, YOB=6, Training    0.66174
    Logistic, YOB=7, Training    0.64328
    Logistic, YOB=8, Training    0.63424

head(DiscData)

ans=8×4 table
    YOB       X          Y           T
    ___    _______    _______    _________

     1           0          0     0.031768
     1     0.12057    0.21443     0.031768
     1     0.22174    0.38735      0.02874
     1     0.33204    0.55731     0.024909
     1     0.45065    0.67391     0.016196
     1     0.55484    0.75593     0.014629
     1     0.66645    0.84091     0.012655
     1     0.79128    0.90119    0.0092331

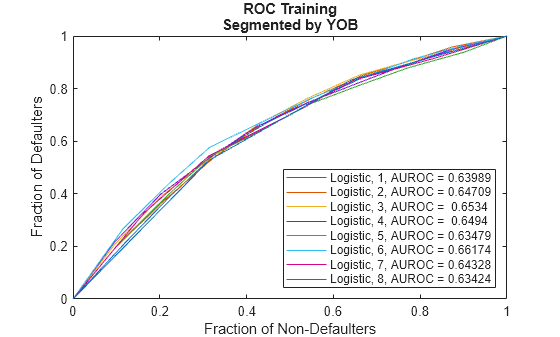

Visualize the ROC segmented by YOB, ScoreGroup, or Year.

UniqueSegmentValues = unique(DiscData.(SegmentVar));
figure;
hold on
for ii=1:length(UniqueSegmentValues)
   IndSegment = DiscData.(SegmentVar)==UniqueSegmentValues(ii);
   plot(DiscData.X(IndSegment),DiscData.Y(IndSegment))
end
hold off
title(strcat("ROC ",pdModel.ModelID,", Segmented By ",SegmentVar))
xlabel('Fraction of non-defaulters')
ylabel('Fraction of defaulters')
legend(strcat(DiscMeasure.Properties.RowNames,", AUROC = ",num2str(DiscMeasure.AUROC)),'Location','southeast')

Input Arguments

pdModel — Probability of default model

Logisitic object | Probit object

Probability of default model, specified as a Logistic or Probit object previously created using fitLifetimePDModel.

Note

The 'ModelID' property of the pdModel object is used as the identifier or tag for pdModel.

Data Types: object

data — Data

table

Data, specified as a NumRows-by-NumCols table with projected predictor values to make lifetime predictions. The predictor names and data types must be consistent with the underlying model.

Data Types: table

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: [PerfMeasure,PerfData] = modelDiscrimination(pdModel,data(Ind,:),'DataID',DataSetChoice)

'DataID' — Data set identifier

" " (default) | character vector | string

Data set identifier, specified as the comma-separated pair consisting of 'DataID' and a character vector or string.

Data Types: char | string

'SegmentBy' — Name of column in data input used to segment data set

" " (default) | character vector | string

Name of a column in the data input, not necessarily a model variable, to be used to segment the data set, specified as the comma-separated pair consisting of 'SegmentBy' and a character vector or string.

One AUROC value is reported for each segment and the corresponding ROC data for each segment is returned in the PerfData optional output.

Data Types: char | string

'ReferencePD' — Conditional PD values predicted for data by reference model

[ ] (default) | character vector | string

Conditional PD values predicted for data by the reference model, specified as the comma-separated pair consisting of 'ReferencePD' and a NumRows-by-1 numeric vector. The modelDiscrimination output information is reported for both the pdModel object and the reference model.

Data Types: char | string

'ReferenceID' — Identifier for reference model

" " (default) | character vector | string

Identifier for the reference model, specified as the comma-separated pair consisting of 'ReferenceID' and a character vector or string. 'ReferenceID' is used in the modelDiscrimination output for reporting purposes.

Data Types: char | string

Output Arguments

DiscMeasure — AUROC information for each model and each segment

table

AUROC information for each model and each segment., returned as a table. DiscMeasure has a single column named 'AUROC' and the number of rows depends on the number of segments and whether you use a ReferenceID for a reference model and ReferencePD for reference data. The row names of DiscMeasure report the model IDs, segment, and data ID.

DiscData — ROC data for each model and each segment

table

ROC data for each model and each segment, returned as a table. There are three columns for the ROC data, with column names 'X', 'Y', and 'T', where the first two are the X and Y coordinates of the ROC curve, and T contains the corresponding thresholds.

If you use SegmentBy, the function stacks the ROC data for all segments and DiscData has a column with the segmentation values to indicate where each segment starts and ends.

If reference model data is given using ReferenceID and ReferencePD, the DiscData outputs for the main and reference models are stacked, with an extra column 'ModelID' indicating where each model starts and ends.

More About

Model Discrimination

Model discrimination measures the risk ranking.

Higher-risk loans should get higher predicted probability of default (PD) than lower-risk loans. The modelDiscrimination function computes the Area Under the Receiver Operator Characteristic curve (AUROC), sometimes called simply the Area Under the Curve (AUC). This metric is between 0 and 1 and higher values indicate better discrimination.

The Receiver Operator Characteristic (ROC) curve is a parametric curve that plots:

• The proportion of defaulters with PD higher than or equal to a reference PD value p

• The proportion of nondefaulters with PD higher than or equal to the same reference PD value p

The reference PD value p parametizes the curve, and the software sweeps through the unique predicted PD values observed in a data set. The proportion of actual defaulters are assigned a PD higher than or equal to p is the "True Positive Rate." The proportion of actual non-defaulters that are assigned a PD higher than or equal to p is the "False Positive Rate." For more information about ROC curves, see Performance Curves.

References

[1] Baesens, Bart, Daniel Roesch, and Harald Scheule. Credit Risk Analytics: Measurement Techniques, Applications, and Examples in SAS. Wiley, 2016.

[2] Bellini, Tiziano. IFRS 9 and CECL Credit Risk Modelling and Validation: A Practical Guide with Examples Worked in R and SAS. San Diego, CA: Elsevier, 2019.

[3] Breeden, Joseph. Living with CECL: The Modeling Dictionary. Santa Fe, NM: Prescient Models LLC, 2018.
