Engines & Motors
The Simscape™ Driveline™ Engines & Motors library provides blocks for combustion-engine modeling. You can model a single-cylinder spark-ignition and diesel engines, or a reciprocating engine that contains multiple cylinders. You can also model just the piston mechanism of a combustion engine using the Piston block.
|Aerodynamic Propeller||Propeller that generates thrust from rotation in aerodynamic environments|

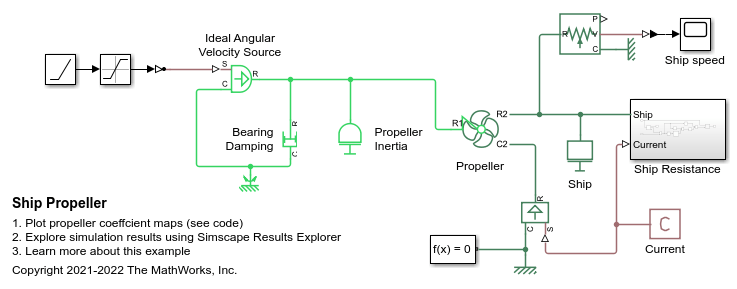

|Marine Propeller||Propeller that converts rotation into thrust in marine environments|
|Wind Turbine||Turbine that converts wind motion into electrical energy|
|Motor & Drive||Generic motor and drive with closed-loop torque control|
|Generic Engine||Generic internal combustion engine|
|Piston||Piston mechanism of reciprocating combustion engine|
|Piston Engine||Reciprocating combustion engine with variable number of pistons|

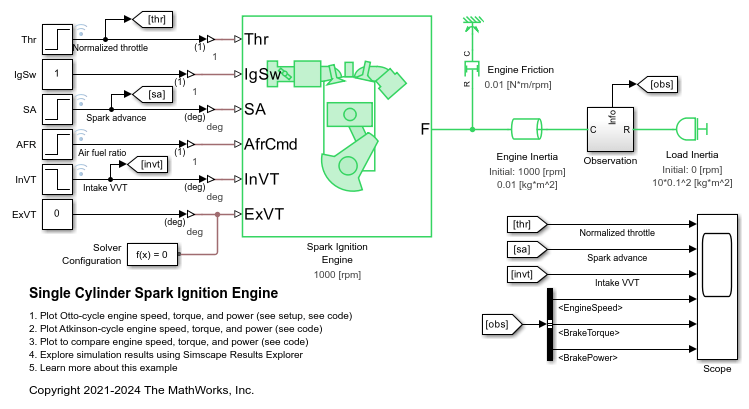

|Spark Ignition Engine||Naturally aspirated spark ignition engine|
|Air Intake||Combustion cylinder air supply intake|
|Crankshaft||Combustion engine crankshaft that connects to one or more pistons|
|Exhaust Manifold Thermal||Thermodynamics of combustion engine exhaust manifold|
|Ignition Trigger||Trigger system for spark-ignited combustion engine|
|SI Combustion Cylinder||Spark-ignited, four-stroke internal combustion cylinder|
Learn how to solve motion issues in engine-driven systems.
