# enbw

Equivalent noise bandwidth

## Description

## Examples

### Equivalent Noise Bandwidth of Hamming Window

Determine the equivalent noise bandwidth of a Hamming window 1000 samples in length.

bw = enbw(hamming(1000))

bw = 1.3638

### Equivalent Noise Bandwidth of Flat Top Window

Determine the equivalent noise bandwidth in Hz of a flat top window 10000 samples in length. The sample rate is 44.1 kHz.

bw = enbw(flattopwin(10000),44.1e3)

bw = 16.6285

### Equivalent Rectangular Noise Bandwidth

Obtain the equivalent rectangular noise bandwidth of a 128-sample Hann window.

Generate the window and compute its discrete Fourier transform over 2048 frequencies. Shift the transform so it is centered at zero frequency and compute its squared magnitude.

lw = 128; win = hann(lw); lt = 2048; windft = fftshift(fft(win,lt)); ad = abs(windft).^2; mg = max(ad);

Specify a sample rate of 1 kHz. Use `enbw`

to compute the equivalent noise bandwidth of the window and verify that the value coincides with the definition.

fs = 1000; bw = enbw(win,fs)

bw = 11.8110

bdef = sum((win).^2)/sum(win)^2*fs

bdef = 11.8110

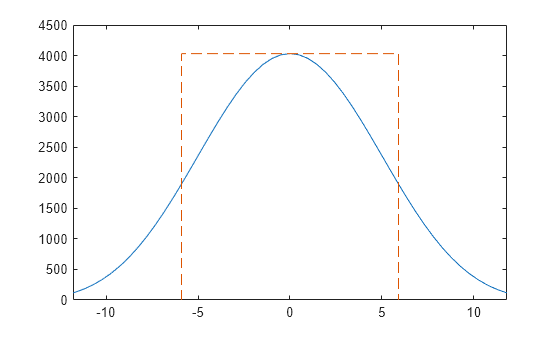

Plot the squared magnitude of the window. Overlay a rectangle with height equal to the peak of the squared magnitude and width equal to the equivalent noise bandwidth.

freq = -fs/2:fs/lt:fs/2-fs/lt; plot(freq,ad, ... bw/2*[-1 -1 1 1],mg*[0 1 1 0],'--') xlim(bw*[-1 1])

Verify that the area of the rectangle contains the same total power as the window.

Adiff = trapz(freq,ad)-bw*mg

Adiff = 1.4552e-11

Repeat the computation using normalized frequencies. Find the equivalent noise bandwidth of the window. Verify that `enbw`

gives the same value as the definition.

bw = enbw(win)

bw = 1.5118

bdef = sum((win).^2)/sum(win)^2*lw

bdef = 1.5118

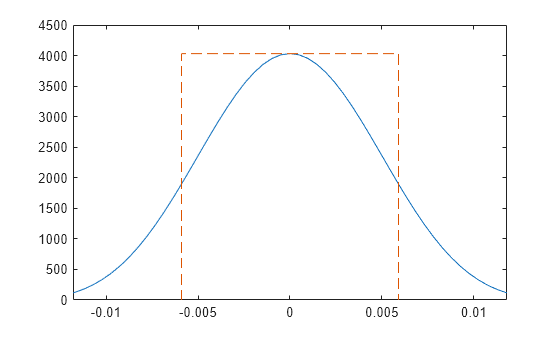

Plot the squared magnitude of the window. Overlay a rectangle with height equal to the peak of the squared magnitude and width equal to the equivalent noise bandwidth.

freqn = -1/2:1/lt:1/2-1/lt; plot(freqn,ad, ... bw/2*[-1 -1 1 1]/lw,mg*[0 1 1 0],'--') xlim(bw*[-1 1]/lw)

Verify that the area of the rectangle contains the same total power as the window.

Adiff = trapz(freqn,ad)-bw*mg/lw

Adiff = 0

## Input Arguments

`window`

— Window vector

real-valued row or column vector

Uniformly sampled window vector, specified as a row or column vector with real-valued elements.

**Example: **`hamming(1000)`

**Data Types: **`double`

| `single`

`fs`

— Sampling frequency

positive scalar

Sampling frequency, specified as a positive scalar.

## Output Arguments

`bw`

— Equivalent noise bandwidth

positive scalar

Equivalent noise bandwidth, specified as a positive scalar.

**Data Types: **`double`

| `single`

## More About

### Equivalent Noise Bandwidth

The *total power* contained in a window is the area
under the curve produced by the squared magnitude of the Fourier transform of the
window. The *equivalent noise bandwidth* of the window is the
width of a rectangle with height equal to the peak of the squared magnitude of the
Fourier transform and area equal to the total power.

Parseval's theorem states that the total energy for the *N*-sample window *w*(*n*) equals the sum of the squared magnitudes of the time-domain window
samples or the integral over frequency of the squared magnitude of the Fourier
transform of the window:

$${\int}_{-1/2}^{1/2}{\left|W(f)\right|}^{2}}df={\displaystyle \sum _{n}{\left|w(n)\right|}^{2}}.$$

The power spectrum of the window has peak magnitude at *f* = 0:

$${\left|W(0)\right|}^{2}={\left|{\displaystyle \sum _{n}w}(n)\right|}^{2}.$$

To find the width of the equivalent rectangle, and thus the equivalent noise bandwidth, divide the area by the height:

$$\frac{{\displaystyle {\int}_{-1/2}^{1/2}{\left|W(f)\right|}^{2}}df}{{\left|W(0)\right|}^{2}}=\frac{{\displaystyle \sum _{n}{\left|w(n)\right|}^{2}}}{{\left|{\displaystyle \sum _{n}w}(n)\right|}^{2}}.$$

When a sample rate *f _{s}*
is specified,

`enbw`

returns the previous expression
multiplied by *f*:

_{s}$$\text{ENBW}={f}_{s}\frac{{\displaystyle \sum _{n}{\left|w(n)\right|}^{2}}}{{\left|{\displaystyle \sum _{n}w}(n)\right|}^{2}}.$$

For normalized frequencies, the function divides by the bin
width, *f _{s}*/

*N*:

$$\text{ENBW}=N\frac{{\displaystyle \sum _{n}{\left|w(n)\right|}^{2}}}{{\left|{\displaystyle \sum _{n}w}(n)\right|}^{2}}.$$

See Equivalent Rectangular Noise Bandwidth for an example that, for a given window:

Compares the result of

`enbw`

to the definition for a specified sample rate and for normalized frequencies.Plots the equivalent rectangular bandwidth over the magnitude spectrum of the window.

Verifies that the total power contained in the window is the same as the power contained in a rectangle with height equal to the peak squared magnitude of the Fourier transform of the window and width equal to the equivalent noise bandwidth.

## References

[1] harris, fredric j. “On the Use
of Windows for Harmonic Analysis with the Discrete Fourier Transform.”
*Proceedings of the IEEE ^{®}.* Vol. 66, January 1978, pp. 51–83.
