Occupied bandwidth

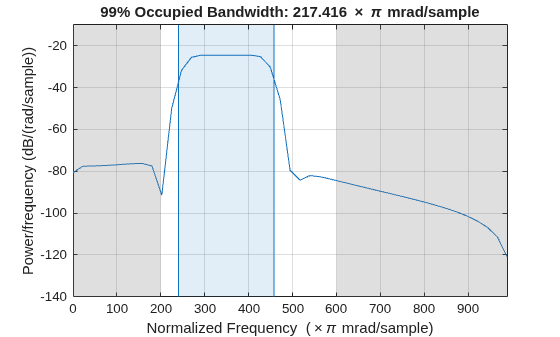

specifies the frequency interval over which to compute the occupied bandwidth.
This syntax can include any combination of input arguments from previous
syntaxes, as long as the second input argument is either `bw`

= obw(___,`freqrange`

,`p`

)`fs`

or `f`

. If the second input is passed as empty, normalized
frequency will be assumed. This syntax also specifies `p`

,
the percentage of the total signal power contained in the occupied band.

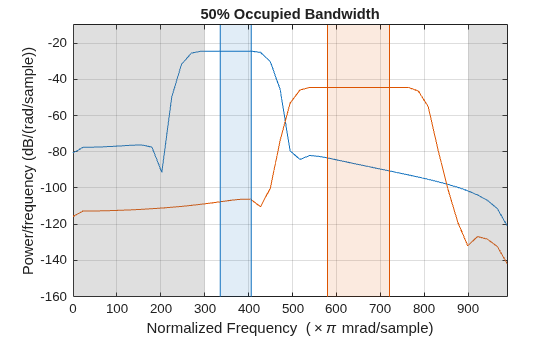

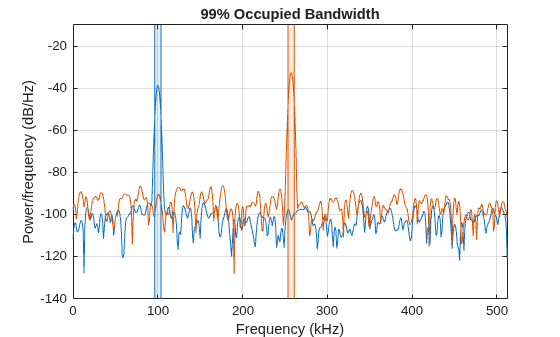

`obw(___)`

with no output arguments

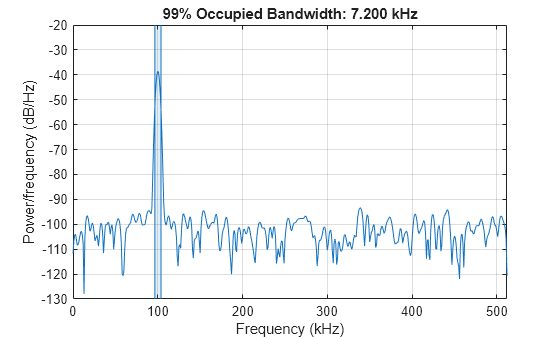

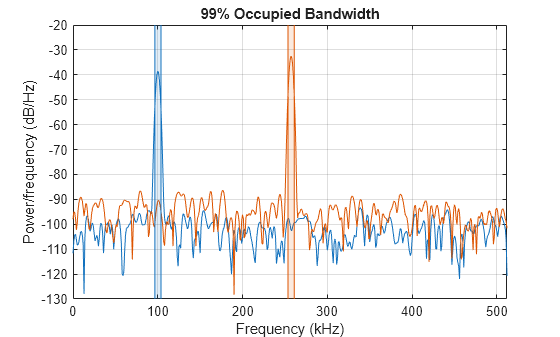

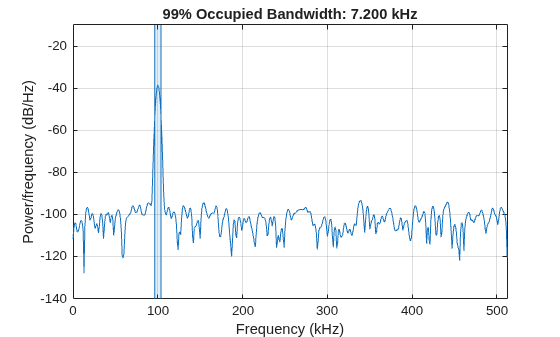

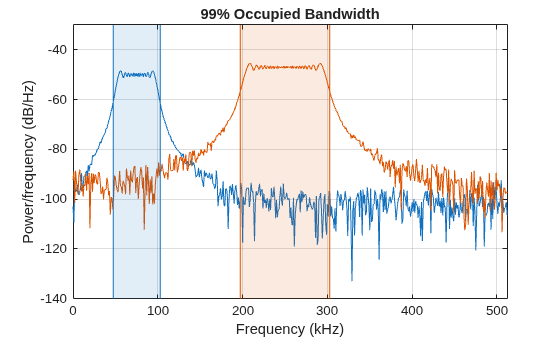

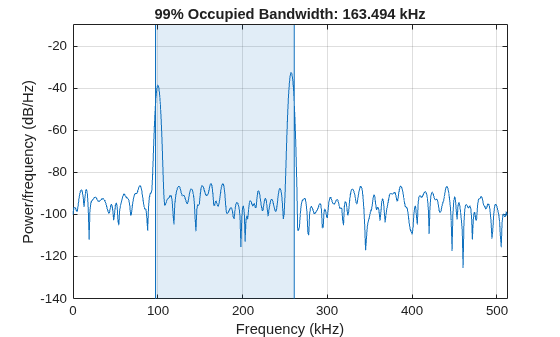

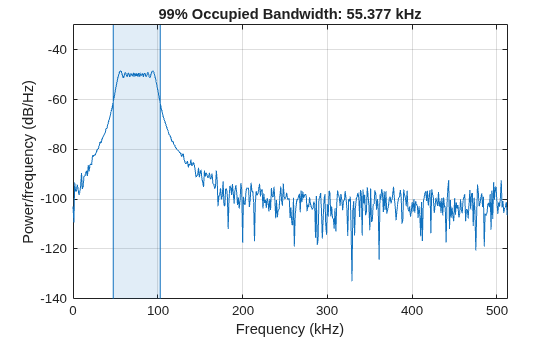

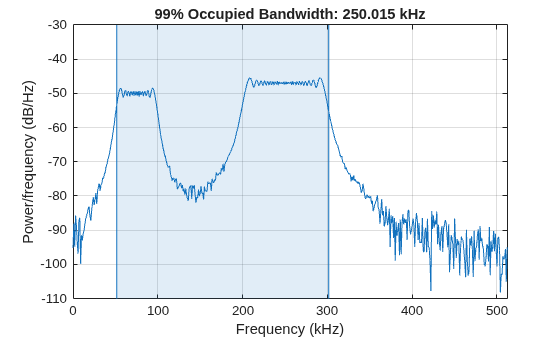

plots the PSD or power spectrum in the current figure window and annotates
the bandwidth.

To determine the occupied bandwidth, `obw`

computes
a periodogram power spectral density estimate using a rectangular
window and integrates the estimate using the midpoint rule. The occupied
bandwidth is the difference in frequency between the points where
the integrated power crosses 0.5% and 99.5% of the total power in
the spectrum.
