Transfer function estimate

`txy = tfestimate(x,y)`

`txy = tfestimate(x,y,window)`

`txy = tfestimate(x,y,window,noverlap)`

`txy = tfestimate(x,y,window,noverlap,nfft)`

`txy = tfestimate(___,'mimo')`

`[txy,w] = tfestimate(___)`

`[txy,f] = tfestimate(___,fs)`

`[txy,w] = tfestimate(x,y,window,noverlap,w)`

`[txy,f] = tfestimate(x,y,window,noverlap,f,fs)`

`[___] = tfestimate(x,y,___,freqrange)`

`[___] = tfestimate(___,'Estimator',est)`

`tfestimate(___)`

finds
a transfer function estimate, `txy`

= tfestimate(`x`

,`y`

)`txy`

, given an input
signal, `x`

, and an output signal, `y`

.

If

`x`

and`y`

are both vectors, they must have the same length.If one of the signals is a matrix and the other is a vector, then the length of the vector must equal the number of rows in the matrix. The function expands the vector and returns a matrix of column-by-column transfer function estimates.

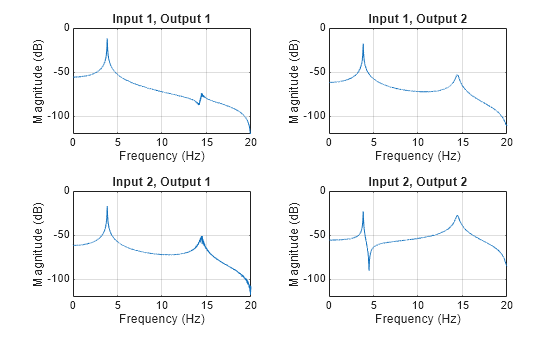

If

`x`

and`y`

are matrices with the same number of rows but different numbers of columns, then`txy`

is a multi-input/multi-output (MIMO) transfer function that combines all input and output signals.`txy`

is a three-dimensional array. If`x`

has*m*columns and`y`

has*n*columns, then`txy`

has*n*columns and*m*pages. See Transfer Function for more information.If

`x`

and`y`

are matrices of equal size, then`tfestimate`

operates column-wise:`txy(:,n) = tfestimate(x(:,n),y(:,n))`

. To obtain a MIMO estimate, append`'mimo'`

to the argument list.

computes
a MIMO transfer function for matrix inputs. This syntax can include
any combination of input arguments from previous syntaxes.`txy`

= tfestimate(___,'mimo')

`[`

returns
a vector of frequencies, `txy`

,`f`

] = tfestimate(___,`fs`

)`f`

, expressed in terms
of the sample rate, `fs`

, at which the transfer
function is estimated. `fs`

must be the sixth numeric
input to `tfestimate`

. To input a sample rate and
still use the default values of the preceding optional arguments,
specify these arguments as empty, `[]`

.

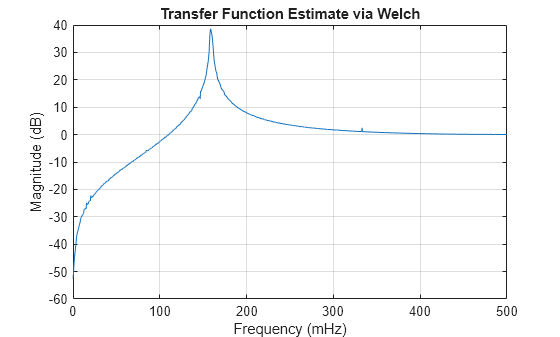

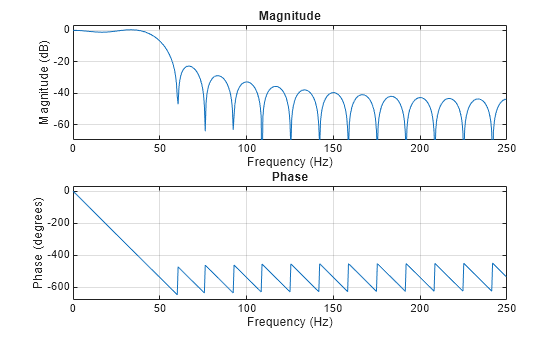

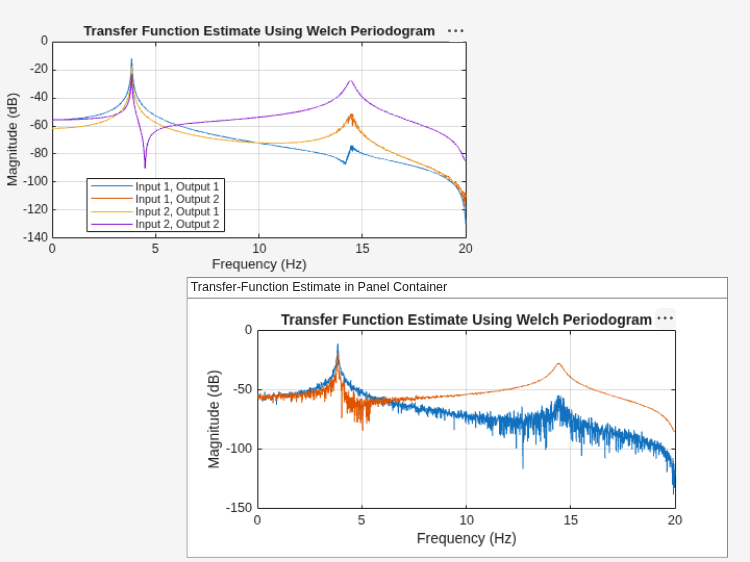

`tfestimate(___)`

with
no output arguments plots the transfer function estimate in the current
figure window.

`tfestimate`

uses Welch's averaged periodogram
method. See `pwelch`

for details.

[1] Vold, Håvard, John Crowley, and G. Thomas Rocklin.
“New Ways of Estimating Frequency Response Functions.” *Sound
and Vibration*. Vol. 18, November 1984, pp. 34–38.
