Simulation Software

Simulate dynamic system behavior

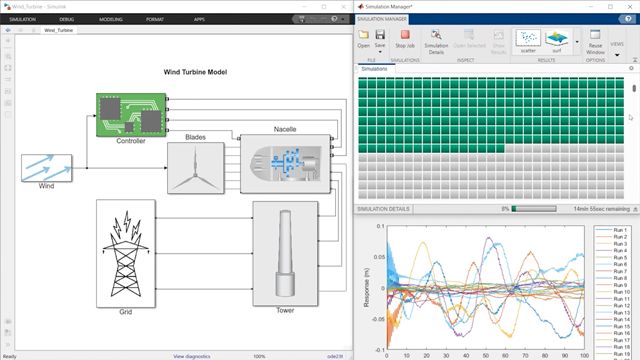

Simulation software helps you predict the behavior of a system.  You can use simulation software to evaluate a new design, diagnose problems with an existing design, and test a system under conditions that are hard to reproduce, such as a satellite in outer space. To run a simulation, you need a mathematical model of your system, which can be expressed as a block diagramschematic, state diagram, or even code. The simulation software calculates the behavior of the model as conditions evolve over time or as events occur. Simulation software also includes visualization tools, such as data displays and 3D animation, to help monitor the simulation as it runs.

Engineers and scientists use simulation software for a variety of reasons:

Time-Based Simulation

Simulink for simulation and Model-Based Design

Event-Based Simulation

Stateflow for modeling and simulating decision logic using state machines and flow charts

SimEvents for modeling and simulating discrete-event systems

Physical Systems Simulation

Simscape for modeling and simulating multidomain physical systems

See also: system design and simulation, modeling and simulation, Monte Carlo simulation, simulation software videos, discrete-event simulation, motor simulation
