morebins

Increase number of histogram bins

Syntax

N = morebins(h)
N = morebins(h,direction)

Description

example

N = morebins(h) increases the number of bins in histogram h by 10% (rounded up to the nearest integer) and returns the new number of bins.

For bivariate histograms, this increases the bin count in both the x and y directions.

N = morebins(h,direction), where h must be a histogram2 object, only increases the number of bins in the dimension specified by direction. The direction option can be 'x', 'y', or 'both'. The default value is 'both'.

Examples

collapse all

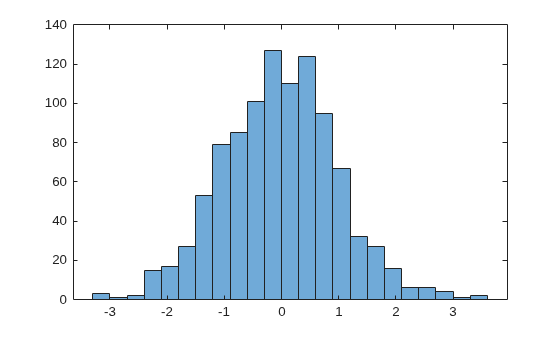

Plot a histogram of 1,000 random numbers and return a handle to the histogram object.

x = randn(1000,1);
h = histogram(x)

h =
  Histogram with properties:

             Data: [1000x1 double]
           Values: [1x23 double]
          NumBins: 23
         BinEdges: [1x24 double]
         BinWidth: 0.3000
        BinLimits: [-3.3000 3.6000]
    Normalization: 'count'
        FaceColor: 'auto'
        EdgeColor: [0 0 0]

  Show all properties

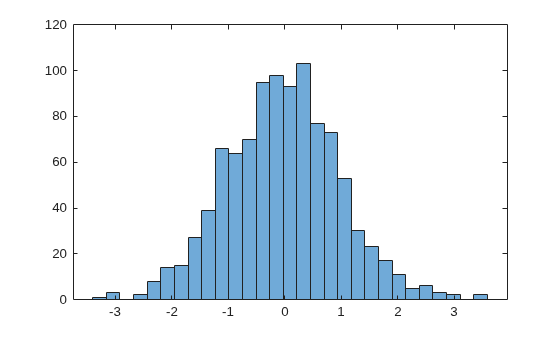

Use morebins to increase the number of bins in the histogram.

morebins(h);
morebins(h)

ans = 29

Input Arguments

collapse all

Input histogram, specified as a histogram or histogram2 object.

h cannot be a categorical histogram.

Direction to increase the number of bins, specified as 'x', 'y', or 'both'. Specify 'x' or 'y' to only increase the number of bins in that direction while leaving the number of bins in the other direction constant.

Output Arguments

collapse all

Number of bins, returned as a scalar or vector. N is the new number of bins for the histogram after increase. For bivariate histogram plots, N is a two-element vector, [nx ny].

Introduced in R2014b
