validatemodel

Validate quality of credit scorecard model

Description

example

Stats = validatemodel(sc) validates the quality of the creditscorecard model.

By default, the data used to build the creditscorecard object is used. You can also supply input data to which the validation is applied.

example

Stats = validatemodel(sc,data) validates the quality of the creditscorecard model for a given data set specified using the optional argument data.

example

[Stats,T] = validatemodel(sc,Name,Value) validates the quality of the creditscorecard model using the optional name-value pair arguments, and returns Stats and T outputs.

example

[Stats,T,hf] = validatemodel(sc,Name,Value) validates the quality of the creditscorecard model using the optional name-value pair arguments, and returns the figure handle hf to the CAP, ROC, and KS plots.

Examples

collapse all

Create a creditscorecard object using the CreditCardData.mat file to load the data (using a dataset from Refaat 2011).

sc = creditscorecard(data, 'IDVar','CustID')
sc =
creditscorecard with properties:

GoodLabel: 0
ResponseVar: 'status'
WeightsVar: ''
VarNames: {1x11 cell}
NumericPredictors: {1x6 cell}
CategoricalPredictors: {'ResStatus'  'EmpStatus'  'OtherCC'}
BinMissingData: 0
IDVar: 'CustID'
PredictorVars: {1x9 cell}
Data: [1200x11 table]

Perform automatic binning using the default options. By default, autobinning uses the Monotone algorithm.

sc = autobinning(sc);

Fit the model.

sc = fitmodel(sc);
1. Adding CustIncome, Deviance = 1490.8527, Chi2Stat = 32.588614, PValue = 1.1387992e-08
2. Adding TmWBank, Deviance = 1467.1415, Chi2Stat = 23.711203, PValue = 1.1192909e-06
3. Adding AMBalance, Deviance = 1455.5715, Chi2Stat = 11.569967, PValue = 0.00067025601
4. Adding EmpStatus, Deviance = 1447.3451, Chi2Stat = 8.2264038, PValue = 0.0041285257
5. Adding CustAge, Deviance = 1441.994, Chi2Stat = 5.3511754, PValue = 0.020708306
6. Adding ResStatus, Deviance = 1437.8756, Chi2Stat = 4.118404, PValue = 0.042419078
7. Adding OtherCC, Deviance = 1433.707, Chi2Stat = 4.1686018, PValue = 0.041179769

Generalized linear regression model:
status ~ [Linear formula with 8 terms in 7 predictors]
Distribution = Binomial

Estimated Coefficients:
Estimate       SE       tStat       pValue
________    ________    ______    __________

(Intercept)    0.70239     0.064001    10.975    5.0538e-28
CustAge        0.60833      0.24932      2.44      0.014687
ResStatus        1.377      0.65272    2.1097      0.034888
EmpStatus      0.88565        0.293    3.0227     0.0025055
CustIncome     0.70164      0.21844    3.2121     0.0013179
TmWBank         1.1074      0.23271    4.7589    1.9464e-06
OtherCC         1.0883      0.52912    2.0569      0.039696
AMBalance        1.045      0.32214    3.2439     0.0011792

1200 observations, 1192 error degrees of freedom
Dispersion: 1
Chi^2-statistic vs. constant model: 89.7, p-value = 1.4e-16

Format the unscaled points.

sc = formatpoints(sc, 'PointsOddsAndPDO',[500,2,50]);

Score the data.

scores = score(sc);

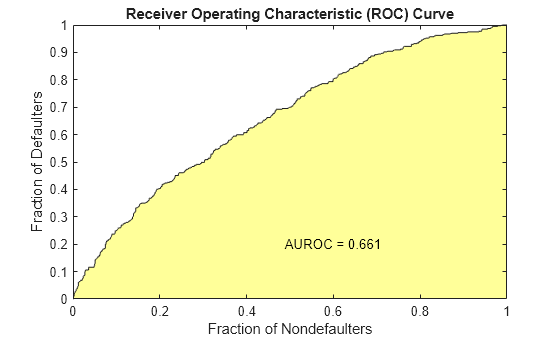

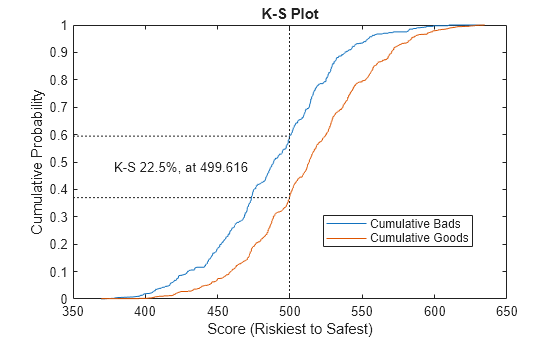

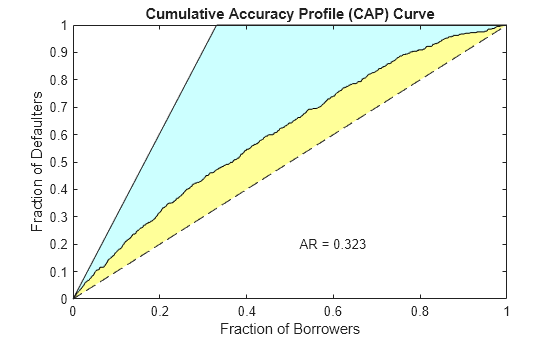

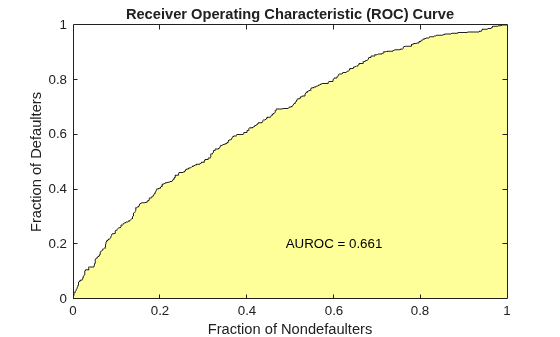

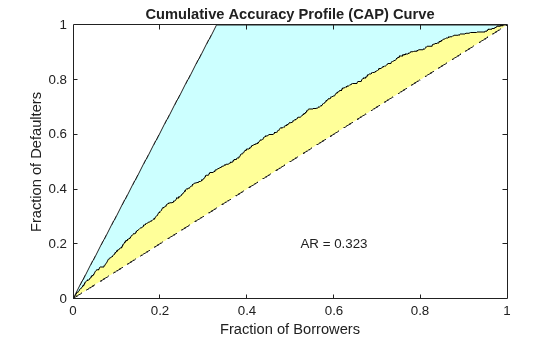

Validate the credit scorecard model by generating the CAP, ROC, and KS plots.

[Stats,T] = validatemodel(sc,'Plot',{'CAP','ROC','KS'});

disp(Stats)
Measure              Value
________________________    _______

{'Accuracy Ratio'      }    0.32258
{'Area under ROC curve'}    0.66129
{'KS statistic'        }     0.2246
{'KS score'            }     499.62
disp(T(1:15,:))
______    ___________    ________    _________    _________    __________    ___________    __________    __________

369.54      0.75313          0           1           802          397                 0     0.0012453     0.00083333
378.19      0.73016          1           1           802          396         0.0025189     0.0012453      0.0016667
380.28      0.72444          2           1           802          395         0.0050378     0.0012453         0.0025
391.49      0.69234          3           1           802          394         0.0075567     0.0012453      0.0033333
395.57      0.68017          4           1           802          393          0.010076     0.0012453      0.0041667
396.14      0.67846          4           2           801          393          0.010076     0.0024907          0.005
396.45      0.67752          5           2           801          392          0.012594     0.0024907      0.0058333
398.61      0.67094          6           2           801          391          0.015113     0.0024907      0.0066667
398.68      0.67072          7           2           801          390          0.017632     0.0024907         0.0075
401.33      0.66255          8           2           801          389          0.020151     0.0024907      0.0083333
402.66      0.65842          8           3           800          389          0.020151      0.003736      0.0091667
404.25      0.65346          9           3           800          388           0.02267      0.003736           0.01
404.73      0.65193          9           4           799          388           0.02267     0.0049813       0.010833
405.53      0.64941         11           4           799          386          0.027708     0.0049813         0.0125
405.7      0.64887         11           5           798          386          0.027708     0.0062267       0.013333

Use the CreditCardData.mat file to load the data (dataWeights) that contains a column (RowWeights) for the weights (using a dataset from Refaat 2011).

Create a creditscorecard object using the optional name-value pair argument for 'WeightsVar'.

sc = creditscorecard(dataWeights,'IDVar','CustID','WeightsVar','RowWeights')
sc =
creditscorecard with properties:

GoodLabel: 0
ResponseVar: 'status'
WeightsVar: 'RowWeights'
VarNames: {1x12 cell}
NumericPredictors: {1x6 cell}
CategoricalPredictors: {'ResStatus'  'EmpStatus'  'OtherCC'}
BinMissingData: 0
IDVar: 'CustID'
PredictorVars: {1x9 cell}
Data: [1200x12 table]

Perform automatic binning.

sc = autobinning(sc)
sc =
creditscorecard with properties:

GoodLabel: 0
ResponseVar: 'status'
WeightsVar: 'RowWeights'
VarNames: {1x12 cell}
NumericPredictors: {1x6 cell}
CategoricalPredictors: {'ResStatus'  'EmpStatus'  'OtherCC'}
BinMissingData: 0
IDVar: 'CustID'
PredictorVars: {1x9 cell}
Data: [1200x12 table]

Fit the model.

sc = fitmodel(sc);
1. Adding CustIncome, Deviance = 764.3187, Chi2Stat = 15.81927, PValue = 6.968927e-05
2. Adding TmWBank, Deviance = 751.0215, Chi2Stat = 13.29726, PValue = 0.0002657942
3. Adding AMBalance, Deviance = 743.7581, Chi2Stat = 7.263384, PValue = 0.007037455

Generalized linear regression model:
logit(status) ~ 1 + CustIncome + TmWBank + AMBalance
Distribution = Binomial

Estimated Coefficients:
Estimate       SE       tStat       pValue
________    ________    ______    __________

(Intercept)    0.70642     0.088702     7.964    1.6653e-15
CustIncome      1.0268      0.25758    3.9862    6.7132e-05
TmWBank         1.0973      0.31294    3.5063     0.0004543
AMBalance       1.0039      0.37576    2.6717     0.0075464

1200 observations, 1196 error degrees of freedom
Dispersion: 1
Chi^2-statistic vs. constant model: 36.4, p-value = 6.22e-08

Format the unscaled points.

sc = formatpoints(sc, 'PointsOddsAndPDO',[500,2,50]);

Score the data.

scores = score(sc);

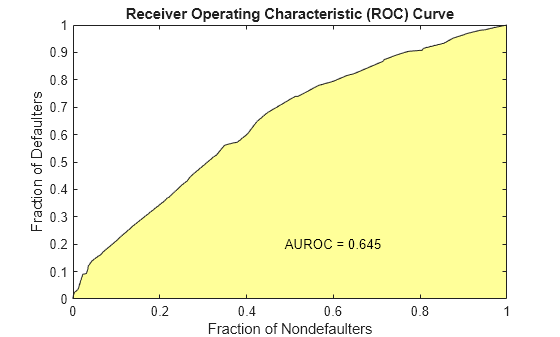

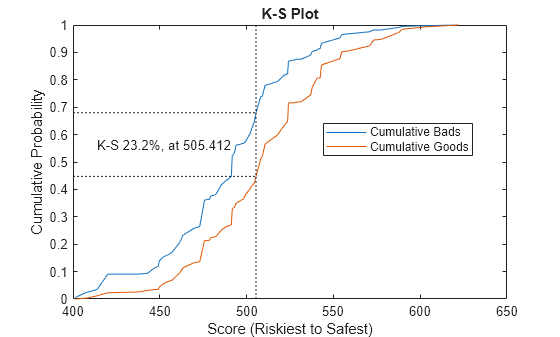

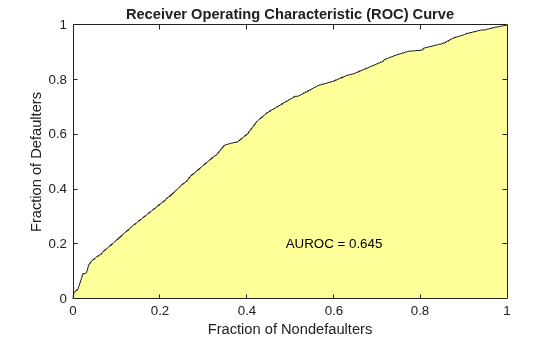

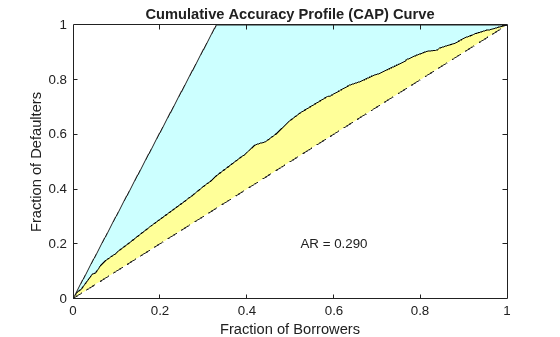

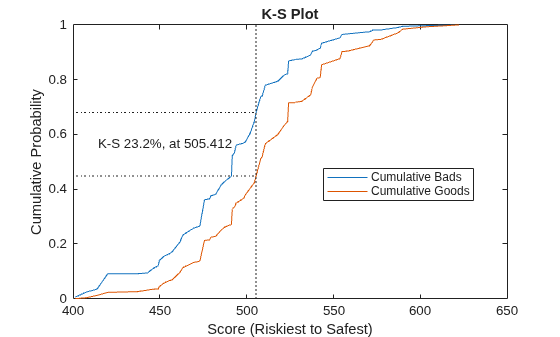

Validate the credit scorecard model by generating the CAP, ROC, and KS plots. When the optional name-value pair argument 'WeightsVar' is used to specify observation (sample) weights, the T table uses statistics, sums, and cumulative sums that are weighted counts.

[Stats,T] = validatemodel(sc,'Plot',{'CAP','ROC','KS'});

Stats
Stats=4×2 table
Measure              Value
________________________    _______

{'Accuracy Ratio'      }    0.28972
{'Area under ROC curve'}    0.64486
{'KS statistic'        }    0.23215
{'KS score'            }     505.41

T(1:10,:)
ans=10×9 table
______    ___________    ________    _________    _________    __________    ___________    __________    _________

401.34      0.66253       1.0788           0       411.95        201.95       0.0053135             0     0.0017542
407.59      0.64289       4.8363      1.2768       410.67        198.19        0.023821     0.0030995     0.0099405
413.79      0.62292       6.9469      4.6942       407.25        196.08        0.034216      0.011395      0.018929
420.04      0.60236       18.459      9.3899       402.56        184.57        0.090918      0.022794      0.045285
437.27        0.544       18.459      10.514       401.43        184.57        0.090918      0.025523      0.047113
442.83      0.52481       18.973      12.794       399.15        184.06        0.093448      0.031057      0.051655
446.19      0.51319       22.396       14.15        397.8        180.64         0.11031      0.034349      0.059426
449.08      0.50317       24.325      14.405       397.54        178.71         0.11981      0.034968      0.062978
449.73      0.50095       28.246      18.049        393.9        174.78         0.13912      0.043813      0.075279
452.44      0.49153       31.511      23.565       388.38        171.52          0.1552      0.057204      0.089557

This example describes both the assignment of points for missing data when the 'BinMissingData' option is set to true, and the corresponding computation of model validation statistics.

• Predictors that have missing data in the training set have an explicit bin for <missing> with corresponding points in the final scorecard. These points are computed from the Weight-of-Evidence (WOE) value for the <missing> bin and the logistic model coefficients. For scoring purposes, these points are assigned to missing values and to out-of-range values, and the final score is used to compute model validation statistics with validatemodel.

• Predictors with no missing data in the training set have no <missing> bin, therefore no WOE can be estimated from the training data. By default, the points for missing and out-of-range values are set to NaN, and this leads to a score of NaN when running score. For predictors that have no explicit <missing> bin, use the name-value argument 'Missing' in formatpoints to indicate how missing data should be treated for scoring purposes. The final score is used to compute model validation statistics with validatemodel.

Create a creditscorecard object using the CreditCardData.mat file to load the dataMissing with missing values.

ans=5×11 table
CustID    CustAge    TmAtAddress     ResStatus     EmpStatus    CustIncome    TmWBank    OtherCC    AMBalance    UtilRate    status
______    _______    ___________    ___________    _________    __________    _______    _______    _________    ________    ______

1          53          62         <undefined>    Unknown        50000         55         Yes       1055.9        0.22        0
2          61          22         Home Owner     Employed       52000         25         Yes       1161.6        0.24        0
3          47          30         Tenant         Employed       37000         61         No        877.23        0.29        0
4         NaN          75         Home Owner     Employed       53000         20         Yes       157.37        0.08        0
5          68          56         Home Owner     Employed       53000         14         Yes       561.84        0.11        0

Use creditscorecard with the name-value argument 'BinMissingData' set to true to bin the missing numeric or categorical data in a separate bin. Apply automatic binning.

sc = creditscorecard(dataMissing,'IDVar','CustID','BinMissingData',true);
sc = autobinning(sc);

disp(sc)
creditscorecard with properties:

GoodLabel: 0
ResponseVar: 'status'
WeightsVar: ''
VarNames: {1x11 cell}
NumericPredictors: {1x6 cell}
CategoricalPredictors: {'ResStatus'  'EmpStatus'  'OtherCC'}
BinMissingData: 1
IDVar: 'CustID'
PredictorVars: {1x9 cell}
Data: [1200x11 table]

Set a minimum value of zero for CustAge and CustIncome. With this, any negative age or income information becomes invalid or "out-of-range". For scoring and probability of default computations, out-of-range values are given the same points as missing values.

sc = modifybins(sc,'CustAge','MinValue',0);
sc = modifybins(sc,'CustIncome','MinValue',0);

Display bin information for numeric data for 'CustAge' that includes missing data in a separate bin labelled <missing>.

bi = bininfo(sc,'CustAge');
disp(bi)
Bin         Good    Bad     Odds       WOE       InfoValue
_____________    ____    ___    ______    ________    __________

{'[0,33)'   }     69      52    1.3269    -0.42156      0.018993
{'[33,37)'  }     63      45       1.4    -0.36795      0.012839
{'[37,40)'  }     72      47    1.5319     -0.2779     0.0079824
{'[40,46)'  }    172      89    1.9326    -0.04556     0.0004549
{'[46,48)'  }     59      25      2.36     0.15424     0.0016199
{'[48,51)'  }     99      41    2.4146     0.17713     0.0035449
{'[51,58)'  }    157      62    2.5323     0.22469     0.0088407
{'[58,Inf]' }     93      25      3.72     0.60931      0.032198
{'<missing>'}     19      11    1.7273    -0.15787    0.00063885
{'Totals'   }    803     397    2.0227         NaN      0.087112

Display bin information for categorical data for 'ResStatus' that includes missing data in a separate bin labelled <missing>.

bi = bininfo(sc,'ResStatus');
disp(bi)
Bin          Good    Bad     Odds        WOE       InfoValue
______________    ____    ___    ______    _________    __________

{'Tenant'    }    296     161    1.8385    -0.095463     0.0035249
{'Home Owner'}    352     171    2.0585     0.017549    0.00013382
{'Other'     }    128      52    2.4615      0.19637     0.0055808
{'<missing>' }     27      13    2.0769     0.026469    2.3248e-05
{'Totals'    }    803     397    2.0227          NaN     0.0092627

For the 'CustAge' and 'ResStatus' predictors, there is missing data (NaNs and <undefined>) in the training data, and the binning process estimates a WOE value of -0.15787 and 0.026469 respectively for missing data in these predictors, as shown above.

For EmpStatus and CustIncome there is no explicit bin for missing values, because the training data has no missing values for these predictors.

bi = bininfo(sc,'EmpStatus');
disp(bi)
Bin         Good    Bad     Odds       WOE       InfoValue
____________    ____    ___    ______    ________    _________

{'Unknown' }    396     239    1.6569    -0.19947    0.021715
{'Employed'}    407     158    2.5759      0.2418    0.026323
{'Totals'  }    803     397    2.0227         NaN    0.048038
bi = bininfo(sc,'CustIncome');
disp(bi)
Bin           Good    Bad     Odds         WOE       InfoValue
_________________    ____    ___    _______    _________    __________

{'[0,29000)'    }     53      58    0.91379     -0.79457       0.06364
{'[29000,33000)'}     74      49     1.5102     -0.29217     0.0091366
{'[33000,35000)'}     68      36     1.8889     -0.06843    0.00041042
{'[35000,40000)'}    193      98     1.9694    -0.026696    0.00017359
{'[40000,42000)'}     68      34          2    -0.011271    1.0819e-05
{'[42000,47000)'}    164      66     2.4848      0.20579     0.0078175
{'[47000,Inf]'  }    183      56     3.2679      0.47972      0.041657
{'Totals'       }    803     397     2.0227          NaN       0.12285

Use fitmodel to fit a logistic regression model using Weight of Evidence (WOE) data. fitmodel internally transforms all the predictor variables into WOE values, using the bins found with the automatic binning process. fitmodel then fits a logistic regression model using a stepwise method (by default). For predictors that have missing data, there is an explicit <missing> bin, with a corresponding WOE value computed from the data. When using fitmodel, the corresponding WOE value for the <missing> bin is applied when performing the WOE transformation.

[sc,mdl] = fitmodel(sc);
1. Adding CustIncome, Deviance = 1490.8527, Chi2Stat = 32.588614, PValue = 1.1387992e-08
2. Adding TmWBank, Deviance = 1467.1415, Chi2Stat = 23.711203, PValue = 1.1192909e-06
3. Adding AMBalance, Deviance = 1455.5715, Chi2Stat = 11.569967, PValue = 0.00067025601
4. Adding EmpStatus, Deviance = 1447.3451, Chi2Stat = 8.2264038, PValue = 0.0041285257
5. Adding CustAge, Deviance = 1442.8477, Chi2Stat = 4.4974731, PValue = 0.033944979
6. Adding ResStatus, Deviance = 1438.9783, Chi2Stat = 3.86941, PValue = 0.049173805
7. Adding OtherCC, Deviance = 1434.9751, Chi2Stat = 4.0031966, PValue = 0.045414057

Generalized linear regression model:
status ~ [Linear formula with 8 terms in 7 predictors]
Distribution = Binomial

Estimated Coefficients:
Estimate       SE       tStat       pValue
________    ________    ______    __________

(Intercept)    0.70229     0.063959     10.98    4.7498e-28
CustAge        0.57421      0.25708    2.2335      0.025513
ResStatus       1.3629      0.66952    2.0356       0.04179
EmpStatus      0.88373       0.2929    3.0172      0.002551
CustIncome     0.73535       0.2159     3.406    0.00065929
TmWBank         1.1065      0.23267    4.7556    1.9783e-06
OtherCC         1.0648      0.52826    2.0156      0.043841
AMBalance       1.0446      0.32197    3.2443     0.0011775

1200 observations, 1192 error degrees of freedom
Dispersion: 1
Chi^2-statistic vs. constant model: 88.5, p-value = 2.55e-16

Scale the scorecard points by the "points, odds, and points to double the odds (PDO)" method using the 'PointsOddsAndPDO' argument of formatpoints. Suppose that you want a score of 500 points to have odds of 2 (twice as likely to be good than to be bad) and that the odds double every 50 points (so that 550 points would have odds of 4).

Display the scorecard showing the scaled points for predictors retained in the fitting model.

sc = formatpoints(sc,'PointsOddsAndPDO',[500 2 50]);
PointsInfo = displaypoints(sc)
PointsInfo=38×3 table
Predictors           Bin          Points
_____________    ______________    ______

{'CustAge'  }    {'[0,33)'    }    54.062
{'CustAge'  }    {'[33,37)'   }    56.282
{'CustAge'  }    {'[37,40)'   }    60.012
{'CustAge'  }    {'[40,46)'   }    69.636
{'CustAge'  }    {'[46,48)'   }    77.912
{'CustAge'  }    {'[48,51)'   }     78.86
{'CustAge'  }    {'[51,58)'   }     80.83
{'CustAge'  }    {'[58,Inf]'  }     96.76
{'CustAge'  }    {'<missing>' }    64.984
{'ResStatus'}    {'Tenant'    }    62.138
{'ResStatus'}    {'Home Owner'}    73.248
{'ResStatus'}    {'Other'     }    90.828
{'ResStatus'}    {'<missing>' }    74.125
{'EmpStatus'}    {'Unknown'   }    58.807
{'EmpStatus'}    {'Employed'  }    86.937
{'EmpStatus'}    {'<missing>' }       NaN
⋮

Notice that points for the <missing> bin for CustAge and ResStatus are explicitly shown (as 64.9836 and 74.1250, respectively). These points are computed from the WOE value for the <missing> bin, and the logistic model coefficients.

For predictors that have no missing data in the training set, there is no explicit <missing> bin. By default the points are set to NaN for missing data, and they lead to a score of NaN when running score. For predictors that have no explicit <missing> bin, use the name-value argument 'Missing' in formatpoints to indicate how missing data should be treated for scoring purposes.

For the purpose of illustration, take a few rows from the original data as test data and introduce some missing data. Also introduce some invalid, or out-of-range, values. For numeric data, values below the minimum (or above the maximum) allowed are considered invalid, such as a negative value for age (recall 'MinValue' was earlier set to 0 for CustAge and CustIncome). For categorical data, invalid values are categories not explicitly included in the scorecard, for example, a residential status not previously mapped to scorecard categories, such as "House", or a meaningless string such as "abc123".

This is a very small validation data set, only used to illustrate the scoring of rows with missing and out-of-range values, and its relationship with model validation.

tdata = dataMissing(11:18,mdl.PredictorNames); % Keep only the predictors retained in the model
tdata.status = dataMissing.status(11:18); % Copy the response variable value, needed for validation purposes
% Set some missing values
tdata.CustAge(1) = NaN;
tdata.ResStatus(2) = '<undefined>';
tdata.EmpStatus(3) = '<undefined>';
tdata.CustIncome(4) = NaN;
% Set some invalid values
tdata.CustAge(5) = -100;
tdata.ResStatus(6) = 'House';
tdata.EmpStatus(7) = 'Freelancer';
tdata.CustIncome(8) = -1;
disp(tdata)
CustAge     ResStatus      EmpStatus     CustIncome    TmWBank    OtherCC    AMBalance    status
_______    ___________    ___________    __________    _______    _______    _________    ______

NaN      Tenant         Unknown          34000         44         Yes        119.8        1
48      <undefined>    Unknown          44000         14         Yes       403.62        0
65      Home Owner     <undefined>      48000          6         No        111.88        0
44      Other          Unknown            NaN         35         No        436.41        0
-100      Other          Employed         46000         16         Yes       162.21        0
33      House          Employed         36000         36         Yes       845.02        0
39      Tenant         Freelancer       34000         40         Yes       756.26        1
24      Home Owner     Employed            -1         19         Yes       449.61        0

Score the new data and see how points are assigned for missing CustAge and ResStatus, because we have an explicit bin with points for <missing>. However, for EmpStatus and CustIncome the score function sets the points to NaN.

The validation results are unreliable, the scores with NaN values are kept (see the validation table ValTable below), but it is unclear what impact these NaN values have in the validation statistics (ValStats). This is a very small validation data set, but NaN scores could still influence the validation results on a larger data set.

[Scores,Points] = score(sc,tdata);
disp(Scores)
481.2231
520.8353
NaN
NaN
551.7922
487.9588
NaN
NaN
disp(Points)
CustAge    ResStatus    EmpStatus    CustIncome    TmWBank    OtherCC    AMBalance
_______    _________    _________    __________    _______    _______    _________

64.984      62.138       58.807        67.893      61.858     75.622      89.922
78.86      74.125       58.807        82.439      61.061     75.622      89.922
96.76      73.248          NaN        96.969      51.132     50.914      89.922
69.636      90.828       58.807           NaN      61.858     50.914      89.922
64.984      90.828       86.937        82.439      61.061     75.622      89.922
56.282      74.125       86.937        70.107      61.858     75.622      63.028
60.012      62.138          NaN        67.893      61.858     75.622      63.028
54.062      73.248       86.937           NaN      61.061     75.622      89.922
[ValStats,ValTable] = validatemodel(sc,tdata);
disp(ValStats)
Measure              Value
________________________    _______

{'Accuracy Ratio'      }    0.16667
{'Area under ROC curve'}    0.58333
{'KS statistic'        }        0.5
{'KS score'            }     481.22
disp(ValTable)
______    ___________    ________    _________    _________    __________    ___________    __________    ______

NaN          NaN         0            1            5            2               0         0.16667      0.125
NaN          NaN         0            2            4            2               0         0.33333       0.25
NaN          NaN         1            2            4            1             0.5         0.33333      0.375
NaN          NaN         1            3            3            1             0.5             0.5        0.5
481.22      0.39345         2            3            3            0               1             0.5      0.625
487.96       0.3714         2            4            2            0               1         0.66667       0.75
520.84       0.2725         2            5            1            0               1         0.83333      0.875
551.79      0.19605         2            6            0            0               1               1          1

Use the name-value argument 'Missing' in formatpoints to choose how to assign points to missing values for predictors that do not have an explicit <missing> bin. In this example, use the 'MinPoints' option for the 'Missing' argument. The minimum points for EmpStatus in the scorecard displayed above are 58.8072 and for CustIncome the minimum points are 29.3753.

The validation results are no longer influenced by NaN values, since all rows now have a score.

sc = formatpoints(sc,'Missing','MinPoints');
[Scores,Points] = score(sc,tdata);
disp(Scores)
481.2231
520.8353
517.7532
451.3405
551.7922
487.9588
449.3577
470.2267
disp(Points)
CustAge    ResStatus    EmpStatus    CustIncome    TmWBank    OtherCC    AMBalance
_______    _________    _________    __________    _______    _______    _________

64.984      62.138       58.807        67.893      61.858     75.622      89.922
78.86      74.125       58.807        82.439      61.061     75.622      89.922
96.76      73.248       58.807        96.969      51.132     50.914      89.922
69.636      90.828       58.807        29.375      61.858     50.914      89.922
64.984      90.828       86.937        82.439      61.061     75.622      89.922
56.282      74.125       86.937        70.107      61.858     75.622      63.028
60.012      62.138       58.807        67.893      61.858     75.622      63.028
54.062      73.248       86.937        29.375      61.061     75.622      89.922
[ValStats,ValTable] = validatemodel(sc,tdata);
disp(ValStats)
Measure              Value
________________________    _______

{'Accuracy Ratio'      }    0.66667
{'Area under ROC curve'}    0.83333
{'KS statistic'        }    0.66667
{'KS score'            }     481.22
disp(ValTable)
______    ___________    ________    _________    _________    __________    ___________    __________    ______

449.36      0.50223         1            0            6            1             0.5               0      0.125
451.34      0.49535         1            1            5            1             0.5         0.16667       0.25
470.23      0.43036         1            2            4            1             0.5         0.33333      0.375
481.22      0.39345         2            2            4            0               1         0.33333        0.5
487.96       0.3714         2            3            3            0               1             0.5      0.625
517.75      0.28105         2            4            2            0               1         0.66667       0.75
520.84       0.2725         2            5            1            0               1         0.83333      0.875
551.79      0.19605         2            6            0            0               1               1          1

Input Arguments

collapse all

Credit scorecard model, specified as a creditscorecard object. To create this object, use creditscorecard.

(Optional) Validation data, specified as a MATLAB® table, where each table row corresponds to individual observations. The data must contain columns for each of the predictors in the credit scorecard model. The columns of data can be any one of the following data types:

• Numeric

• Logical

• Cell array of character vectors

• Character array

• Categorical

• String

• String array

In addition, the table must contain a binary response variable.

Note

When observation weights are defined using the optional WeightsVar name-value pair argument when creating a creditscorecard object, the weights stored in the WeightsVar column are used when validating the model on the training data. If a different validation data set is provided using the optional data input, observation weights for the validation data must be included in a column whose name matches WeightsVar, otherwise unit weights are used for the validation data. For more information, see Using validatemodel with Weights.

Data Types: table

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: sc = validatemodel(sc,data,'AnalysisLevel','Deciles','Plot','CAP')

Type of analysis level, specified as the comma-separated pair consisting of 'AnalysisLevel' and a character vector with one of the following values:

• 'Scores' — Returns the statistics (Stats) at the observation level. Scores are sorted from riskiest to safest, and duplicates are removed.

• 'Deciles' — Returns the statistics (Stats) at decile level. Scores are sorted from riskiest to safest and binned with their corresponding statistics into 10 deciles (10%, 20%, ..., 100%).

Data Types: char

Type of plot, specified as the comma-separated pair consisting of 'Plot' and a character vector with one of the following values:

• 'None' — No plot is displayed.

• 'CAP' — Cumulative Accuracy Profile. Plots the fraction of borrowers up to score “s” versus the fraction of defaulters up to score “s” ('PctObs' versus 'Sensitivity' columns of T optional output argument). For more details, see Cumulative Accuracy Profile (CAP).

• 'ROC' — Receiver Operating Characteristic. Plots the fraction of non-defaulters up to score “s” versus the fraction of defaulters up to score “s” ('FalseAlarm' versus 'Sensitivity' columns of T optional output argument). For more details, see Receiver Operating Characteristic (ROC).

• 'KS' — Kolmogorov-Smirnov. Plots each score “s” versus the fraction of defaulters up to score “s,” and also versus the fraction of non-defaulters up to score “s” ('Scores' versus both 'Sensitivity' and 'FalseAlarm' columns of the optional output argument T). For more details, see Kolmogorov-Smirnov statistic (KS).

Tip

For the Kolmogorov-Smirnov statistic option, you can enter 'KS' or 'K-S'.

Data Types: char | cell

Output Arguments

collapse all

Validation measures, returned as a 4-by-2 table. The first column, 'Measure', contains the names of the following measures:

• Accuracy ratio (AR)

• Area under the ROC curve (AUROC)

• The KS statistic

• KS score

The second column, 'Value', contains the values corresponding to these measures.

Validation statistics data, returned as an N-by-9 table of validation statistics data, sorted, by score, from riskiest to safest. When AnalysisLevel is set to 'Deciles', N is equal to 10. Otherwise, N is equal to the total number of unique scores, that is, scores without duplicates.

The table T contains the following nine columns, in this order:

• 'Scores' — Scores sorted from riskiest to safest. The data in this row corresponds to all observations up to, and including the score in this row.

• 'ProbDefault' — Probability of default for observations in this row. For deciles, the average probability of default for all observations in the given decile is reported.

• 'TrueBads' — Cumulative number of “bads” up to, and including, the corresponding score.

• 'FalseBads' — Cumulative number of “goods” up to, and including, the corresponding score.

• 'TrueGoods' — Cumulative number of “goods” above the corresponding score.

• 'FalseGoods' — Cumulative number of “bads” above the corresponding score.

• 'Sensitivity' — Fraction of defaulters (or the cumulative number of “bads” divided by total number of “bads”). This is the distribution of “bads” up to and including the corresponding score.

• 'FalseAlarm' — Fraction of non-defaulters (or the cumulative number of “goods” divided by total number of “goods”). This is the distribution of “goods” up to and including the corresponding score.

• 'PctObs' — Fraction of borrowers, or the cumulative number of observations, divided by total number of observations up to and including the corresponding score.

Note

When creating the creditscorecard object with creditscorecard, if the optional name-value pair argument WeightsVar was used to specify observation (sample) weights, then the T table uses statistics, sums, and cumulative sums that are weighted counts.

Figure handle to plotted measures, returned as a figure handle or array of handles. When Plot is set to 'None', hf is an empty array.

collapse all

Cumulative Accuracy Profile (CAP)

CAP is generally a concave curve and is also known as the Gini curve, Power curve, or Lorenz curve.

The scores of given observations are sorted from riskiest to safest. For a given fraction M (0% to 100%) of the total borrowers, the height of the CAP curve is the fraction of defaulters whose scores are less than or equal to the maximum score of the fraction M, also known as “Sensitivity.”

The area under the CAP curve, known as the AUCAP, is then compared to that of the perfect or “ideal” model, leading to the definition of a summary index known as the accuracy ratio (AR) or the Gini coefficient:

$AR=\frac{{A}_{R}}{{A}_{P}}$

where AR is the area between the CAP curve and the diagonal, and AP is the area between the perfect model and the diagonal. This represents a “random” model, where scores are assigned randomly and therefore the proportion of defaulters and non-defaulters is independent of the score. The perfect model is the model for which all defaulters are assigned the lowest scores, and therefore, perfectly discriminates between defaulters and nondefaulters. Thus, the closer to unity AR is, the better the scoring model.

To find the receiver operating characteristic (ROC) curve, the proportion of defaulters up to a given score “s,” or “Sensitivity,” is computed.

This proportion is known as the true positive rate (TPR). Additionally, the proportion of nondefaulters up to score “s,“ or “False Alarm Rate,” is also computed. This proportion is also known as the false positive rate (FPR). The ROC curve is the plot of the “Sensitivity” vs. the “False Alarm Rate.” Computing the ROC curve is similar to computing the equivalent of a confusion matrix at each score level.

Similar to the CAP, the ROC has a summary statistic known as the area under the ROC curve (AUROC). The closer to unity, the better the scoring model. The accuracy ratio (AR) is related to the area under the curve by the following formula:

$AR=2\left(AUROC\right)-1$

Kolmogorov-Smirnov statistic (KS)

The Kolmogorov-Smirnov (KS) plot, also known as the fish-eye graph, is a common statistic used to measure the predictive power of scorecards.

The KS plot shows the distribution of defaulters and the distribution of non-defaulters on the same plot. For the distribution of defaulters, each score “s” is plotted versus the proportion of defaulters up to “s," or “Sensitivity." For the distribution of non-defaulters, each score “s” is plotted versus the proportion of non-defaulters up to “s," or “False Alarm." The statistic of interest is called the KS statistic and is the maximum difference between these two distributions (“Sensitivity” minus “False Alarm”). The score at which this maximum is attained is also of interest.

Using validatemodel with Weights

Model validation statistics incorporate observation weights when these are provided by the user.

Without weights, the validation statistics are based on how many good and bad observations fall below a particular score. On the other hand, when observation weights are provided, the weight (not the count) is accumulated for the good and the bad observations that fall below a particular score.

When observation weights are defined using the optional WeightsVar name-value pair argument when creating a creditscorecard object, the weights stored in the WeightsVar column are used when validating the model on the training data. When a different validation data set is provided using the optional data input, observation weights for the validation data must be included in a column whose name matches WeightsVar, otherwise unit weights are used for the validation data set.

Not only the validation statistics, but also the credit scorecard scores themselves depend on the observation weights of the training data. For more information, see Using fitmodel with Weights and Credit Scorecard Modeling Using Observation Weights.

References

[1] “Basel Committee on Banking Supervision: Studies on the Validation of Internal Rating Systems.” Working Paper No. 14, February 2005.

[2] Refaat, M. Credit Risk Scorecards: Development and Implementation Using SAS. lulu.com, 2011.

[3] Loeffler, G. and Posch, P. N. Credit Risk Modeling Using Excel and VBA. Wiley Finance, 2007.

Introduced in R2015a
