claimsPlot

Plot claims for development triangle

Description

example

claimsPlot(dT) plots one line for each origin period for all development periods.

example

claimsPlot(dT,Name,Value) specifies options using one or more name-value pair arguments in addition to the input arguments in the previous syntax.

example

h = claimsPlot(ax,___) additionally returns the figure handle h. Use this syntax with any of the input arguments in previous syntaxes.

Examples

collapse all

Generate a line plot of cumulative claims for each of the development periods using a developmentTriangle object containing simulated insurance claims data.

load InsuranceClaimsData.mat;
head(data)
ans=8×4 table
    OriginYear    DevelopmentYear    ReportedClaims    PaidClaims
    __________    _______________    ______________    __________

       2010             12               3995.7          1893.9
       2010             24                 4635          3371.2
       2010             36               4866.8          4079.1
       2010             48               4964.1            4487
       2010             60               5013.7          4711.4
       2010             72               5038.8          4805.6
       2010             84                 5059          4853.7
       2010             96               5074.1          4877.9

Use developmentTriangle to convert the data to a development triangle, which is the standard form for representing claims data.

dT = developmentTriangle(data)
dT =
  developmentTriangle with properties:

                          Origin: {10x1 cell}
                     Development: {10x1 cell}
                          Claims: [10x10 double]
                  LatestDiagonal: [10x1 double]
                     Description: ""
                      TailFactor: 1
    CumulativeDevelopmentFactors: [1.3069 1.1107 1.0516 1.0261 1.0152 ... ]
               SelectedLinkRatio: [1.1767 1.0563 1.0249 1.0107 1.0054 ... ]

Use the claimsPlot function to generate a line plot of cumulative claims.

claimsPlot(dT)

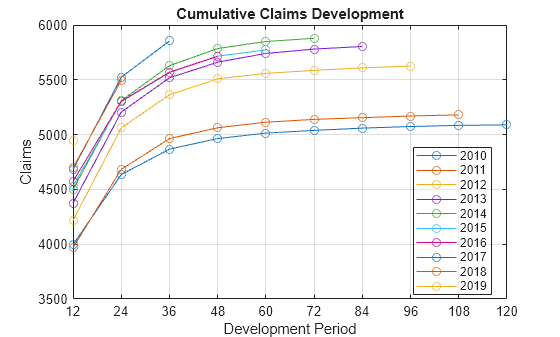

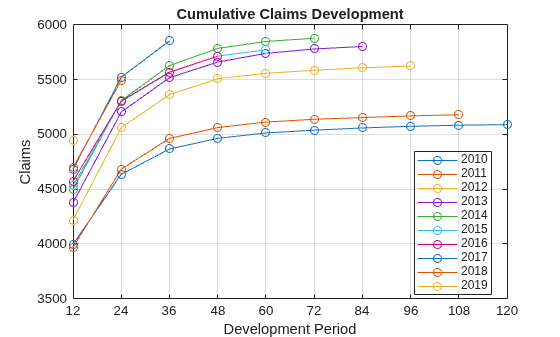

Figure contains an axes object. The axes object with title Cumulative Claims Development contains 10 objects of type line. These objects represent 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019.

Input Arguments

collapse all

Development triangle, specified as a previously created developmentTriangle object.

Data Types: object

(Optional) Valid axis object, specified as an ax object created using axes. The function creates the plot on the axes specified by the optional ax argument instead of on the current axes (gca). The optional argument ax must precede any of the input argument combinations.

Data Types: object

Name-Value Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: claimsPlot(dT,'Cumulative',false)

Cumulative claims, specified as the comma-separated pair consisting of 'Cumulative' and a logical value.

Data Types: logical

Output Arguments

collapse all

Figure handle for line objects, returned as a handle object.

Introduced in R2021a
