# fairnessThresholder

## Description

`fairnessThresholder`

searches for an optimal score threshold
to maximize accuracy while satisfying fairness bounds. For observations in the critical region
below the optimal threshold, the function adjusts the labels so that the fairness constraints
hold for the reference and nonreference groups in the sensitive attribute. After you create a
`fairnessThresholder`

object, you can use the `predict`

and
`loss`

object
functions on new data to predict fairness labels and calculate the classification loss,
respectively.

## Creation

### Syntax

### Description

optimizes the score threshold for a binary classifier `fairnessMdl`

= fairnessThresholder(`Mdl`

,`Tbl`

,`AttributeName`

,`ResponseVarName`

)`Mdl`

while
satisfying fairness bounds. The function tries a vector of thresholds for classifying
observations in the validation data table `Tbl`

with the class labels
in the `ResponseVarName`

table variable. For observations in the
critical region below the optimal threshold, the function adjusts the labels so that the
fairness constraints hold for the reference and nonreference groups in the
`AttributeName`

sensitive attribute. For more information, see Reject Option-Based Classification.

specifies options using one or more name-value arguments in addition to any of the input
argument combinations in previous syntaxes. For example, specify the bias metric by using
the `fairnessMdl`

= fairnessThresholder(___,`Name=Value`

)`BiasMetric`

name-value argument.

### Input Arguments

`Mdl`

— Binary classifier

classification model object | function handle

Binary classifier, specified as a full or compact classification model object or a function handle.

Full or compact model object — You can specify a full or compact classification model object, which has a

`predict`

object function. When you train a model, use a numeric matrix or table for the predictor data where rows correspond to individual observations.Supported Model Full or Compact Classification Model Object Discriminant analysis classifier `ClassificationDiscriminant`

,`CompactClassificationDiscriminant`

Ensemble of learners for classification `ClassificationEnsemble`

,`CompactClassificationEnsemble`

,`ClassificationBaggedEnsemble`

Gaussian kernel classification model using random feature expansion `ClassificationKernel`

Generalized additive model `ClassificationGAM`

,`CompactClassificationGAM`

*k*-nearest neighbor classifier`ClassificationKNN`

Linear classification model `ClassificationLinear`

Naive Bayes model `ClassificationNaiveBayes`

,`CompactClassificationNaiveBayes`

Neural network classifier `ClassificationNeuralNetwork`

,`CompactClassificationNeuralNetwork`

Support vector machine classifier for binary classification `ClassificationSVM`

,`CompactClassificationSVM`

Binary decision tree for classification `ClassificationTree`

,`CompactClassificationTree`

Function handle — You can specify a function handle that accepts predictor data and returns a column vector containing a predicted score for each observation in the predictor data. Each predicted score must have a value between 0 and 1, where a score in the range [0, 0.5] corresponds to the negative class, and a score in the range (0.5, 1] corresponds to the positive class. You must specify the positive class using the

`PositiveClass`

name-value argument.

`Tbl`

— Validation data set

table

Validation data set, specified as a table. Each row of `Tbl`

corresponds to one observation, and each column corresponds to one variable. The table
must include all predictor variables used to train `Mdl`

, the
sensitive attribute, and the response variable. The table can include additional
variables, such as observation weights. Multicolumn variables and cell arrays other
than cell arrays of character vectors are not allowed.

**Data Types: **`table`

`AttributeName`

— Sensitive attribute name

name of variable in `Tbl`

Sensitive attribute name, specified as the name of a variable in
`Tbl`

. You must specify `AttributeName`

as a
character vector or a string scalar. For example, if the sensitive attribute is stored
as `Tbl.Attribute`

, then specify it as
`"Attribute"`

.

The sensitive attribute must be a numeric vector, logical vector, character array, string array, cell array of character vectors, or categorical vector.

**Data Types: **`char`

| `string`

`ResponseVarName`

— Response variable name

name of variable in `Tbl`

Response variable name, specified as the name of a variable in
`Tbl`

. You must specify `ResponseVarName`

as a
character vector or a string scalar. For example, if the response variable is stored
as `Tbl.Y`

, then specify it as `"Y"`

.

The response variable must be a numeric vector, logical vector, character array,
string array, cell array of character vectors, or categorical vector. The data type
must be the same as the data type of the response variable used to train
`Mdl`

.

**Data Types: **`char`

| `string`

`X`

— Validation predictor data

numeric matrix

Validation predictor data, specified as a numeric matrix. Each row of
`X`

corresponds to one observation, and each column corresponds
to one predictor variable.

`X`

,`attribute`

, and`Y`

must have the same number of rows.The columns of

`X`

must have the same order as the predictor variables used to train`Mdl`

.

**Data Types: **`single`

| `double`

`attribute`

— Sensitive attribute

numeric column vector | logical column vector | character array | string array | cell array of character vectors | categorical column vector

Sensitive attribute, specified as a numeric column vector, logical column vector, character array, string array, cell array of character vectors, or categorical column vector.

`X`

,`attribute`

, and`Y`

must have the same number of rows.If

`attribute`

is a character array, then each row of the array must correspond to a group in the sensitive attribute.

**Data Types: **`single`

| `double`

| `logical`

| `char`

| `string`

| `cell`

| `categorical`

`Y`

— Class labels

numeric column vector | logical column vector | character array | string array | cell array of character vectors | categorical column vector

Class labels, specified as a numeric column vector, logical column vector, character array, string array, cell array of character vectors, or categorical column vector.

`X`

,`attribute`

, and`Y`

must have the same number of rows.If

`Y`

is a character array, then each row of the array must correspond to a class label.The data type of

`Y`

must be the same as the data type of the response variable used to train`Mdl`

.If

`Mdl`

is a classification model object, then the distinct classes in`Y`

must be a subset of the classes in`Mdl.ClassNames`

.

**Data Types: **`single`

| `double`

| `logical`

| `char`

| `string`

| `cell`

| `categorical`

`threshold`

— Score threshold

numeric scalar

Score threshold, specified as a numeric scalar.
`fairnessThresholder`

adjusts the label for each observation
whose maximum score is less than the `threshold`

value.

If

`Mdl`

or its`predict`

object function returns classification scores that are posterior probabilities, then specify a`threshold`

value in the range [0.5, 1].If the

`predict`

object function of`Mdl`

returns classification scores in the range (–∞,∞), then specify a nonnegative`threshold`

value.

**Data Types: **`single`

| `double`

**Name-Value Arguments**

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

**Example: **```
fairnessThresholder(Mdl,Tbl,"Gender","Smoker",BiasMetric="spd",BiasMetricRange=[–0.1
0.1])
```

specifies to find a score threshold so that the statistical parity
difference for the nonreference group in the `Gender`

sensitive attribute
is in the range [–0.1, 0.1].

`BiasMetric`

— Bias metric

`"DisparateImpact"`

or
`"di"`

(default) | `"AverageAbsoluteOddsDifference"`

or
`"aaod"`

| `"EqualOpportunityDifference"`

or
`"eod"`

| `"StatisticalParityDifference"`

or
`"spd"`

Bias metric to use as a fairness constraint during the threshold optimization, specified as one of the metric names in this table.

Metric Name | Description |
---|---|

`"DisparateImpact"` or `"di"`
(default) | Disparate impact (DI) |

`"AverageAbsoluteOddsDifference"` or
`"aaod"` | Average absolute odds difference (AAOD) |

`"EqualOpportunityDifference"` or
`"eod"` | Equal opportunity difference (EOD) |

`"StatisticalParityDifference"` or
`"spd"` | Statistical parity difference (SPD) |

For more information on the bias metric definitions, see Bias Metrics.

The `fairnessThresholder`

function computes the bias metric
for the nonreference group (that is, the complement of
`ReferenceGroups`

) and checks whether the value is within the
bias metric bounds (`BiasMetricRange`

).

**Example: **`BiasMetric="spd"`

**Example: **`BiasMetric="EqualOpportunityDifference"`

**Data Types: **`char`

| `string`

`BiasMetricRange`

— Bounds on bias metric

two-element numeric vector

Bounds on the bias metric to use as constraints during the threshold optimization, specified as a two-element numeric vector. This table describes the supported bias metric values and the default bias metric bounds for each bias metric.

Metric Name | Supported Bias Metric Values | Default `BiasMetricRange` Value |
---|---|---|

`"DisparateImpact"` or
`"di"` | [0, ∞) | [0.8, 1.25] |

`"AverageAbsoluteOddsDifference"` or
`"aaod"` | [0, 1] | [0, 0.05] |

`"EqualOpportunityDifference"` or
`"eod"` | [–1, 1] | [–0.05, 0.05] |

`"StatisticalParityDifference"` or
`"spd"` | [–1, 1] | [–0.05, 0.05] |

The `fairnessThresholder`

function computes the bias metric
(`BiasMetric`

) for the nonreference group (that is, the
complement of `ReferenceGroups`

) and checks whether the value is
within the bias metric bounds.

**Example: **`BiasMetricRange=[-0.1 0.1]`

**Data Types: **`single`

| `double`

`ReferenceGroups`

— Groups in sensitive attribute to use as reference group

scalar | vector

Groups in the sensitive attribute to use as the reference group when computing
bias metrics, specified as a scalar or a vector. By default,
`fairnessThresholder`

chooses the most frequently occurring
group in the validation data as the reference group. Each element in the
`ReferenceGroups`

value must have the same data type as the
sensitive attribute.

The function uses a technique designed for binary sensitive attributes that
contain a reference group and a nonreference group. Sensitive attribute groups not
in the `ReferenceGroups`

value form the nonreference
group.

**Example: **`ReferenceGroups=categorical(["Husband","Unmarried"])`

**Data Types: **`single`

| `double`

| `logical`

| `char`

| `string`

| `cell`

| `categorical`

`PositiveClass`

— Label of positive class

numeric scalar | logical scalar | character vector | string scalar | cell array containing one character vector | categorical scalar

Label of the positive class, specified as a numeric scalar, logical scalar,
character vector, string scalar, cell array containing one character vector, or
categorical scalar. `PositiveClass`

must have the same data type
as the true class label variable.

The default `PositiveClass`

value is the second class of the
binary labels, according to the order returned by the `unique`

function with the `"sorted"`

option specified
for the true class label variable.

**Example: **`PositiveClass=categorical(">50K")`

**Data Types: **`single`

| `double`

| `logical`

| `char`

| `string`

| `cell`

| `categorical`

`LossFun`

— Loss to minimize during threshold optimization

`"classiferror"`

(default) | `"classifcost"`

| function handle

Loss to minimize during the threshold optimization, specified as
`"classiferror"`

, `"classifcost"`

, or a function
handle.

This table lists the available loss functions. Specify one using its corresponding character vector or string scalar.

Value | Description | Equation |
---|---|---|

`"classifcost"` | Observed misclassification cost |
$$L=\frac{{\displaystyle \sum _{j=1}^{n}C\left({k}_{j},{\widehat{k}}_{j}\right)}\cdot I\left({y}_{j}\ne {\widehat{y}}_{j}\right)}{n}$$ |

`"classiferror"` | Misclassified rate in decimal |
$$L=\frac{{\displaystyle \sum _{j=1}^{n}I\left({y}_{j}\ne {\widehat{y}}_{j}\right)}}{n}$$ |

*C*is the misclassification cost matrix, and*I*is the indicator function. If`Mdl`

is a classification model object, the misclassification cost matrix corresponds to the`Cost`

property of`Mdl`

. If`Mdl`

is a function handle,*C*is the default cost matrix, and the loss values for`"classifcost"`

and`"classiferror"`

are identical.*y*is the true class label for observation_{j}*j*, and*y*belongs to class_{j}*k*._{j}$${\widehat{y}}_{j}$$ is the class label with the maximal predicted score for observation

*j*, and $${\widehat{y}}_{j}$$ belongs to class $${\widehat{k}}_{j}$$.*n*is the number of observations in the validation data set.

To specify a custom loss function, you must specify `Mdl`

as
a classification model object. Use function handle notation
(`@`

), where the function has
this form:`lossfun`

`lossvalue = ``lossfun`

(Class,Score,Cost)

The output argument

`lossvalue`

is a scalar.You specify the function name (

).`lossfun`

`Class`

is an`n`

-by-`K`

logical matrix with rows indicating the class to which the corresponding observation belongs.`n`

is the number of observations in`Tbl`

or`X`

, and`K`

is the number of distinct classes in the response variable. The column order corresponds to the class order in`Mdl.ClassNames`

. Create`Class`

by setting`Class(p,q) = 1`

, if observation`p`

is in class`q`

, for each row. Set all other elements of row`p`

to`0`

.`Score`

is an`n`

-by-`K`

numeric matrix of classification scores. The column order corresponds to the class order in`Mdl.ClassNames`

.`Score`

is a matrix of classification scores, similar to the output of`predict`

.`Cost`

is a`K`

-by-`K`

numeric matrix of misclassification costs. For example,`Cost = ones(K) – eye(K)`

specifies a cost of`0`

for correct classification and`1`

for misclassification.

**Example: **`LossFun="classifcost"`

**Data Types: **`char`

| `string`

| `function_handle`

`MaxNumThresholds`

— Maximum number of threshold values

`100`

(default) | positive integer

Maximum number of threshold values to evaluate during the threshold
optimization, specified as a positive integer.
`fairnessThresholder`

uses a vector of
`min(n,MaxNumThresholds)`

threshold values as part of the
optimization process, where `n`

is the number of observations in
the validation data.

**Example: **`MaxNumThresholds=250`

**Data Types: **`single`

| `double`

## Properties

`Learner`

— Binary classifier

classification model object | function handle

This property is read-only.

Binary classifier, returned as a full or compact classification model object or a function handle.

`SensitiveAttribute`

— Sensitive attribute

variable name | numeric column vector | logical column vector | character array | cell array of character vectors | categorical column vector

This property is read-only.

Sensitive attribute, returned as a variable name, numeric column vector, logical column vector, character array, cell array of character vectors, or categorical column vector.

If you use a table to create the

`fairnessThresholder`

object, then`SensitiveAttribute`

is the name of the sensitive attribute. The name is stored as a character vector.If you use a matrix to create the

`fairnessThresholder`

object, then`SensitiveAttribute`

has the same size and data type as the sensitive attribute used to create the object. (The software treats string arrays as cell arrays of character vectors.)

**Data Types: **`single`

| `double`

| `logical`

| `char`

| `cell`

| `categorical`

`ReferenceGroups`

— Groups in sensitive attribute to use as reference group

scalar | vector

This property is read-only.

Groups in the sensitive attribute to use as the reference group, returned as a scalar or vector. (The software treats string arrays as cell arrays of character vectors.)

The `ReferenceGroups`

name-value argument sets this property.

**Data Types: **`single`

| `double`

| `logical`

| `char`

| `cell`

| `categorical`

`ResponseName`

— Name of true class label variable

character vector

This property is read-only.

Name of the true class label variable, returned as a character vector containing the name of the response variable. (The software treats a string scalar as a character vector.)

If you specify the input argument

`ResponseVarName`

, then its value determines this property.If you specify the input argument

`Y`

, then the property value is`'Y'`

.

**Data Types: **`char`

`PositiveClass`

— Label of positive class

numeric scalar | logical scalar | character vector | cell array containing one character vector | categorical scalar

This property is read-only.

Label of the positive class, returned as a numeric scalar, logical scalar, character vector, cell array containing one character vector, or categorical scalar. (The software treats a string scalar as a character vector.)

The `PositiveClass`

name-value argument sets this property.

**Data Types: **`single`

| `double`

| `logical`

| `char`

| `cell`

| `categorical`

`ScoreThreshold`

— Score threshold

numeric scalar | `[]`

This property is read-only.

Score threshold, returned as a numeric scalar. The score threshold is the optimal
score threshold derived by `fairnessThresolder`

or the
`threshold`

input argument value.

The `ScoreThreshold`

property is empty when the original model
predictions already satisfy the fairness constraints or when all potential score
thresholds fail to satisfy the fairness constraints.

**Data Types: **`single`

| `double`

`BiasMetric`

— Bias metric

character vector

This property is read-only.

Bias metric, returned as a character vector.

The `BiasMetric`

name-value argument sets this property.

**Data Types: **`char`

`BiasMetricValue`

— Bias metric value for nonreference group

numeric scalar | `[]`

This property is read-only.

Bias metric value for the nonreference group, returned as a numeric scalar.
Sensitive attribute groups not in the `ReferenceGroups`

value form
the nonreference group.

`fairnessThresholder`

computes the bias metric value by using the
validation data set predictions, adjusted using the `ScoreThreshold`

value.

The `BiasMetricValue`

property is empty when the original model
predictions already satisfy the fairness constraints or when all potential score
thresholds fail to satisfy the fairness constraints.

**Data Types: **`double`

`BiasMetricRange`

— Bounds on bias metric

two-element numeric vector

This property is read-only.

Bounds on the bias metric, returned as a two-element numeric vector.

The `BiasMetricRange`

name-value argument sets this property.

**Data Types: **`single`

| `double`

`ValidationLoss`

— Validation classification loss

numeric scalar | `[]`

This property is read-only.

Validation classification loss, returned as a numeric scalar.
`fairnessThresholder`

computes the classification loss specified by the
`LossFun`

name-value argument. The function uses the validation data set predictions, adjusted
using the `ScoreThreshold`

value.

The `ValidationLoss`

property is empty when the original model
predictions already satisfy the fairness constraints or when all potential score
thresholds fail to satisfy the fairness constraints.

**Data Types: **`double`

## Object Functions

## Examples

### Adjust Score Threshold for Fairness

Train a tree ensemble for binary classification, and compute the disparate impact for each group in the sensitive attribute. To reduce the disparate impact value of the nonreference group, adjust the score threshold for classifying observations.

Load the data `census1994`

, which contains the data set `adultdata`

and the test data set `adulttest`

. The data sets consist of demographic information from the US Census Bureau that can be used to predict whether an individual makes over $50,000 per year. Preview the first few rows of `adultdata`

.

```
load census1994
head(adultdata)
```

age workClass fnlwgt education education_num marital_status occupation relationship race sex capital_gain capital_loss hours_per_week native_country salary ___ ________________ __________ _________ _____________ _____________________ _________________ _____________ _____ ______ ____________ ____________ ______________ ______________ ______ 39 State-gov 77516 Bachelors 13 Never-married Adm-clerical Not-in-family White Male 2174 0 40 United-States <=50K 50 Self-emp-not-inc 83311 Bachelors 13 Married-civ-spouse Exec-managerial Husband White Male 0 0 13 United-States <=50K 38 Private 2.1565e+05 HS-grad 9 Divorced Handlers-cleaners Not-in-family White Male 0 0 40 United-States <=50K 53 Private 2.3472e+05 11th 7 Married-civ-spouse Handlers-cleaners Husband Black Male 0 0 40 United-States <=50K 28 Private 3.3841e+05 Bachelors 13 Married-civ-spouse Prof-specialty Wife Black Female 0 0 40 Cuba <=50K 37 Private 2.8458e+05 Masters 14 Married-civ-spouse Exec-managerial Wife White Female 0 0 40 United-States <=50K 49 Private 1.6019e+05 9th 5 Married-spouse-absent Other-service Not-in-family Black Female 0 0 16 Jamaica <=50K 52 Self-emp-not-inc 2.0964e+05 HS-grad 9 Married-civ-spouse Exec-managerial Husband White Male 0 0 45 United-States >50K

Each row contains the demographic information for one adult. The information includes sensitive attributes, such as `age`

, `marital_status`

, `relationship`

, `race`

, and `sex`

. The third column `flnwgt`

contains observation weights, and the last column `salary`

shows whether a person has a salary less than or equal to $50,000 per year (`<=50K`

) or greater than $50,000 per year (`>50K`

).

Remove observations with missing values.

adultdata = rmmissing(adultdata); adulttest = rmmissing(adulttest);

Partition `adultdata`

into training and validation sets. Use 60% of the observations for the training set `trainingData`

and 40% of the observations for the validation set `validationData`

.

rng("default") % For reproducibility c = cvpartition(adultdata.salary,"Holdout",0.4); trainingIdx = training(c); validationIdx = test(c); trainingData = adultdata(trainingIdx,:); validationData = adultdata(validationIdx,:);

Train a boosted ensemble of trees using the training data set `trainingData`

. Specify the response variable, predictor variables, and observation weights by using the variable names in the `adultdata`

table. Use random undersampling boosting as the ensemble aggregation method.

predictors = ["capital_gain","capital_loss","education", ... "education_num","hours_per_week","occupation","workClass"]; Mdl = fitcensemble(trainingData,"salary", ... PredictorNames=predictors, ... Weights="fnlwgt",Method="RUSBoost");

Predict salary values for the observations in the test data set `adulttest`

, and calculate the classification error.

labels = predict(Mdl,adulttest); L = loss(Mdl,adulttest)

L = 0.2080

The model accurately predicts the salary categorization for approximately 80% of the test set observations.

Compute fairness metrics with respect to the sensitive attribute `sex`

by using the test set model predictions. In particular, find the disparate impact for each group in `sex`

. Use the `report`

and `plot`

object functions of `fairnessMetrics`

to display the results.

evaluator = fairnessMetrics(adulttest,"salary", ... SensitiveAttributeNames="sex",Predictions=labels, ... ModelNames="Ensemble",Weights="fnlwgt"); evaluator.PositiveClass

`ans = `*categorical*
>50K

evaluator.ReferenceGroup

ans = 'Male'

`report(evaluator,BiasMetrics="DisparateImpact")`

`ans=`*2×4 table*
ModelNames SensitiveAttributeNames Groups DisparateImpact
__________ _______________________ ______ _______________
Ensemble sex Female 0.73792
Ensemble sex Male 1

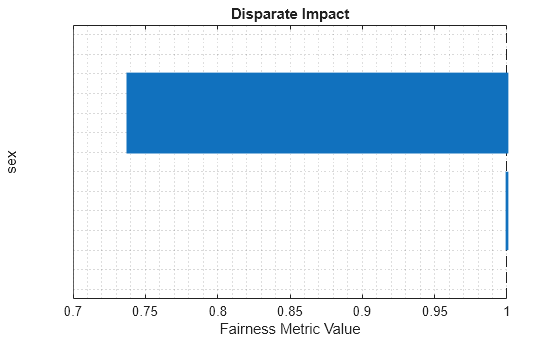

`plot(evaluator,"DisparateImpact")`

For the nonreference group (`Female`

), the disparate impact value is the proportion of predictions in the group with a positive class value (`>50K`

) divided by the proportion of predictions in the reference group (`Male`

) with a positive class value. Ideally, disparate impact values are close to 1.

To try to improve the nonreference group disparate impact value, you can adjust model predictions by using the `fairnessThresholder`

function. The function uses validation data to search for an optimal score threshold that maximizes accuracy while satisfying fairness bounds. For observations in the critical region below the optimal threshold, the function changes the labels so that the fairness constraints hold for the reference and nonreference groups. By default, the function tries to find a score threshold so that the disparate impact value for the nonreference group is in the range [0.8,1.25].

fairnessMdl = fairnessThresholder(Mdl,validationData,"sex","salary")

fairnessMdl = fairnessThresholder with properties: Learner: [1x1 classreg.learning.classif.CompactClassificationEnsemble] SensitiveAttribute: 'sex' ReferenceGroups: Male ResponseName: 'salary' PositiveClass: >50K ScoreThreshold: 1.6749 BiasMetric: 'DisparateImpact' BiasMetricValue: 0.9702 BiasMetricRange: [0.8000 1.2500] ValidationLoss: 0.2017

`fairnessMdl`

is a `fairnessThresholder`

model object. Note that the `predict`

function of the ensemble model `Mdl`

returns scores that are not posterior probabilities. Scores are in the range $$(-\infty ,\infty )$$ instead, and the maximum score for each observation is greater than 0. For observations whose maximum scores are less than the new score threshold (`fairnessMdl.ScoreThreshold`

), the `predict`

function of the `fairnessMdl`

object adjusts the prediction. If the observation is in the nonreference group, the function predicts the observation into the positive class. If the observation is in the reference group, the function predicts the observation into the negative class. These adjustments do not always result in a change in the predicted label.

Adjust the test set predictions by using the new score threshold, and calculate the classification error.

fairnessLabels = predict(fairnessMdl,adulttest); fairnessLoss = loss(fairnessMdl,adulttest)

fairnessLoss = 0.2064

The new classification error is similar to the original classification error.

Compare the disparate impact values across the two sets of test predictions: the original predictions computed using `Mdl`

and the adjusted predictions computed using `fairnessMdl`

.

newEvaluator = fairnessMetrics(adulttest,"salary", ... SensitiveAttributeNames="sex",Predictions=[labels,fairnessLabels], ... ModelNames=["Original","Adjusted"],Weights="fnlwgt"); newEvaluator.PositiveClass

`ans = `*categorical*
>50K

newEvaluator.ReferenceGroup

ans = 'Male'

`report(newEvaluator,BiasMetrics="DisparateImpact")`

`ans=`*2×5 table*
Metrics SensitiveAttributeNames Groups Original Adjusted
_______________ _______________________ ______ ________ ________
DisparateImpact sex Female 0.73792 1.0048
DisparateImpact sex Male 1 1

`plot(newEvaluator,"di")`

The disparate impact value for the nonreference group (`Female`

) is closer to 1 when you use the adjusted predictions.

### Adjust Score Threshold Using Statistical Parity Difference Metric

Train a support vector machine (SVM) model, and compute the statistical parity difference (SPD) for each group in the sensitive attribute. To reduce the SPD value of the nonreference group, adjust the score threshold for classifying observations.

Load the `patients`

data set, which contains medical information for 100 patients. Convert the `Gender`

and `Smoker`

variables to `categorical`

variables. Specify the descriptive category names `Smoker`

and `Nonsmoker`

rather than `1`

and `0`

.

load patients Gender = categorical(Gender); Smoker = categorical(Smoker,logical([1 0]), ... ["Smoker","Nonsmoker"]);

Create a matrix containing the continuous predictors `Diastolic`

and `Systolic`

. Specify `Gender`

as the sensitive attribute and `Smoker`

as the response variable.

X = [Diastolic,Systolic]; attribute = Gender; Y = Smoker;

Partition the data into training and validation sets. Use half of the observations for training and half of the observations for validation.

rng("default") % For reproducibility cv = cvpartition(Y,"Holdout",0.5); trainX = X(training(cv),:); trainAttribute = attribute(training(cv)); trainY = Y(training(cv)); validationX = X(test(cv),:); validationAttribute = attribute(test(cv)); validationY = Y(test(cv));

Train a support vector machine (SVM) binary classifier on the training data. Standardize the predictors before fitting the model. Use the trained model to predict labels and compute scores for the validation data set.

mdl = fitcsvm(trainX,trainY,Standardize=true); [labels,scores] = predict(mdl,validationX);

For the validation data set, combine the sensitive attribute and response variable information into one grouping variable `groupTest`

.

groupTest = validationAttribute.*validationY; names = string(categories(groupTest))

`names = `*4x1 string*
"Female Smoker"
"Female Nonsmoker"
"Male Smoker"
"Male Nonsmoker"

Find the validation observations that are misclassified by the SVM model.

```
wrongIdx = (validationY ~= labels);
wrongX = validationX(wrongIdx,:);
names(5) = "Misclassified";
```

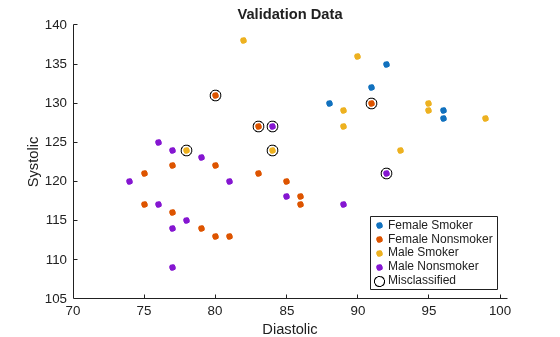

Plot the validation data. The color of each point indicates the sensitive attribute group and class label for that observation. Circled points indicate misclassified observations.

figure hold on gscatter(validationX(:,1),validationX(:,2), ... validationAttribute.*validationY) plot(wrongX(:,1),wrongX(:,2), ... "ko",MarkerSize=8) legend(names) xlabel("Diastolic") ylabel("Systolic") title("Validation Data") hold off

Compute fairness metrics with respect to the sensitive attribute by using the model predictions. In particular, find the statistical parity difference (SPD) for each group in `validationAttribute`

.

```
evaluator = fairnessMetrics(validationAttribute,validationY, ...
Predictions=labels);
evaluator.ReferenceGroup
```

ans = 'Female'

evaluator.PositiveClass

`ans = `*categorical*
Nonsmoker

`report(evaluator,BiasMetrics="StatisticalParityDifference")`

`ans=`*2×4 table*
ModelNames SensitiveAttributeNames Groups StatisticalParityDifference
__________ _______________________ ______ ___________________________
Model1 x1 Female 0
Model1 x1 Male -0.064412

```
figure

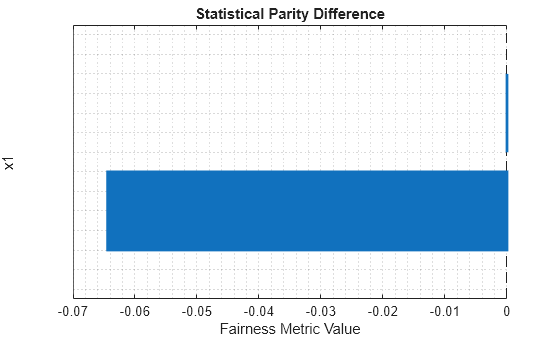

plot(evaluator,"StatisticalParityDifference")
```

For the nonreference group (`Male`

), the SPD value is the difference between the probability of a patient being in the positive class (`Nonsmoker`

) when the sensitive attribute value is `Male`

and the probability of a patient being in the positive class when the sensitive attribute value is `Female`

(in the reference group). Ideally, SPD values are close to 0.

To try to improve the nonreference group SPD value, you can adjust the model predictions by using the `fairnessThresholder`

function. The function searches for an optimal score threshold to maximize accuracy while satisfying fairness bounds. For observations in the critical region below the optimal threshold, the function changes the labels so that the fairness constraints hold for the reference and nonreference groups. By default, when you use the SPD bias metric, the function tries to find a score threshold such that the SPD value for the nonreference group is in the range [–0.05,0.05].

fairnessMdl = fairnessThresholder(mdl,validationX, ... validationAttribute,validationY, ... BiasMetric="StatisticalParityDifference")

fairnessMdl = fairnessThresholder with properties: Learner: [1x1 classreg.learning.classif.CompactClassificationSVM] SensitiveAttribute: [50x1 categorical] ReferenceGroups: Female ResponseName: 'Y' PositiveClass: Nonsmoker ScoreThreshold: 0.5116 BiasMetric: 'StatisticalParityDifference' BiasMetricValue: -0.0209 BiasMetricRange: [-0.0500 0.0500] ValidationLoss: 0.1200

`fairnessMdl`

is a `fairnessThresholder`

model object.

Note that the updated nonreference group SPD value is closer to 0.

newNonReferenceSPD = fairnessMdl.BiasMetricValue

newNonReferenceSPD = -0.0209

Use the new score threshold to adjust the validation data predictions. The `predict`

function of the `fairnessMdl`

object adjusts the prediction of each observation whose maximum score is less than the score threshold. If the observation is in the nonreference group, the function predicts the observation into the positive class. If the observation is in the reference group, the function predicts the observation into the negative class. These adjustments do not always result in a change in the predicted label.

```
fairnessLabels = predict(fairnessMdl,validationX, ...
validationAttribute);
```

Find the observations whose predictions are switched by `fairnessMdl`

.

```
differentIdx = (labels ~= fairnessLabels);
differentX = validationX(differentIdx,:);
names(5) = "Switched Prediction";
```

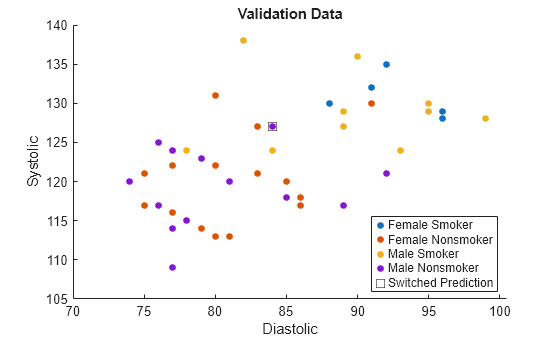

Plot the validation data. The color of each point indicates the sensitive attribute group and class label for that observation. Points in squares indicate observations whose labels are switched by the `fairnessThresholder`

model.

figure hold on gscatter(validationX(:,1),validationX(:,2), ... validationAttribute.*validationY) plot(differentX(:,1),differentX(:,2), ... "ks",MarkerSize=8) legend(names) xlabel("Diastolic") ylabel("Systolic") title("Validation Data") hold off

### Use Fairness Thresholder with Multiple Reference Groups

The `fairnessThresholder`

function uses a technique designed for binary sensitive attributes that contain a reference group and a nonreference group. This example shows how to use the function when the sensitive attribute contains more than two groups.

Read the sample file `CreditRating_Historical.dat`

into a table. The predictor data contains financial ratios for a list of corporate customers. The response variable contains credit ratings assigned by a rating agency. Consider the industry sector information as a sensitive attribute.

`creditrating = readtable("CreditRating_Historical.dat");`

Because each value in the `ID`

variable is a unique customer ID—that is, `length(unique(creditrating.ID))`

is equal to the number of observations in `creditrating`

—the `ID`

variable is a poor predictor. Remove the `ID`

variable from the table, and convert the `Industry`

variable to a `categorical`

variable.

creditrating.ID = []; creditrating.Industry = categorical(creditrating.Industry);

In the `Rating`

response variable, combine the `AAA`

, `AA`

, `A`

, and `BBB`

ratings into a category of "good" ratings, and the `BB`

, `B`

, and `CCC`

ratings into a category of "poor" ratings.

Rating = categorical(creditrating.Rating); Rating = mergecats(Rating,["AAA","AA","A","BBB"],"good"); Rating = mergecats(Rating,["BB","B","CCC"],"poor"); creditrating.Rating = Rating;

Partition the data into a training set, validation set, and test set. Use approximately one third of the observations to create each set.

rng("default") cv1 = cvpartition(creditrating.Rating,"Holdout",1/3); tblNotForTest = creditrating(training(cv1),:); tblTest = creditrating(test(cv1),:); cv2 = cvpartition(tblNotForTest.Rating,"Holdout",1/2); tblTrain = tblNotForTest(training(cv2),:); tblValidation = tblNotForTest(test(cv2),:);

In this example, consider industries with high ratios of good to poor ratings as reference groups in the `Industry`

sensitive attribute. Compute the ratios using the training data set `tblTrain`

and the `grpstats`

function.

info = grpstats(tblTrain,["Industry","Rating"]); goodInfo = info(info.Rating == "good",1:3); poorInfo = info(info.Rating == "poor",1:3); goodToPoorRatio = goodInfo.GroupCount./poorInfo.GroupCount

`goodToPoorRatio = `*12×1*
2.0000
1.5122
2.1212
1.3061
1.7778
2.5152
2.4118
1.9394
1.4186
1.1875
⋮

Define the well-rated industries as those with `goodToPoorRatio`

values greater than 2.5. Consider the industry with the highest `goodToPoorRatio`

value as the best-rated industry.

wellRatedIndustries = goodInfo.Industry(goodToPoorRatio > 2.5,:)

`wellRatedIndustries = `*2x1 categorical*
6
11

maximumRatio = max(goodToPoorRatio); bestRatedIndustry = goodInfo.Industry(goodToPoorRatio == maximumRatio,:)

`bestRatedIndustry = `*categorical*
11

Compute fairness metrics with respect to the sensitive attribute by using the training data. In particular, find the statistical parity difference (SPD) for each group in `Industy`

. Specify a good rating as the positive class, and specify the best-rated industry (`11`

) as the reference group. Use the `report`

and `plot`

object functions of `fairnessMetrics`

to display the results.

dataEvaluator = fairnessMetrics(tblTrain,"Rating", ... SensitiveAttributeNames="Industry", ... PositiveClass="good",ReferenceGroup=bestRatedIndustry); report(dataEvaluator,BiasMetrics="StatisticalParityDifference")

`ans=`*12×3 table*
SensitiveAttributeNames Groups StatisticalParityDifference
_______________________ ______ ___________________________
Industry 1 -0.075908
Industry 2 -0.14063
Industry 3 -0.062963
Industry 4 -0.1762
Industry 5 -0.10257
Industry 6 -0.027057
Industry 7 -0.035678
Industry 8 -0.08278
Industry 9 -0.15604
Industry 10 -0.19972
Industry 11 0
Industry 12 -0.058364

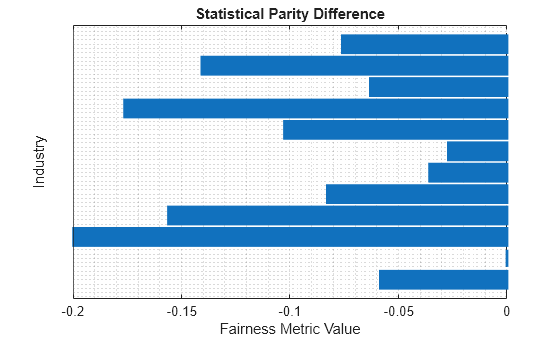

`plot(dataEvaluator,"StatisticalParityDifference")`

For each group *g* in the sensitive attribute, the SPD value is the difference between the probability of being in the positive class (`good`

) when the sensitive attribute value is *g* and the probability of being in the positive class when the sensitive attribute value is the reference group value (`11`

). Ideally, SPD values are close to 0.

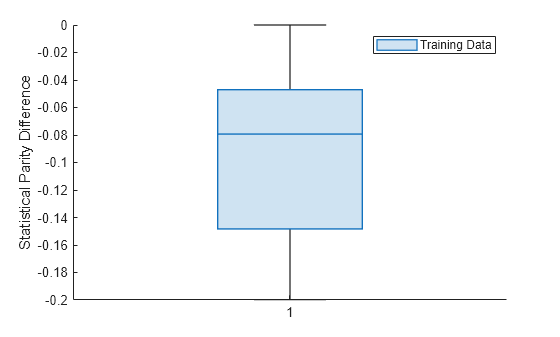

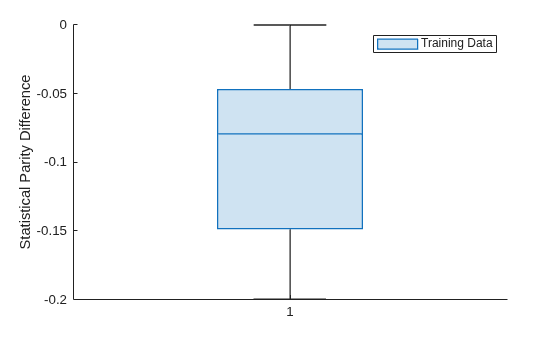

Visualize the distribution of SPD values by using a box plot.

boxchart(dataEvaluator.BiasMetrics.StatisticalParityDifference) ylabel("Statistical Parity Difference") legend("Training Data")

The median SPD value is around –0.08.

Train a binary tree classifier using the training data set. Use the trained model to predict labels and compute the classification error on the test data set.

predictorNames = ["WC_TA","RE_TA","EBIT_TA","MVE_BVTD","S_TA"]; treeMdl = fitctree(tblTrain,"Rating", ... PredictorNames=predictorNames); treePredictions = predict(treeMdl,tblTest); L = loss(treeMdl,tblTest)

L = 0.1107

You can adjust model predictions by using the `fairnessThresholder`

function. The function uses the validation data to search for an optimal score threshold that maximizes accuracy while satisfying fairness bounds. Use the `ReferenceGroups`

name-value argument to specify the well-rated industries (`6`

and `11`

) as the reference group. All other industries form the nonreference group. Specify the bias metric as the statistical parity difference and the bias metric range as [–0.005,0.005]. Note that these bounds apply to the SPD value for the collective nonreference group, not individual industries in the sensitive attribute.

fairnessMdl = fairnessThresholder(treeMdl,tblValidation, ... "Industry","Rating", ... PositiveClass="good",ReferenceGroups=wellRatedIndustries, ... BiasMetric="StatisticalParityDifference", ... BiasMetricRange=[-0.005 0.005])

fairnessMdl = fairnessThresholder with properties: Learner: [1x1 classreg.learning.classif.CompactClassificationTree] SensitiveAttribute: 'Industry' ReferenceGroups: [2x1 categorical] ResponseName: 'Rating' PositiveClass: 'good' ScoreThreshold: 0.5444 BiasMetric: 'StatisticalParityDifference' BiasMetricValue: 0.0034 BiasMetricRange: [-0.0050 0.0050] ValidationLoss: 0.1198

`fairnessMdl`

is a `fairnessThresholder`

model object.

Adjust the test set predictions by using the new score threshold, and calculate the classification error.

newPredictions = predict(fairnessMdl,tblTest); newL = loss(fairnessMdl,tblTest)

newL = 0.1183

The new classification error is similar to the original classification error.

Compare the SPD values across the two sets of test predictions: the original predictions computed using `treeMdl`

and the adjusted predictions computed using `fairnessMdl`

. Specify a good rating as the positive class, and specify the best-rated industry (`11`

) as the reference group. Use the `report`

and `plot`

object functions of `fairnessMetrics`

to display the results.

predEvaluator = fairnessMetrics(tblTest,"Rating", ... SensitiveAttributeNames="Industry", ... Predictions=[treePredictions,newPredictions], ... PositiveClass="good", ... ModelNames=["Original Model","Adjusted Model"], ... ReferenceGroup=bestRatedIndustry); report(predEvaluator,BiasMetric="DisparateImpact")

`ans=`*12×5 table*
Metrics SensitiveAttributeNames Groups Original Model Adjusted Model
_______________ _______________________ ______ ______________ ______________
DisparateImpact Industry 1 0.96499 0.95014
DisparateImpact Industry 2 1.0755 1.0634
DisparateImpact Industry 3 0.94643 0.94643
DisparateImpact Industry 4 1.0541 1.0392
DisparateImpact Industry 5 1.0262 1.0132
DisparateImpact Industry 6 1.0186 1.0186
DisparateImpact Industry 7 0.99692 0.96067
DisparateImpact Industry 8 1.077 1.077
DisparateImpact Industry 9 1.0392 1.0103
DisparateImpact Industry 10 1.0781 1.0635
DisparateImpact Industry 11 1 1
DisparateImpact Industry 12 1.0392 1.0225

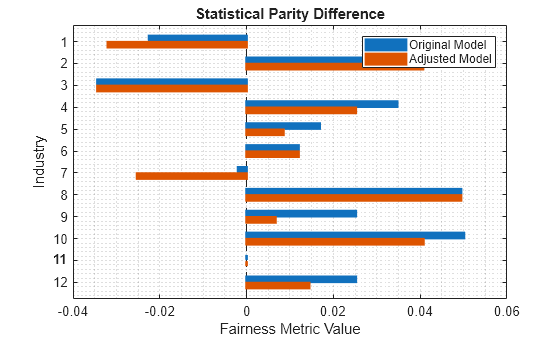

`plot(predEvaluator,"spd")`

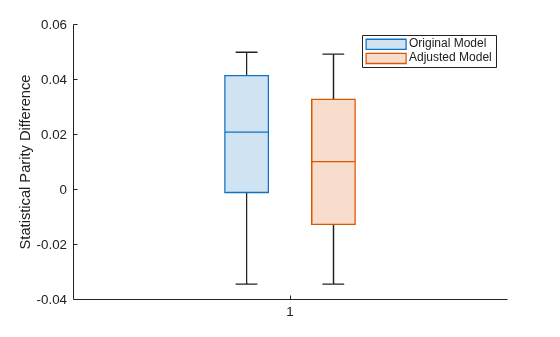

Visualize the two distributions of SPD values by using box plots.

boxchart(predEvaluator.BiasMetrics.StatisticalParityDifference, ... GroupByColor=predEvaluator.BiasMetrics.ModelNames) ylabel("Statistical Parity Difference") legend

The SPD values for the original test set predictions are close to 0, with a median value of approximately 0.02. The SPD values for the adjusted test set predictions have a median value that is slightly closer to 0.

### Adjust Score Threshold for Function Handle Model

Train a logistic regression model using the `fitglm`

function. To adjust the score threshold for classifying observations, pass the model as an input to `fairnessThresholder`

using a function handle.

Load the `patients`

data set, which contains medical information for 100 patients. Convert the `Gender`

and `Smoker`

variables to categorical variables. Specify the descriptive category names `Smoker`

and `Nonsmoker`

rather than `1`

and `0`

.

load patients Gender = categorical(Gender); Smoker = categorical(Smoker,logical([1 0]), ... ["Smoker","Nonsmoker"]);

Create a table containing the continuous predictors `Diastolic`

and `Systolic`

, the sensitive attribute `Gender`

, and the response variable `Smoker`

.

Tbl = table(Diastolic,Systolic,Gender,Smoker);

Partition the data into training and validation sets. Use half of the observations for training and half of the observations for validation.

rng("default") % For reproducibility cv = cvpartition(Tbl.Smoker,"Holdout",0.5); trainTbl = Tbl(training(cv),:); validationTbl = Tbl(test(cv),:);

Train a logistic regression model using the training data `trainTbl`

and the `fitglm`

function.

modelspec = "Smoker ~ Diastolic + Systolic"; glmMdl = fitglm(trainTbl,modelspec,Distribution="binomial")

glmMdl = Generalized linear regression model: logit(P(Smoker='Nonsmoker')) ~ 1 + Diastolic + Systolic Distribution = Binomial Estimated Coefficients: Estimate SE tStat pValue ________ _______ _______ _________ (Intercept) 116.98 44.939 2.6032 0.0092356 Diastolic -0.54261 0.21577 -2.5147 0.011913 Systolic -0.57999 0.28697 -2.0211 0.043268 50 observations, 47 error degrees of freedom Dispersion: 1 Chi^2-statistic vs. constant model: 54, p-value = 1.89e-12

As indicated in the linear regression model equation, `Nonsmoker`

is the positive class. That is, an observation with a predicted score greater than 0.5 is predicted to be a nonsmoker.

Create a function handle to the `predict`

function of the `GeneralizedLinearModel`

object `glmMdl`

.

f = @(T) predict(glmMdl,T);

Create a `fairnessThresholder`

object by using the function handle `f`

and the validation data `validationTbl`

. The function searches for an optimal score threshold to maximize accuracy while satisfying fairness bounds. Specify the bias metric range so that the disparate impact value for the nonreference group is in the range [0.9,1.1].

When you pass a classification model as a function handle, you must specify the positive class.

fairnessMdl = fairnessThresholder(f,validationTbl, ... "Gender","Smoker", ... BiasMetricRange=[0.9 1.1], ... PositiveClass=categorical("Nonsmoker"))

fairnessMdl = fairnessThresholder with properties: Learner: @(T)predict(glmMdl,T) SensitiveAttribute: 'Gender' ReferenceGroups: Female ResponseName: 'Smoker' PositiveClass: Nonsmoker ScoreThreshold: 0.8087 BiasMetric: 'DisparateImpact' BiasMetricValue: 0.9538 BiasMetricRange: [0.9000 1.1000] ValidationLoss: 0.1600

omega = fairnessMdl.ScoreThreshold

omega = 0.8087

`fairnessMdl`

is a `fairnessThresholder`

model object. For each observation with a score in the range (1–`omega`

,`omega`

), the `predict`

function of the `fairnessMdl`

object adjusts the prediction. If the observation is in the nonreference group (`Male`

), the function predicts the observation into the positive class (`Nonsmoker`

). If the observation is in the reference group (`Female`

), the function predicts the observation into the negative class (`Smoker`

).

Adjust the predictions for the entire data set `Tbl`

by using the new score threshold.

fairnessLabels = predict(fairnessMdl,Tbl)

`fairnessLabels = `*100x1 categorical*
Smoker
Nonsmoker
Smoker
Nonsmoker
Nonsmoker
Nonsmoker
Smoker
Nonsmoker
Nonsmoker
Nonsmoker
Nonsmoker
Nonsmoker
Nonsmoker
Smoker
Nonsmoker
Smoker
Smoker
Nonsmoker
Nonsmoker
Nonsmoker
Nonsmoker
Nonsmoker
Nonsmoker
Smoker
Smoker
Nonsmoker
Nonsmoker
Nonsmoker
Nonsmoker
Smoker
⋮

## Algorithms

### Reject Option-Based Classification

`fairnessThresholder`

uses a post-processing bias mitigation
technique called Reject Option-based Classification (ROC). The technique relies on the
premise that bias arises when observations are near decision boundaries. To correct for this
bias, the algorithm adjusts the predictions for observations that have lower classification
scores for their predicted class.

`fairnessThresholder`

finds an optimal score threshold in the
following way:

The function creates a vector of

*m*potential score thresholds, where*m*is the minimum of the number of observations in the validation data and the`MaxNumThresholds`

value. Each potential score threshold is a quantile of the set of maximum scores for the observations in the validation data, computed using the`quantile`

function.For each potential score threshold, the function adjusts the prediction of each observation whose maximum score is less than the score threshold. If the observation is in the nonreference group, the function predicts the observation into the positive class (

`PositiveClass`

). If the observation is in the reference group (`ReferenceGroups`

), the function predicts the observation into the negative class.The function then computes the fairness metric (

`BiasMetric`

) value for the nonreference group. If the metric value is within the metric bounds (`BiasMetricRange`

), then the threshold is a candidate for selection. If not, the function rejects the score threshold.The function selects the score threshold candidate that maximizes the classification accuracy.

For more information, see [1].

The function returns a warning when the original model predictions already satisfy the fairness constraints or when all potential score thresholds fail to satisfy the fairness constraints.

### Missing Values

`fairnessThresholder`

treats `NaN`

, `''`

(empty character vector), `""`

(empty string),
`<missing>`

, and `<undefined>`

elements as
missing data. The software removes rows of data corresponding to missing values in the
sensitive attribute and the response variable. However, the treatment of missing values in
the validation predictor data `X`

or `Tbl`

varies
among models (`Mdl`

).

## References

[1] Kamiran, Faisal, Asim Karim, and
Xiangliang Zhang. "Decision Theory for Discrimination-Aware Classification." *2012
IEEE 12th International Conference on Data Mining*: 924-929.

## Version History

**Introduced in R2023a**

## Open Example

You have a modified version of this example. Do you want to open this example with your edits?

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
