PX4 Hardware-in-the-Loop (HITL) Simulation with VTOL UAV

R2026b

Step 1 of 2 in PX4 Hardware-in-the-Loop (HITL) Simulation and Visualization with VTOL UAV

• 1
• 2

This example shows how to use the UAV Toolbox Support Package for PX4® Autopilots to verify a UAV controller design by using Hardware-in-the-Loop (HITL) simulation on a PX4 Autopilot autopilot and simulating the VTOL tilt rotor UAV Dynamics in Simulink®.

You can use the Simulink model in this example as a reference to design a flight controller algorithm for take-off, hover, waypoint following, forward transition, back transition, and landing for a VTOL tilt-rotor UAV plant model. The plant model in this example simulates the aerodynamics, propulsion, ground contact, and sensors of a VTOL tilt-rotor UAV.

Prerequisites

You must complete these before proceeding with this example:

1. If you are new to Simulink, watch the Simulink Quick Start video.

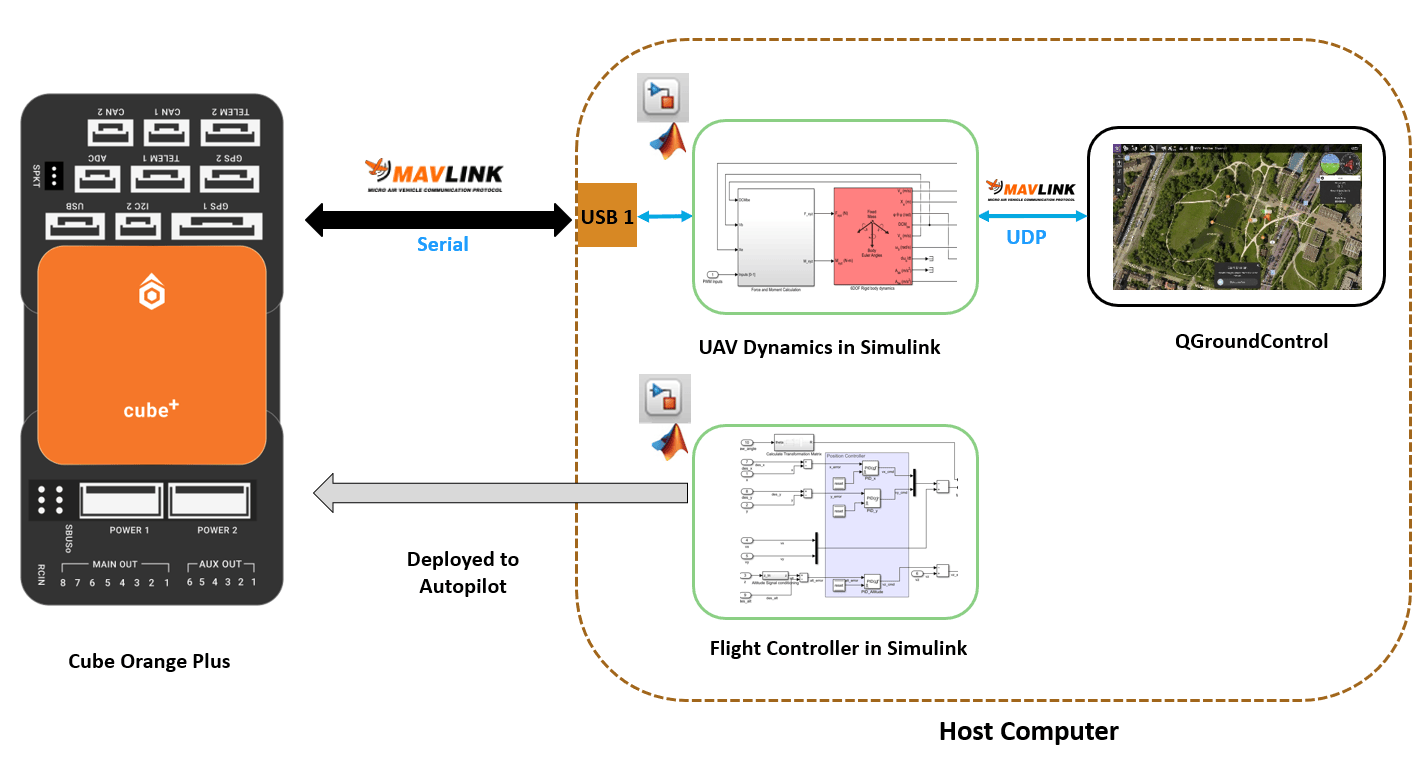

2. Set up the physical connection for HITL simulation between the PX4 Autopilot and host computer running Simulink as shown in PX4 Hardware-in-the-Loop System Architecture. This diagram illustrates the HITL configuration and the physical communication between various modules.

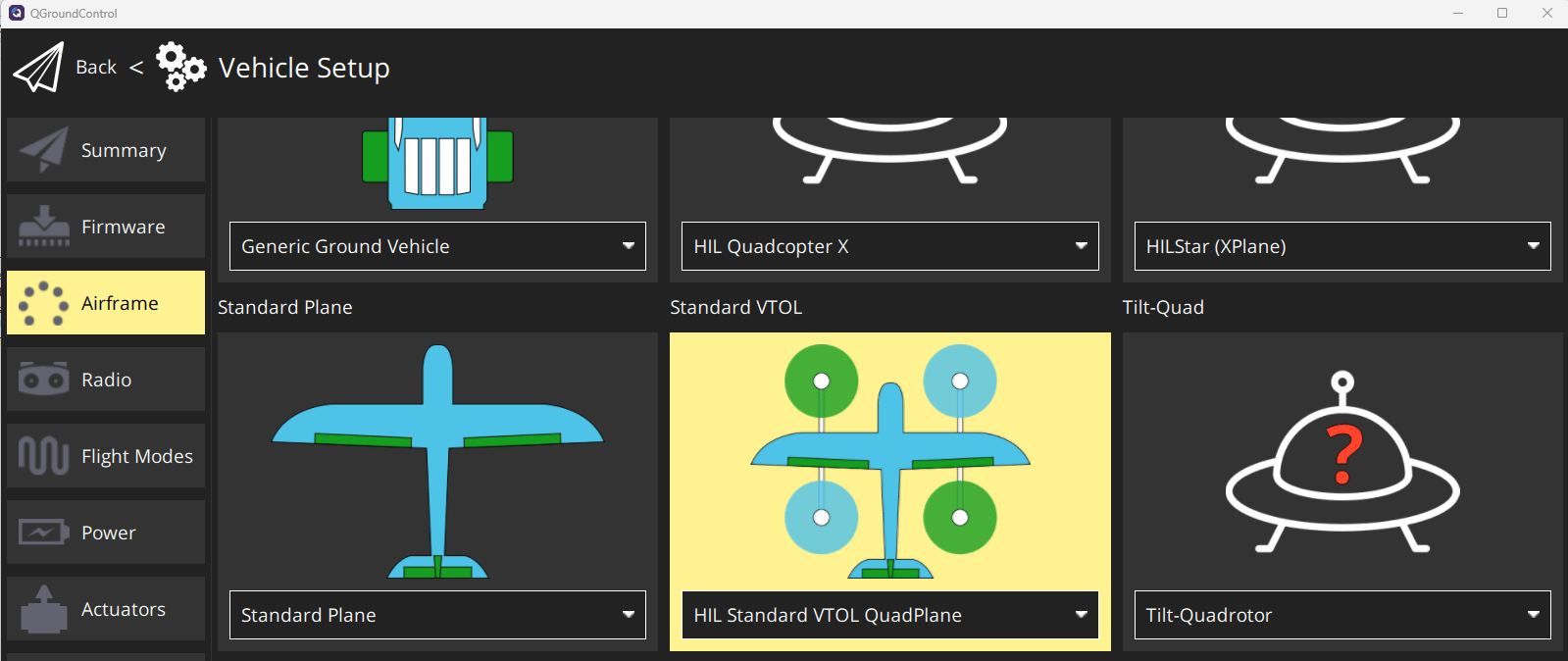

3. Configure and set up the PX4 Autopilot in HITL mode as shown in Setting Up PX4 Autopilot in Hardware-in-the-Loop (HITL) Mode from QGroundControl. When selecting an airframe, choose the HIL Standard VTOL QuadPlane.

4. Specify these parameters for the airframe in QGroundControl to avoid triggering auto-landing when the VTOL is hovering:

• LNDMC_XY_VEL_MAX — 0 m/s

• LNDMC_Z_VEL_MAX — 0 m/s

• LNDMC_ROT_MAX — 0 rad/s

5. Set up the PX4 firmware as described in Set Up PX4 Firmware for Hardware-in-the-Loop (HITL) Simulation. At the Select a PX4 Autopilot and Build Target step, set any PX4 Autopilot as the PX4 Autopilot board. Select the VTOL specific px4board build target from the dropdown list. For example if you are using Cube Orange + as the Autopilot, choose cubepilot_cubeorangeplus_VTOL as the px4board build target. This example uses Cube Orange +.

Required Third-Party Software

• QGroundControl (QGC)

Required Hardware

• PX4 Autopilot flight controller

• Micro-USB (Universal Serial Bus) type-B cable

• Micro-SD card

Getting Started

To open the example livescript and directory which contains the Simulink project file, first run openExample('uav/PX4HITLSimulationWithVTOLTiltRotorSimulinkExample') in the command window.

You must open the VTOLRefApp.prj project file to access the Simulink model, supporting files, and project shortcuts that this example uses.

% Open the Simulink project
prj = openProject("VTOLApp");

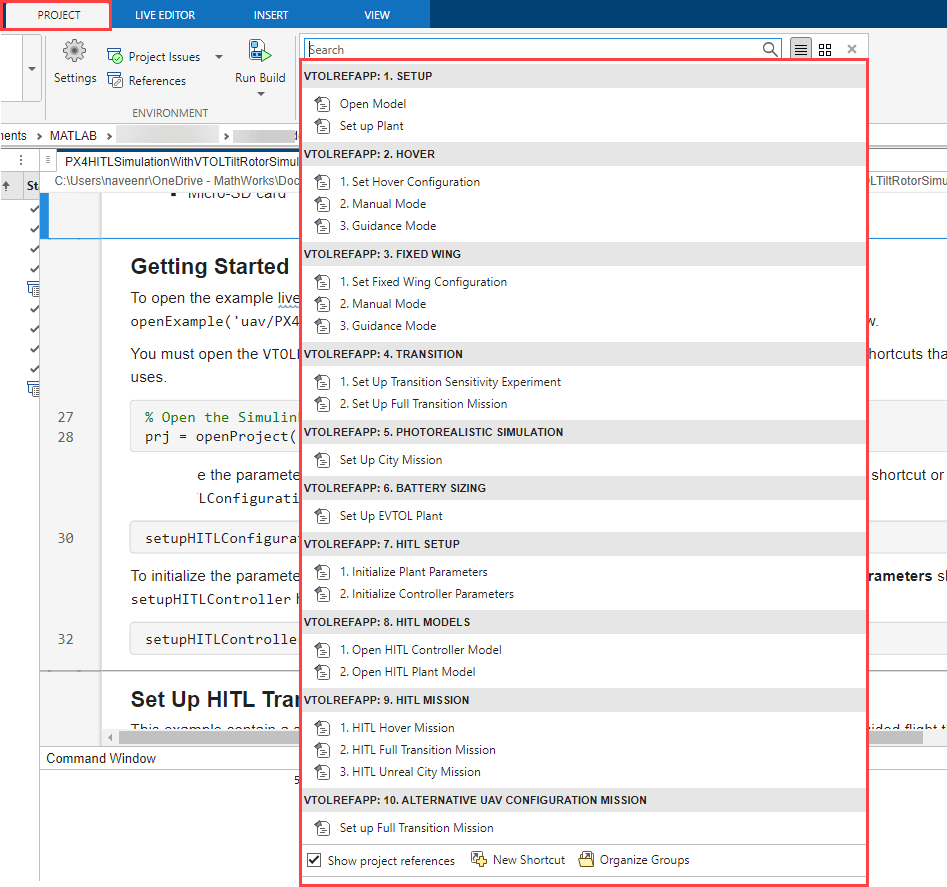

To initialize the parameters and configurations of the HITL plant model, click the Initialize Plant Parameters shortcut or run the setupHITLConfiguration helper function.

setupHITLConfiguration

To initialize the parameters and configurations of the HITL controller model, click the Initialize Controller Parameters shortcut or run the setupHITLController helper function.

setupHITLController

Set Up HITL Transition Guidance Mission

This example contain a sample mission in which the UAV takes off, transitions to fixed wing, and performs guided flight that is defined in the exampleHelperTransitionMissionData.m file.

Load the sample mission by clicking the HITL Full Transition Mission shortcut or by using the setupHITLTransitionGuidanceMission helper function.

setupHITLTransitionGuidanceMission

Alternatively, you can load a predefined hover guidance mission by clicking the HITL Hover Mission shortcut or by using the setupHITLHoverGuidanceMission helper function.

To create your own mission, you can customize the mission defined in the exampleHelperTransitionMissionData.m file. The following table summarize different mission modes and the corresponding flight modes. Note that the modes are based on the format that the Path Manager uses.

Mission Mode	Action	Supported Flight Mode
1	Takeoff	Hover
2	Waypoint	Hover, Fixed Wing
3	Orbit	Hover, Fixed Wing
4	Land	Hover
5 (Not used in this example)	RTL (Not used in this example)	N/A (Not used in this example)
6	Transition	Hover, Fixed Wing

Deploy HITL Controller Model to PX4 Autopilot Target

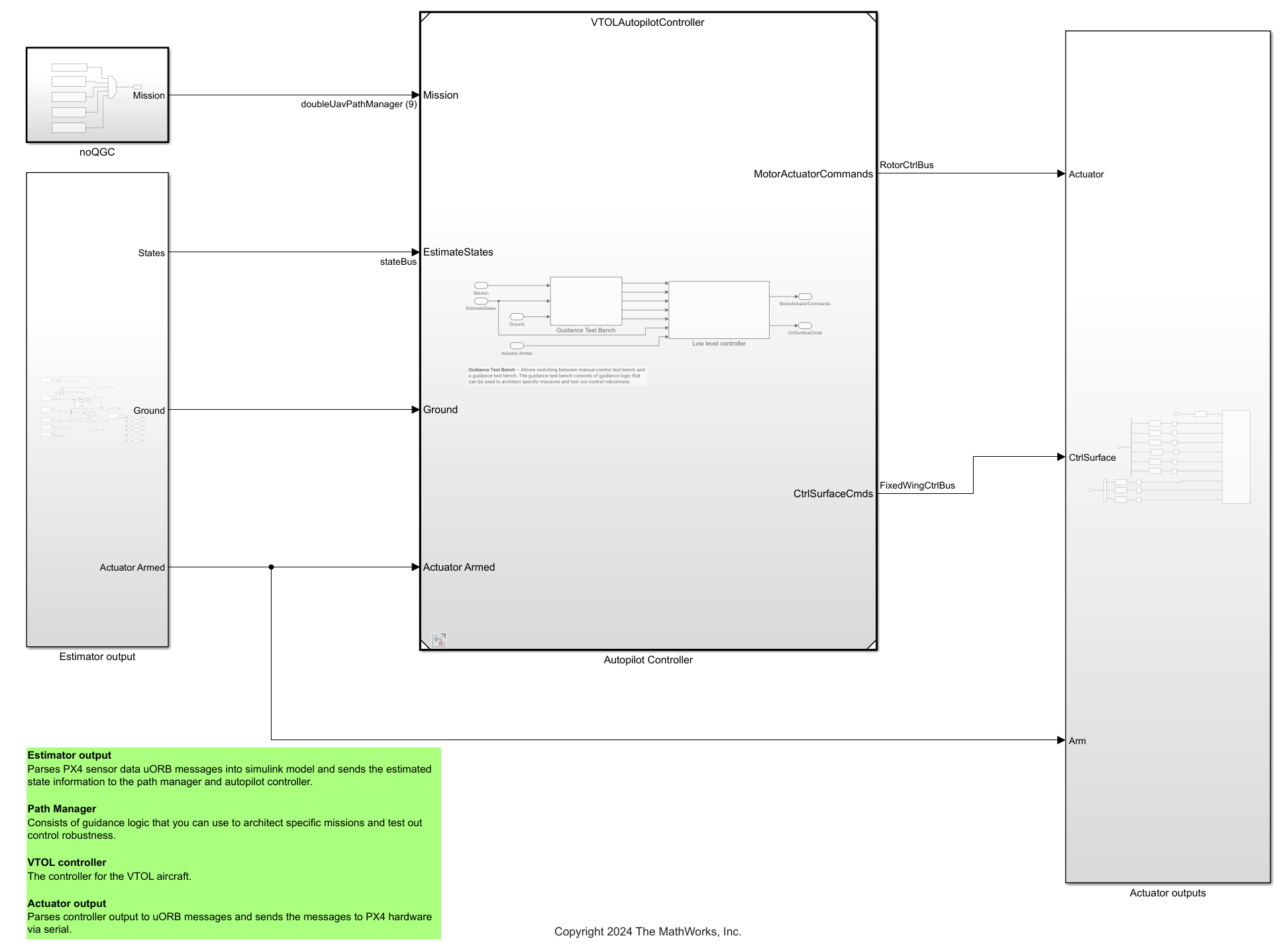

The HITL_controller_top.slx file contains the HITL controller model. The model consists of the following subsystems:

• VTOLAutopilotController — Reference flight controller design for a VTOL tilt-rotor UAV model.

• Actuator outputs — Parses the VTOLAutopilotController subsystem outputs into uORB messages.

• Estimator — Obtains VTOL UAV states from PX4 estimator for controller feedback.

Open the HITL_controller_top.slx model using the Open HITL Controller Model shortcut, or use the following code block.

controller_mdl = "HITL_Controller_top.slx";
open_system(controller_mdl)

To generate the code of the flight controller model and deploy it to the PX4 Autopilot board, select Build, Deploy & Start on the Hardware tab of the Simulink Toolstrip.

After completing deployment, the model launches QGroundControl.

Note:

1. If you are using Ubuntu®, QGroundCcontrol might not launch automatically. To launch QGroundCcontrol, open the terminal and go to the folder where QGroundCcontrol is downloaded and , and then enter this command: ./QGroundControl.AppImage.

2. If you have changed the hardware, or are not using the pre-configured Simulink model, then you must configure your Simulink model as explained in Configure Simulink Model for Deployment in Hardware-in-the-Loop (HITL) Simulation. Run the following code block to launch the Configuration Parameters dialog box in a new window.

configObj = getActiveConfigSet('VTOLAutopilotController');
deploymentConfigSet = getRefConfigSet(configObj);
openDialog(deploymentConfigSet);

Run HITL Simulation

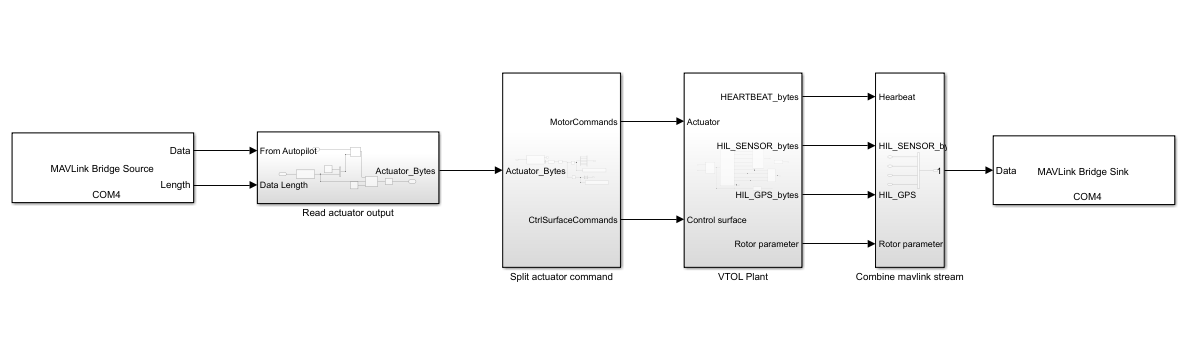

The HITL_Plant_top.slx file contains the HITL plant model. The model consists of the following blocks:

• MAVLink Bridge Source block — Reads the MAVLink messages from the PX4 Autopilot board and sends it to VTOL Plant subsystem

• VTOL Plant subsystem — Plant model for the VTOL tilt rotor UAV, which simulates the aerodynamics, propulsion, ground contact, and sensors. The subsystem outputs sensor, rotor parameter, and GPS data.

• MAVLink Bridge Sink block — Parses VTOL Plant subsystem as MAVLink messages and sends the messages back to PX4 Autopilot by using serial connection

Open the HITL_Plant_top.slx model by using the Open HITL Plant Model shortcut or by running the following code block.

plant_mdl = "HITL_Plant_top.slx";
open_system(plant_mdl)

Configure the Serial Port parameter of the MAVLink Bridge Source and the MAVLink Bridge Sinks blocks to match the COM port that you use to connect the PX4 autopilot.

Note: The MAVLink Bridge Source and MAVLink Bridge Sink blocks include a UDP configuration that uses port 25000, which is intended for the visualization workflow.

• When running the HITL simulation without visualization, no application is listening on UDP port 25000. To avoid communication issues, remove the row that configures UDP communication on port 25000 from both MAVLink Bridge blocks before running the simulation.

• Use the UDP port 25000 configuration only when running the visualization workflow.

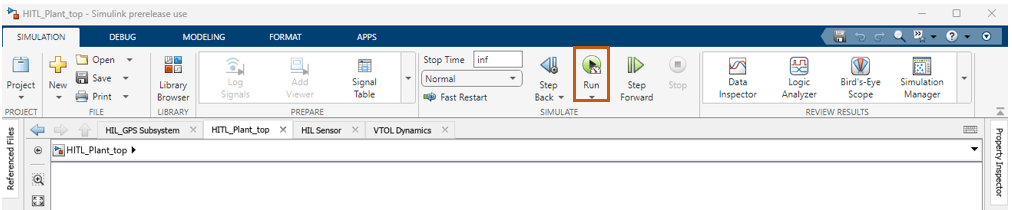

To start the HITL simulation, run the HITL_Plant_top.slx model.

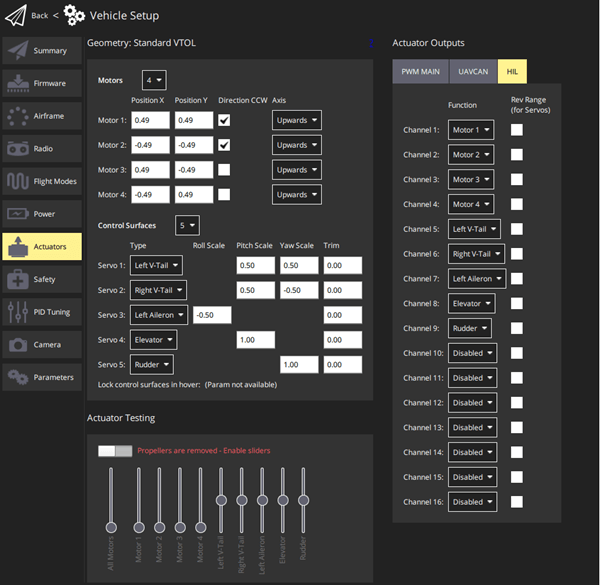

Then, Open QGroundControl and configure the actuators as shown. For more information, see Configure and Assign Actuators in QGroundControl.

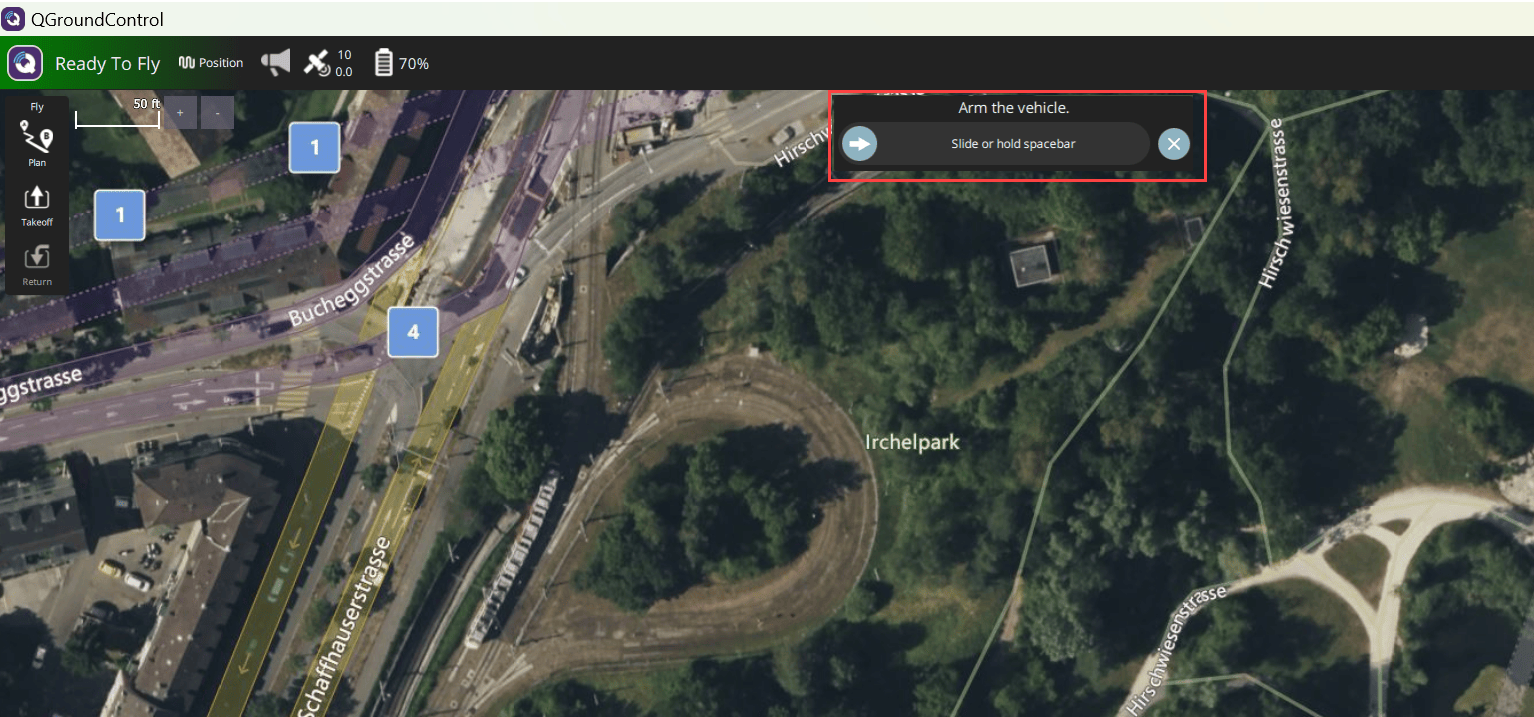

Next, select Fly View in QGroundControl. Arm the VTOL UAV to start the mission by selecting Arm.

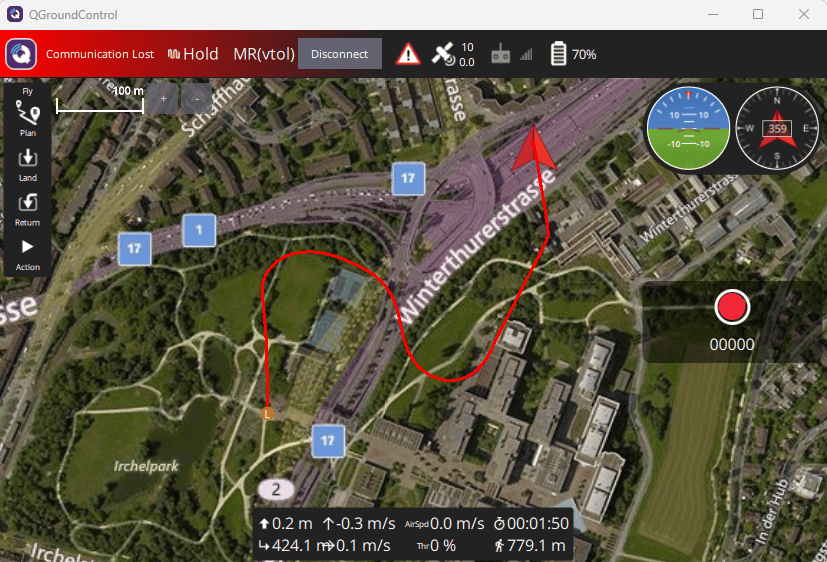

After the VTOL UAV is armed, the UAV takes off and transitions into fixed-wing mode to complete the mission.

Discard changes to reset the example.

discardChanges(myDictionaryObj);
close_system(controller_mdl,0);

Before resuming to other examples in this example series, you must close the VTOLRefApp.prj Simulink project by running this command in the Command Window:

close(prj)
