Transfer function for specified I/O set using slLinearizer
or slTuner
interface
linsys = getIOTransfer(s,in,out)
linsys = getIOTransfer(s,in,out,temp_opening)
linsys = getIOTransfer(s,ios)
linsys = getIOTransfer(___,mdl_index)
[linsys,info]
= getIOTransfer(___)
returns the transfer function for the
specified inputs and outputs for the model associated with the
linsys
= getIOTransfer(s
,in
,out
)slLinearizer
or slTuner
interface,
s
.
The software enforces all the permanent openings
specified for s
when it calculates
linsys
. For information on how
getIOTransfer
treats in
and
out
, see Transfer Functions. If you configured either
s.Parameters
, or s.OperatingPoints
, or
both, getIOTransfer
performs multiple linearizations and
returns an array of transfer functions.
returns the transfer function for the inputs and outputs specified by
linsys
= getIOTransfer(s
,ios
)ios
for the model associated with
s
. Use the linio
command to create
ios
. The software enforces the linearization I/O type
of each signal specified in ios
when it calculates
linsys
. The software also enforces all the permanent
loop openings specified for s
.
returns a subset of the batch linearization results.
linsys
= getIOTransfer(___,mdl_index
)mdl_index
specifies the index of the linearizations of
interest, in addition to any of the input arguments in previous syntaxes.
Use this syntax for efficient linearization, when you want to obtain the transfer function for only a subset of the batch linearization results.
Obtain the closedloop transfer function from the reference signal, r
, to the plant output, y
, for the ex_scd_simple_fdbk
model.

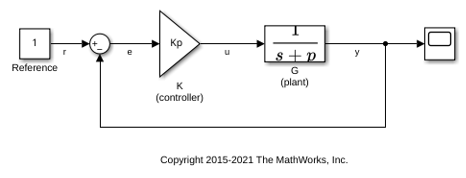

Open the ex_scd_simple_fdbk
model.
mdl = 'ex_scd_simple_fdbk';
open_system(mdl);
In this model:
Create an slLinearizer
interface for the model.
sllin = slLinearizer(mdl);
To obtain the closedloop transfer function from the reference signal, r
, to the plant output, y
, add both points to sllin
.
addPoint(sllin,{'r','y'});
Obtain the closedloop transfer function from r
to y
.
sys = getIOTransfer(sllin,'r','y'); tf(sys)
ans = From input "r" to output "y": 3  s + 8 Continuoustime transfer function.

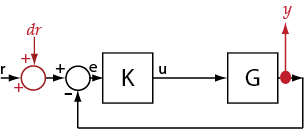

The software adds a linearization input at r
, dr
, and a linearization output at y
.
sys
is the transfer function from dr
to y
, which is equal to .
Obtain the plant model transfer function, G
, for the ex_scd_simple_fdbk
model.
Open the ex_scd_simple_fdbk
model.
mdl = 'ex_scd_simple_fdbk';
open_system(mdl);
In this model:
Create an slLinearizer
interface for the model.
sllin = slLinearizer(mdl);
To obtain the plant model transfer function, use u
as the input point and y
as the output point. To eliminate the effects of feedback, you must break the loop. You can break the loop at u
, e
, or y
. For this example, break the loop at u
. Add these points to sllin
.
addPoint(sllin,{'u','y'});
Obtain the plant model transfer function.
sys = getIOTransfer(sllin,'u','y','u'); tf(sys)
ans = From input "u" to output "y": 1  s + 5 Continuoustime transfer function.
The second input argument specifies u
as the input, while the fourth input argument specifies u
as a temporary loop opening.
sys
is the transfer function from du
to y
, which is equal to .
Suppose you batch linearize the scdcascade
model for multiple transfer functions. For most linearizations, you vary the proportional (Kp2
) and integral gain (Ki2
) of the C2
controller in the 10% range. For this example, calculate the openloop response transfer function for the inner loop, from e2
to y2
, for the maximum value of Kp2
and Ki2
.

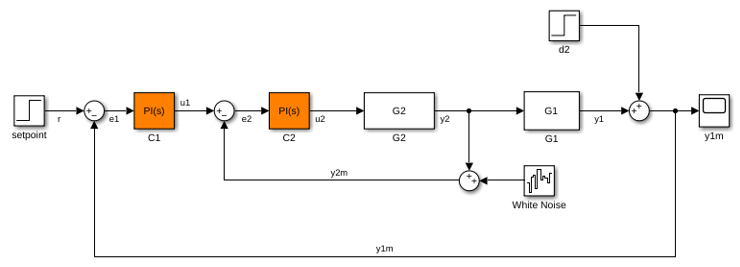

Open the scdcascade
model.
mdl = 'scdcascade';
open_system(mdl);
Create an slLinearizer
interface for the model.
sllin = slLinearizer(mdl);
Vary the proportional (Kp2
) and integral gain (Ki2
) of the C2
controller in the 10% range.
Kp2_range = linspace(0.9*Kp2,1.1*Kp2,3); Ki2_range = linspace(0.9*Ki2,1.1*Ki2,5); [Kp2_grid,Ki2_grid] = ndgrid(Kp2_range,Ki2_range); params(1).Name = 'Kp2'; params(1).Value = Kp2_grid; params(2).Name = 'Ki2'; params(2).Value = Ki2_grid; sllin.Parameters = params;
To calculate the openloop transfer function for the inner loop, use e2
and y2
as analysis points. To eliminate the effects of the outer loop, break the loop at e2
. Add e2
and y2
to sllin
as analysis points.
addPoint(sllin,{'e2','y2'})
Determine the index for the maximum values of Ki2
and Kp2
.
mdl_index = params(1).Value == max(Kp2_range) & params(2).Value == max(Ki2_range);
Obtain the openloop transfer function from e2
to y2
.
sys = getIOTransfer(sllin,'e2','y2','e2',mdl_index);
Open Simulink model.
mdl = 'scdcascade';
open_system(mdl)
Create a linearization option set, and set the StoreOffsets
option.
opt = linearizeOptions('StoreOffsets',true);
Create slLinearizer
interface.
sllin = slLinearizer(mdl,opt);
Add analysis points to calculate the closedloop transfer function.
addPoint(sllin,{'r','y1m'});
Calculate the input/output transfer function, and obtain the corresponding linearization offsets.
[sys,info] = getIOTransfer(sllin,'r','y1m');
View offsets.
info.Offsets
ans = struct with fields: x: [6x1 double] dx: [6x1 double] u: 1 y: 0 StateName: {6x1 cell} InputName: {'r'} OutputName: {'y1m'} Ts: 0
s
— Interface to Simulink^{®} modelslLinearizer
interface  slTuner
interfaceInterface to a Simulink model, specified as either an slLinearizer
interface or an slTuner
interface.
in
— Input analysis point signal nameInput analysis point signal name, specified as:
Character vector or string — Analysis point signal name.
To determine the signal name associated with an analysis point,
type s
. The software displays the contents of s
in
the MATLAB^{®} command window, including the analysis point signal
names, block names, and port numbers. Suppose that an analysis point
does not have a signal name, but only a block name and port number.
You can specify in
as the block name. To use
a point not in the list of analysis points for s
,
first add the point using addPoint
.
You can specify in
as a uniquely matching
portion of the full signal name or block name. Suppose that the full
signal name of an analysis point is 'LoadTorque'
.
You can specify in
as 'Torque'
as
long as 'Torque'
is not a portion of the signal
name for any other analysis point of s
.
For example, in = 'y1m'
.
Cell array of character vectors or string array —
Specifies multiple analysis point names. For example, in
= {'y1m','y2m'}
.
out
— Output analysis point signal nameOutput analysis point signal name, specified as:
Character vector or string — Analysis point signal name.
To determine the signal name associated with an analysis point,
type s
. The software displays the contents of s
in
the MATLAB command window, including the analysis point signal
names, block names, and port numbers. Suppose that an analysis point
does not have a signal name, but only a block name and port number.
You can specify out
as the block name. To use
a point not in the list of analysis points for s
,
first add the point using addPoint
.
You can specify out
as a uniquely matching
portion of the full signal name or block name. Suppose that the full
signal name of an analysis point is 'LoadTorque'
.
You can specify out
as 'Torque'
as
long as 'Torque'
is not a portion of the signal
name for any other analysis point of s
.
For example, out = 'y1m'
.
Cell array of character vectors or string array —
Specifies multiple analysis point names. For example, out
= {'y1m','y2m'}
.
temp_opening
— Temporary opening signal nameTemporary opening signal name, specified as:
Character vector or string — Analysis point signal name.
temp_opening
must specify an analysis point
that is in the list of analysis points for s
.
To determine the signal name associated with an analysis point, type s
.
The software displays the contents of s
in the MATLAB command
window, including the analysis point signal names, block names, and
port numbers. Suppose that an analysis point does not have a signal
name, but only a block name and port number. You can specify temp_opening
as
the block name. To use a point not in the list of analysis points
for s
, first add the point using addPoint
.
You can specify temp_opening
as a uniquely
matching portion of the full signal name or block name. Suppose that
the full signal name of an analysis point is 'LoadTorque'
.
You can specify temp_opening
as 'Torque'
as
long as 'Torque'
is not a portion of the signal
name for any other analysis point of s
.
For example, temp_opening = 'y1m'
.
Cell array of character vectors or string array —
Specifies multiple analysis point names. For example, temp_opening
= {'y1m','y2m'}
.
ios
— Linearization I/OsLinearization I/Os, created using linio
,
specified as a linearization I/O object.
ios
must specify signals that are in the
list of analysis points for s
. To view the list
of analysis points, type s
. To use a point that
is not in the list of analysis points for s
,
you must first add the point to the list using addPoint
.
For example:
ios(1) = linio('scdcascade/setpoint',1,'input'); ios(2) = linio('scdcascade/Sum',1,'output');
Here, ios(1)
specifies an input, and ios(2)
specifies
an output.
mdl_index
— Index for linearizations of interestIndex for linearizations of interest, specified as:
Array of logical values — Logical array index
of linearizations of interest. Suppose that you vary two parameters, par1
and par2
,
and want to extract the linearization for the combination of par1
> 0.5
and par2 <= 5
. Use:
params = s.Parameters; mdl_index = params(1).Value>0.5 & params(2).Value <= 5;
The expression params(1).Value>0.5 & params(2).Value<5
uses
logical indexing and returns a logical array. This logical array is
the same size as params(1).Value
and params(2).Value
.
Each entry contains the logical evaluation of the expression for corresponding
entries in params(1).Value
and params(2).Value
.
Vector of positive integers — Linear index
of linearizations of interest. Suppose that you vary two parameters, par1
and par2
,
and want to extract the linearization for the combination of par1
> 0.5
and par2 <= 5
. Use:
params = s.Parameters; mdl_index = find(params(1).Value>0.5 & params(2).Value <= 5);
The expression params(1).Value>0.5 & params(2).Value<5
returns
a logical array. find
returns
the linear index of every true entry in the logical array
linsys
— Transfer function for specified I/OsTransfer function for specified I/Os, returned as described in the following:
If you did not configure s.Parameters
and
s.OperatingPoints
, the software calculates
linsys
using the default model parameter values. The software
uses the model initial conditions as the linearization operating point.
linsys
is returned as a statespace model.
If you configured s.Parameters
only, the software computes a linearization
for each parameter grid point. linsys
is returned as a statespace
model array of the same size as the parameter grid.
If you configured s.OperatingPoints
only, the software computes a
linearization for each specified operating point. linsys
is
returned as a statespace model array of the same size as
s.OperatingPoints
.
If you configured s.Parameters
and specified
s.OperatingPoints
as a single operating point, the software
computes a linearization for each parameter grid point. The software uses the specified
operating point as the linearization operating point. linsys
is
returned as a statespace model array of the same size as the parameter grid.
If you configured s.Parameters
and specified
s.OperatingPoints
as multiple operating point objects, the
software computes a linearization for each parameter grid point. The software requires
that s.OperatingPoints
is the same size as the parameter grid
specified by s.Parameters
. The software computes each linearization
using corresponding operating points and parameter grid points.
linsys
is returned as a statespace model array of the same
size as the parameter grid.
If you configured s.Parameters
and specified
s.OperatingPoints
as multiple simulation snapshot times, the
software simulates and linearizes the model for each snapshot time and parameter grid
point combination. Suppose that you specify a parameter grid of size
p
and N
snapshot times.
linsys
is returned as a statespace model array of size
N
byp
.
info
— Linearization informationLinearization information, returned as a structure with the following fields:
Offsets
— Linearization offsets[]
(default)  structure  structure arrayLinearization offsets, returned as []
if
s.Options.StoreOffsets
is false
.
Otherwise, Offsets
is returned as one of the
following:
If linsys
is a single statespace model, then
Offsets
is a structure.
If linsys
is an array of statespace models,
then Offsets
is a structure array with the same
dimensions as linsys
.
Each offset structure has the following fields:
Field  Description

x  State offsets used for linearization, returned as a column vector of length
n_{x}, where
n_{x} is the number of states in
linsys .
y  Output offsets used for linearization, returned as a column vector of length
n_{y}, where
n_{y} is the number of outputs in
linsys .
u  Input offsets used for linearization, returned as a column vector of length
n_{u}, where
n_{u} is the number of inputs in
linsys .
dx  Derivative offsets for continuous time systems or updated state values for discretetime systems, returned as a column vector of length n_{x}.
StateName  State names, returned as a cell array that contains
n_{x} elements that match the names
in linsys.StateName .
InputName  Input names, returned as a cell array that contains
n_{u} elements that match the names
in linsys.InputName .
OutputName  Output names, returned as a cell array that contains
n_{y} elements that match the names
in linsys.OutputName .
Ts  Sample time of the linearized system, returned as a scalar that matches the sample time in
linsys.Ts . For continuoustime systems,
Ts is 0 .
If Offsets
is a structure array, you can
configure an LPV System block using
the offsets. To do so, first convert them to the required format using getOffsetsForLPV
. For an example, see Approximating Nonlinear Behavior Using an Array of LTI Systems.
Advisor
— Linearization diagnostic information[]
(default)  LinearizationAdvisor
object  array of LinearizationAdvisor
objectsLinearization diagnostic information, returned as []
if
s.Options.StoreAdvisor
is false
.
Otherwise, Advisor
is returned as one of the
following:
If linsys
is a single statespace model,
Advisor
is a LinearizationAdvisor
object.
If linsys
is an array of statespace models,
Advisor
is an array of LinearizationAdvisor
objects with the same dimensions
as linsys
.
LinearizationAdvisor
objects store linearization
diagnostic information for individual linearized blocks. For an example of
troubleshooting linearization results using a
LinearizationAdvisor
object, see Troubleshoot Linearization Results at Command Line.
A transfer function is an LTI system response at a linearization output point to a linearization input. You perform linear analysis on transfer functions to understand the stability, timedomain characteristics, or frequencydomain characteristics of a system.
You can calculate multiple transfer functions for a given block
diagram. Consider the ex_scd_simple_fdbk
model:
You can calculate the transfer function from the reference input
signal to the plant output signal. The reference input (also
referred to as setpoint), r
,
originates at the Reference block, and the plant
output, y
, originates at the G block.
This transfer function is also called the overall closedloop transfer
function. To calculate this transfer function, the software adds a
linearization input at r
, dr
,
and a linearization output at y
.
The software calculates the overall closedloop transfer function
as the transfer function from dr
to y
,
which is equal to (I+GK)^{1}GK.
Observe that the transfer function from r
to y
is
equal to the transfer function from dr
to y
.
You can calculate the plant transfer function from
the plant input, u
, to the plant output, y
.
To isolate the plant dynamics from the effects of the feedback loop,
introduce a loop break (or opening) at y
, e
,
or, as shown, at u
.
The software breaks the loop and adds a linearization input, du
,
at u
, and a linearization output at y
.
The plant transfer function is equal to the transfer function from du
to y
,
which is G.
Similarly, to obtain the controller transfer function,
calculate the transfer function from the controller input, e
,
to the controller output, u
. Break the feedback
loop at y
, e
, or u
.
You can use getIOTransfer
to obtain various
openloop and closedloop transfer functions. To configure the transfer
function, specify analysis
points as inputs, outputs, and openings (temporary or permanent), in
any combination. The software treats each combination uniquely. Consider
the following code that shows some different ways that you can use
the analysis point, u
, to obtain a transfer function:
sllin = slLinearizer('ex_scd_simple_fdbk') addPoint(sllin,{'u','e','y'}) T0 = getIOTransfer(sllin,'e','y','u'); T1 = getIOTransfer(sllin,'u','y'); T2 = getIOTransfer(sllin,'u','y','u'); T3 = getIOTransfer(sllin,'y','u'); T4 = getIOTransfer(sllin,'y','u','u'); T5 = getIOTransfer(sllin,'u','u'); T6 = getIOTransfer(sllin,'u','u','u');
In T0
, u
specifies a loop
break. In T1
, u
specifies only
an input, whereas in T2
, u
specifies
an input and an opening, also referred to as an openloop
input. In T3
, u
specifies
only an output, whereas in T4
, u
specifies
an output and an opening, also referred to as an openloop
output. In T5
, u
specifies
an input and an output, also referred to as a complementary
sensitivity point. In T6
, u
specifies
an input, an output, and an opening, also referred to as a loop
transfer point. The table describes how getIOTransfer
treats
the analysis points, with an emphasis on the different uses of u
.
u Specifies...  How getIOTransfer Treats
Analysis Points  Transfer Function

Loop break Example code: T0 = getIOTransfer(sllin,'e','y','u')
The software
stops the signal flow at
$$\begin{array}{l}y=G0\hfill \\ \to y=\underset{{T}_{0}}{\underbrace{0}}\hfill \end{array}$$
Input Example code: T1 = getIOTransfer(sllin,'u','y')
The software
adds a linearization input,
$$\begin{array}{l}y=G(duKy)\\ \to y=GduGKy\\ \to (I+GK)y=Gdu\\ \to y=\underset{{T}_{1}}{\underbrace{{(I+GK)}^{1}G}}du\end{array}$$
Openloop input Example code: T2 = getIOTransfer(sllin,'u','y','u')
The software
breaks the signal flow and adds a linearization input,
$$\begin{array}{l}y=G(du+0)\hfill \\ \to y=\underset{{T}_{2}}{\underbrace{G}}du\hfill \end{array}$$
Output Example code: T3 = getIOTransfer(sllin,'y','u')
The software
adds a linearization input,
$$\begin{array}{l}u=K(dy+Gu)\\ \to u=KdyKGu\\ \to (I+KG)u=Kdy\\ \to u=\underset{{T}_{3}}{\underbrace{{(I+KG)}^{1}K}}dy\end{array}$$
Openloop output Example code: T4 = getIOTransfer(sllin,'y','u','u')
The software
adds a linearization input,
$$\begin{array}{l}u=K(dy+G0)\hfill \\ \to u=\underset{{T}_{4}}{\underbrace{K}}dy\hfill \end{array}$$
Complementary sensitivity point Example code: T5 = getIOTransfer(sllin,'u','u') TipYou also can obtain the complementary sensitivity function
using
The software
adds a linearization output and a linearization input,
$$\begin{array}{l}u=KG(du+u)\hfill \\ \to u=KGduKGu\hfill \\ \to (I+KG)u=KGdu\hfill \\ \to u=\underset{{T}_{5}}{\underbrace{{(I+KG)}^{1}KG}}du\hfill \end{array}$$
Loop transfer function point Example code: T6 = getIOTransfer(sllin,'u','u','u') TipYou also can obtain the loop transfer function using

The software
adds a linearization output, breaks the loop, and adds a linearization
input,
$$\begin{array}{l}u=KG(du+0)\\ \to u=\underset{{T}_{6}}{\underbrace{KG}}du\end{array}$$
The software does not modify the Simulink model when it computes the transfer function.
Analysis points, used
by the slLinearizer
and slTuner
interfaces,
identify locations within a model that are relevant for linear analysis
and control system tuning. You use analysis points as inputs to the
linearization commands, such as getIOTransfer
, getLoopTransfer
, getSensitivity
, and getCompSensitivity
. As inputs to the
linearization commands, analysis points can specify any openloop
or closedloop transfer function in a model. You can also use analysis
points to specify design requirements when tuning control systems
using commands such as systune
.
Location refers to a specific block output port within a model or to a bus element in such an output port. For convenience, you can use the name of the signal that originates from this port to refer to an analysis point.
You can add analysis points to an slLinearizer
or slTuner
interface, s
,
when you create the interface. For example:
s = slLinearizer('scdcascade',{'u1','y1'});
Alternatively, you can use the addPoint
command.
To view all the analysis points of s
, type s
at
the command prompt to display the interface contents. For each analysis
point of s
, the display includes the block name
and port number and the name of the signal that originates at this
point. You can also programmatically obtain a list of all the analysis
points using getPoints
.
For more information about how you can use analysis points, see Mark Signals of Interest for Control System Analysis and Design and Mark Signals of Interest for Batch Linearization.
Permanent openings,
used by the slLinearizer
and slTuner
interfaces,
identify locations within a model where the software breaks the signal
flow. The software enforces these openings for linearization and tuning.
Use permanent openings to isolate a specific model component. Suppose
that you have a largescale model capturing aircraft dynamics and
you want to perform linear analysis on the airframe only. You can
use permanent openings to exclude all other components of the model.
Another example is when you have cascaded loops within your model
and you want to analyze a specific loop.
Location refers to a specific block output port within a model. For convenience, you can use the name of the signal that originates from this port to refer to an opening.
You can add permanent openings to an slLinearizer
or slTuner
interface, s
,
when you create the interface or by using the addOpening
command. To remove a location
from the list of permanent openings, use the removeOpening
command.
To view all the openings of s
, type s
at
the command prompt to display the interface contents. For each permanent
opening of s
, the display includes the block name
and port number and the name of the signal that originates at this
location. You can also programmatically obtain a list of all the permanent
loop openings using getOpenings
.
addOpening
 addPoint
 getCompSensitivity
 getLoopTransfer
 getSensitivity
 slLinearizer
 slTuner
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
Select web siteYou can also select a web site from the following list:
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
