Calibrate Cameras

Camera calibration is the process of estimating camera parameters by using images that contain a calibration pattern. The parameters include camera intrinsics, distortion coefficients, and camera extrinsics. Use these camera parameters to remove lens distortion effects from an image, measure planar objects, reconstruct 3-D scenes from multiple cameras, and perform other computer vision applications.

Click an illustration to view its topic.

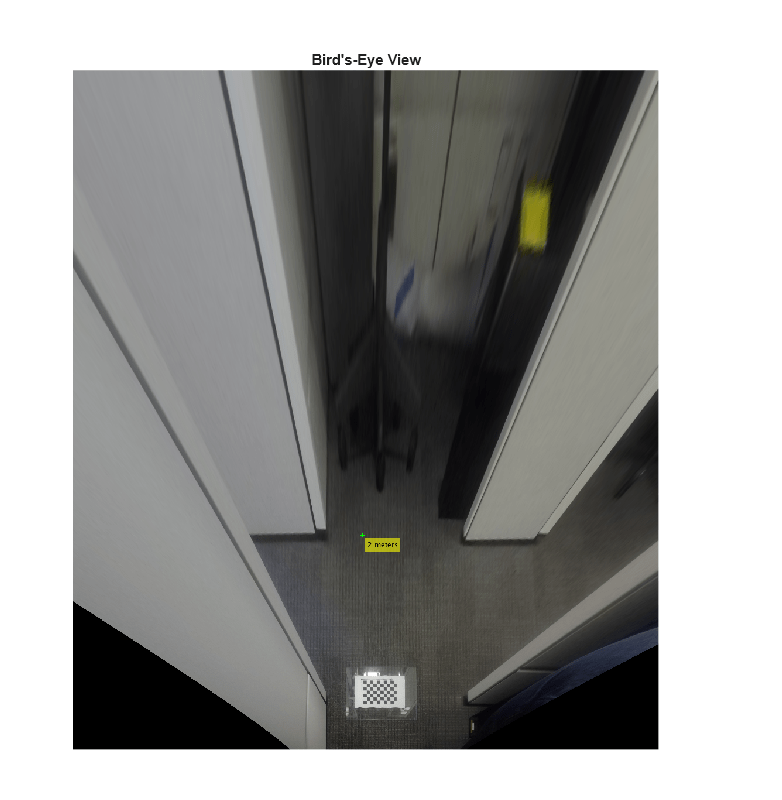

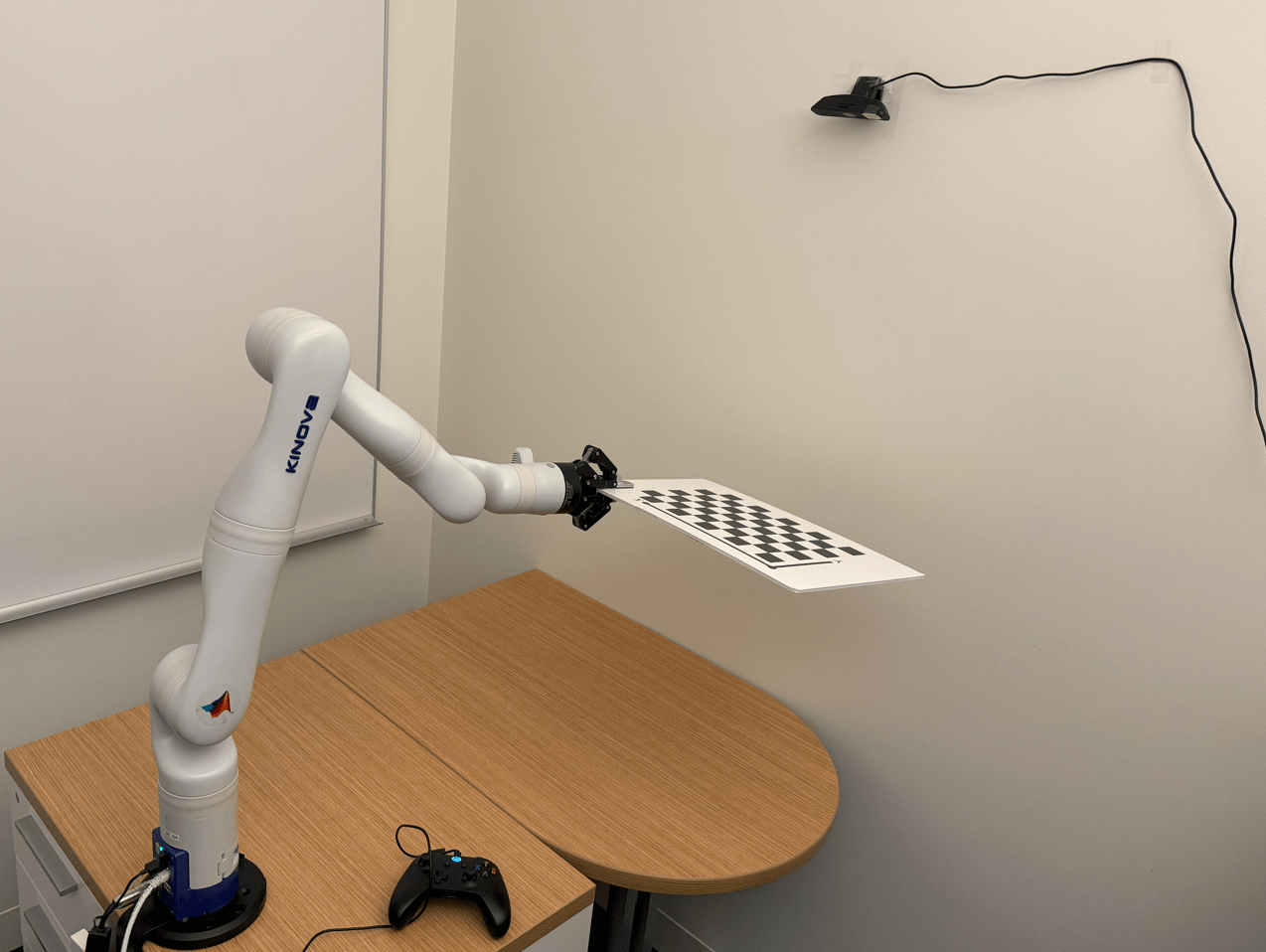

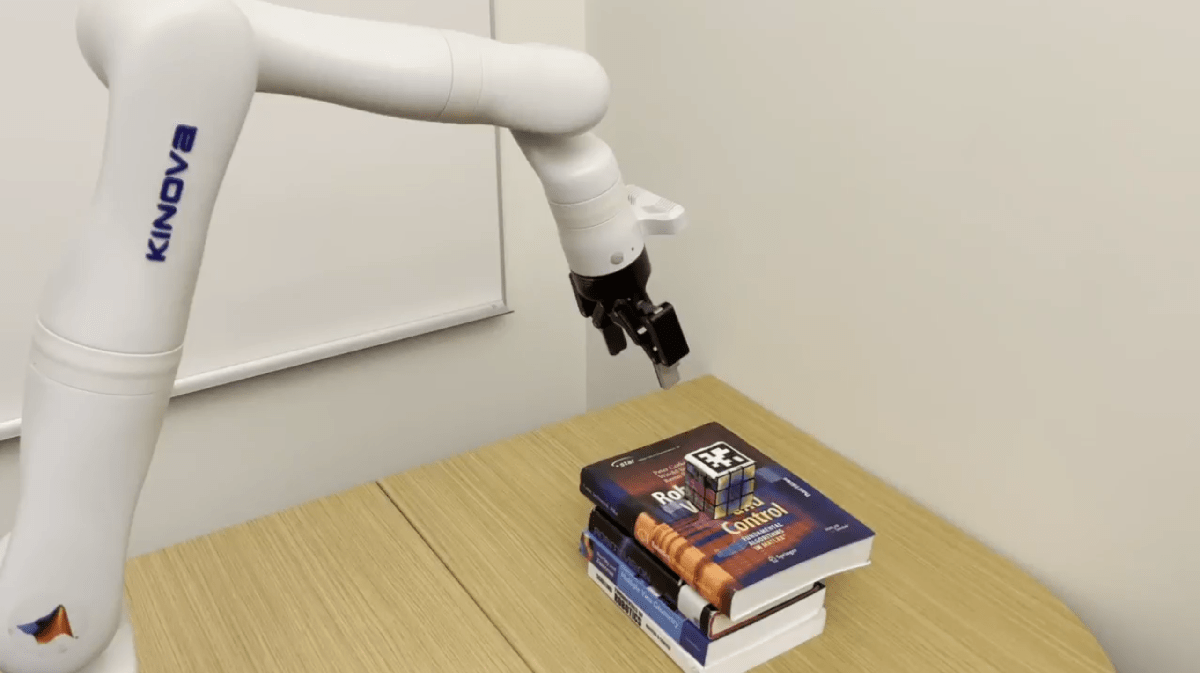

Fisheye camera calibration extends this process by estimating parameters and distortion coefficients specific to fisheye lenses, which is essential for correcting extreme distortion and accurately mapping image points to real-world coordinates in applications such as SLAM, odometry, surveillance, VR, and image stitching. Multi-camera calibration ensures that all cameras in a system share a consistent understanding of scene geometry, enabling tasks like 3-D motion capture, reconstruction, and photogrammetry, while robot hand-eye calibration determines the spatial relationship between a robot arm and a camera for precise visual servoing and interaction. You can use the Camera Calibrator app and functions for single-camera intrinsics, extrinsics, and distortion, the Stereo Camera Calibrator app and functions for stereo parameters and relative orientations, and dedicated fisheye calibration functions for distortion removal and accurate wide-angle 3-D reconstruction.
